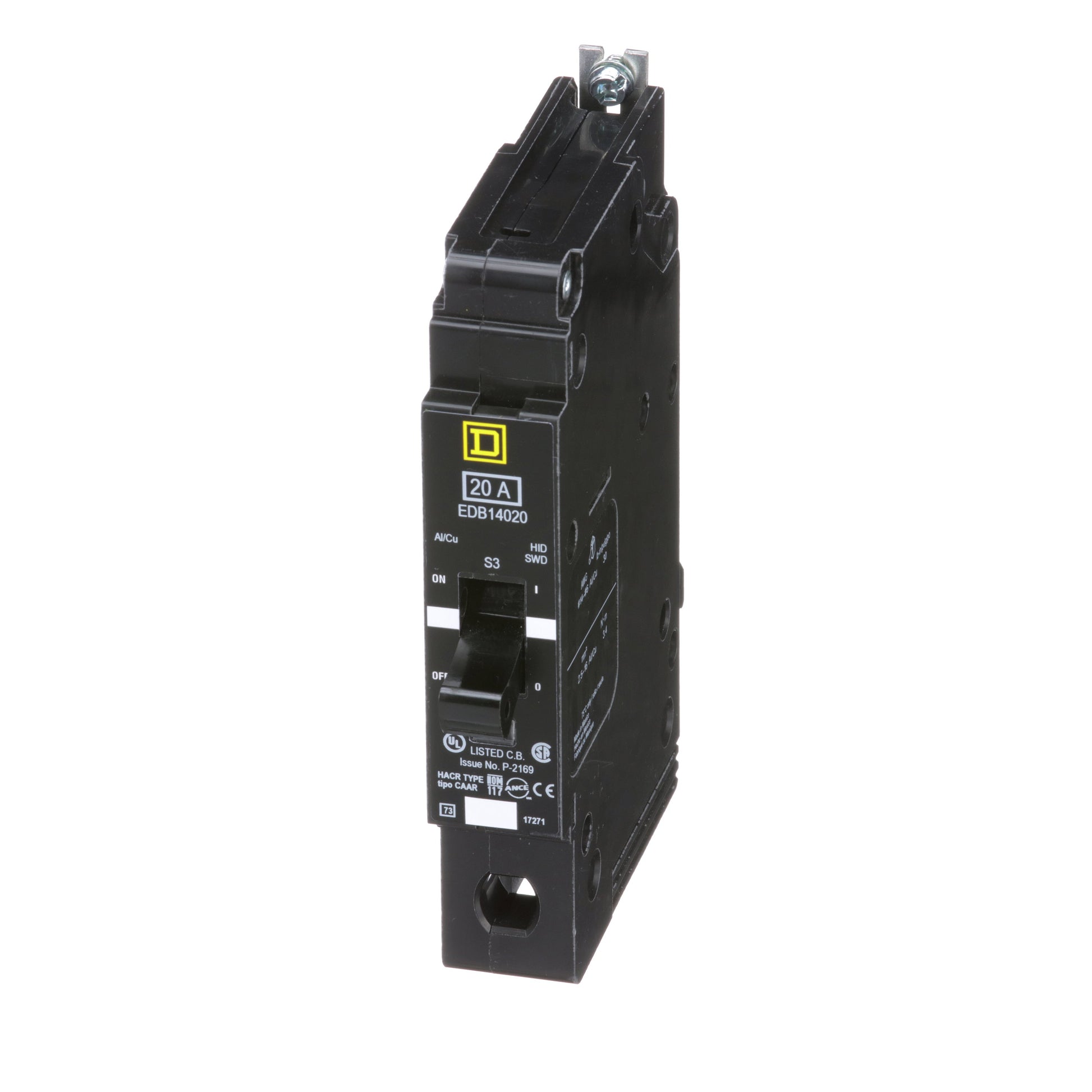

EDB14020 - Schneider Electric (Square D) 1-Pole 20 A 480Y/277 V AC Bolt-On Circuit Breaker, Type EDB

(No Ratings)
SKU: EDB14020
Price: Request a Quote
Free shipping on orders over $1,500

Description

Product Overview

EDB14020 is a Square D (Schneider Electric) Type EDB bolt‑on circuit breaker with a single pole and a 20 ampere rating for 480Y/277 V AC systems.

This listing covers the single SKU EDB14020. Verify model and quantity before ordering; request a quote for pricing and availability.

Key Features

  • Single‑pole (1P) configuration
  • 20 A ampere rating
  • Rated for 480Y/277 V AC systems
  • Bolt‑on mounting (Type EDB family)

Function and intended use

The EDB14020 is a single‑pole bolt‑on circuit breaker intended to provide overcurrent protection for a single circuit conductor in applications using the specified system voltage.

  • Single‑pole protective device for one circuit conductor
  • Provides overcurrent interruption for branch circuits (as a circuit breaker)

Electrical ratings

The listed electrical ratings for this model are 20 A ampere rating and a voltage designation of 480Y/277 V AC. These indicate the breaker’s nominal ampacity and the system voltage it is specified for.

  • Ampere rating: 20 A
  • Voltage rating: 480Y/277 V AC

Mounting style and mechanical fit

EDB14020 is described as a bolt‑on style breaker in Square D’s Type EDB family. Bolt‑on breakers attach to a panel or enclosure using bolts; confirm the panel’s compatibility and bolt pattern before specifying.

  • Mounting: bolt‑on (Type EDB family)
  • Confirm physical and panel compatibility prior to ordering or installation

Ordering and confirmation

This page covers the single SKU EDB14020. Verify the model number and quantity required. Contact Lumera Electric to request a quote for pricing and availability.

  • SKU: EDB14020
  • Request a quote for pricing and availability

Before You Order

Verify the model number (EDB14020), required quantity, and that a Type EDB bolt‑on breaker is compatible with your panel or enclosure. Request a quote for pricing and availability.

  • Confirm panel compatibility with Type EDB bolt‑on breakers
  • Confirm system voltage (480Y/277 V AC) and required ampacity (20 A)
  • Contact Lumera Electric to request a quote

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EDB14020 - Schneider Electric (Square D) 1-Pole 20 A 480Y/277 V AC Bolt-On Circuit Breaker, Type EDB. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandSchneider Electric (Square D)
SKUEDB14020
Series / TypeEDB (bolt‑on)
Poles1
Ampere Rating20 A
Rated Voltage480Y/277 V AC
Mounting TypeBolt‑on
ConditionNew
