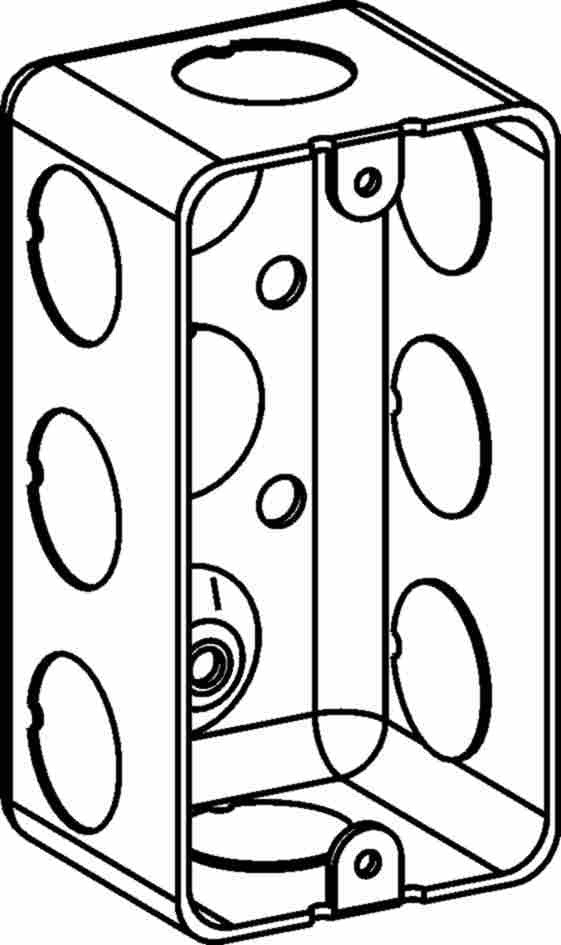

Orbit 1-Gang 1-7/8 in Drawn Handy Box DHB150
Description
Product Overview
The Orbit DHB150 is a 1-gang drawn handy box with a 1-7/8 in depth, manufactured from pre-galvanized steel for electrical rough-in, device and junction box applications.
DHB150 includes 1/2 in knockouts and is intended for dry locations; it carries UL and RoHS listings. Confirm project requirements and local codes before installation.
Key Features
- 1-gang drawn handy box, 1-7/8 in depth
- Pre-galvanized steel construction with galvanized finish
- 1/2 in knockouts for conduit or cable entry
- Designed for electrical rough-in, device and junction box installations
- UL and RoHS certifications; rated for dry locations
What this box is for
The Orbit DHB150 is intended as a 1-gang device or junction box for electrical rough-in work. It provides a compact enclosure for switches, receptacles, or splices in commercial and new-construction settings.
- Common uses: device box installation, junction box, contractor stock, facility maintenance
- Suited for electrical rough-in and new construction projects
Dimensions and construction
DHB150 is a drawn handy box sized for one gang with a depth of 1-7/8 inches. The box is formed from pre-galvanized steel and finished galvanized for corrosion resistance in typical indoor environments.
- Gang: 1-gang
- Depth: 1-7/8 in
- Material: pre-galvanized steel
- Finish: galvanized
Knockouts and connections
The DHB150 includes 1/2 inch knockouts to accept standard trade-size cable or conduit fittings. Use appropriate connectors and follow conduit/cable fill rules when planning wiring entries.
- Knockouts: 1/2 in
- Mounting type: electrical box installation (use compatible device/cover and fasteners)
Safety listings and location rating
Orbit DHB150 carries UL and RoHS markings and is rated for dry location installations. Confirm that these ratings meet project and local code requirements before use.
- Certifications: UL, RoHS
- Location rating: dry location
Applications and installation notes
Use the DHB150 where a standard 1-gang, shallow-depth box is required. Installation should be performed by qualified electrical personnel and coordinated with project drawings and local electrical codes.
- Typical applications: commercial construction, new construction, repair or replacement, contractor stock
- Confirm model number, trade size, mounting method, and local code requirements before ordering or installing
Before You Order
Confirm the model number (DHB150), gang count, depth, knockout size, and that a 1-gang drawn handy box meets your project requirements before ordering. Ensure installation is performed by qualified personnel and complies with local codes.
- Verify compatibility with devices, covers, conduit, and project drawings
- Confirm mounting method and required fasteners for your application
- Confirm the quantity needed and that DHB150 matches site conditions
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Orbit 1-Gang 1-7/8 in Drawn Handy Box DHB150. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Orbit |
|---|---|
| SKU | DHB150 |
| Product Type | Drawn Handy Box |
| Gang | 1-gang |
| Depth | 1-7/8 in |
| Knockouts | 1/2 in knockouts |
| Material | Pre-galvanized steel |
| Finish | Galvanized |
| Location Rating | Dry location |
| Certifications | UL, RoHS |
| Catalog Page | A31 |
