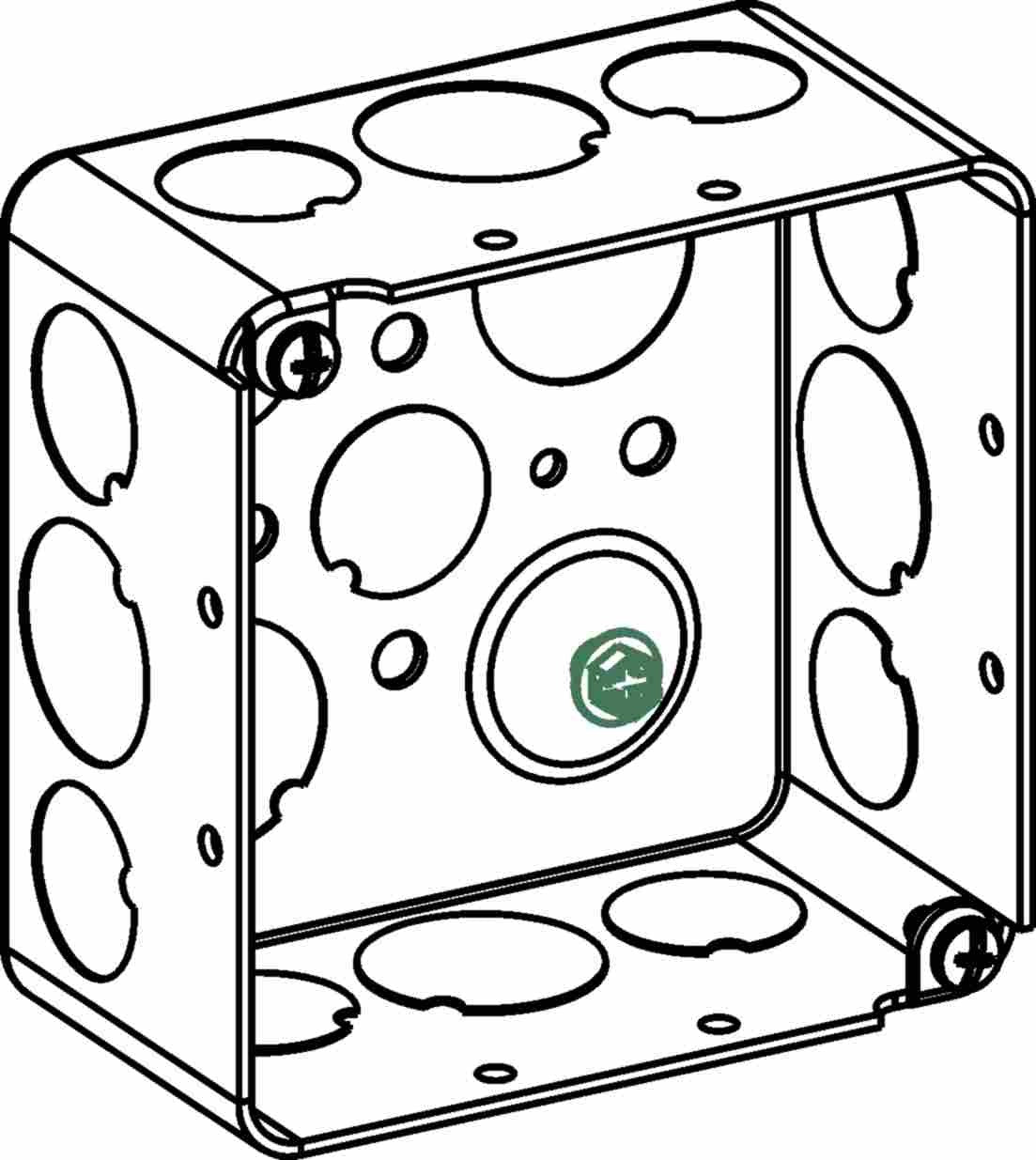

Orbit 4S Square Box Format 2-1/8 in 4S Drawn Steel Box D4SDB-5075
Description
Product Overview
The Orbit D4SDB-5075 is a 4S drawn steel electrical box in the 4S square format with a 2-1/8 in depth suited for electrical rough-in, junctions, and mounting devices in dry locations.
Constructed of pre-galvanized steel with combined 1/2 in and 3/4 in knockouts, the D4SDB-5075 provides a clear catalog reference for specifying box size and configuration.
Key Features
- 4S square box format
- 2-1/8 in depth
- Combined 1/2 in and 3/4 in knockouts
- Pre-galvanized steel construction (galvanized finish)
- Drawn box construction
- Listed: UL and RoHS (per product data)
Function and common uses
The Orbit D4SDB-5075 is a drawn steel 4S box intended for electrical rough-in, junctions, and mounting devices where a 4S square box format and 2-1/8 in depth are required.
- Typical applications: electrical rough-in, junction box, device box, contractor stock
- Location rating provided in product data: dry location
Dimensions and box format
This SKU uses the 4S square box format with a depth of 2-1/8 inches as shown in the product data.
- Format: 4S square box
- Depth: 2-1/8 in
Knockouts and entry options
The box includes combined 1/2 in and 3/4 in knockouts as listed in the product data; verify fit with your chosen conduit, fittings, or cable methods.
- Knockouts: combined 1/2 in and 3/4 in
Material, finish and ratings
Per the product data, the D4SDB-5075 is made from pre-galvanized steel with a galvanized finish and lists UL and RoHS.
- Material: pre-galvanized steel
- Finish: galvanized
- Certifications listed in product data: UL, RoHS
Installation and ordering checks
Confirm the model number, required quantity, and that the 4S format and 2-1/8 in depth meet your device and installation needs before ordering. Installation should be performed in accordance with project drawings and applicable codes.
- Verify catalog number, trade size, and mounting method before ordering
- Check knockout sizes and box compatibility with project drawings
Before You Order
Confirm the model number, quantity, and that the 4S format and 2-1/8 in depth meet your device and installation needs.
- Check knockout sizes and box/conduit compatibility with project drawings
- Ensure installation will follow applicable local codes and be performed by qualified personnel
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Orbit 4S Square Box Format 2-1/8 in 4S Drawn Steel Box D4SDB-5075. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Orbit |
|---|---|
| SKU | D4SDB-5075 |
| Product type | 4S Drawn Steel Box |
| Format / Dimensions | 4S square box format, 2-1/8 in depth |
| Knockouts | Combined 1/2 in and 3/4 in |
| Material | Pre-galvanized steel |
| Finish | Galvanized |
| Location rating | Dry location |
| Certifications | UL, RoHS |
| Manufacturer part number | D4SDB-5075 |
