Orbit 5S Low-Voltage Box Partition Flat to 1 in Rings 5SDP-100

(No Ratings)
SKU: 5SDP-100
Price: $6.96
Free shipping on orders over $1,500

Description

Product Overview

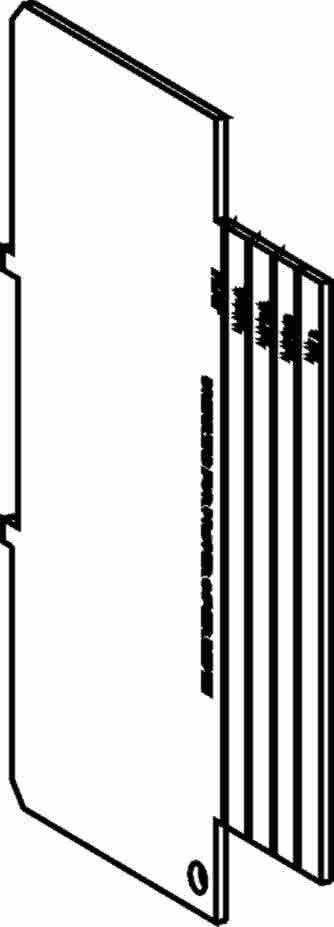

The Orbit 5SDP-100 is a galvanized sheet-steel low-voltage partition designed for 5S square electrical boxes. It provides a divider to separate low-voltage wiring from power compartments.

This partition is specified for 5S family boxes with 2-1/8 in depth and matches flat to 1 in rings. It uses a breakaway tab style for field installation and is rated for dry locations.

Key Features

  • 5S square box low-voltage partition (Model/SKU: 5SDP-100)
  • Fits 2-1/8 in deep 5S boxes
  • Compatible with flat to 1 in rings
  • Separates low-voltage and power compartments
  • Breakaway tab style for field installation
  • Galvanized sheet steel construction
  • Location rating: dry
  • Certifications listed: UL, RoHS

What this partition does

The Orbit 5SDP-100 provides a physical divider inside a 5S square box to keep low-voltage wiring separate from power compartments.

  • Creates separate compartments inside a 5S box for low-voltage and power wiring
  • Intended for use where a divider is required for multi-system junctions

Box and ring compatibility

This SKU is specified for the 5S box family and matches flat to 1 in rings. Confirm the host box is a 5S size with 2-1/8 in depth for correct fit.

  • Box family: 5S
  • Ring compatibility: flat to 1 in rings
  • Referenced box depth: 2-1/8 in

Installation and field notes

The partition installs using a breakaway tab style to permit field installation. Installation should be performed by qualified electrical personnel and checked against local electrical code and project drawings.

  • Breakaway tab for field installation
  • Verify catalog number, box size, depth, opening, knockout pattern, rating, and mounting method before ordering
  • Follow local electrical code and project requirements during installation

Materials and environmental rating

Constructed from galvanized sheet steel, the 5SDP-100 is described for dry-location installations and has a galvanized finish.

  • Material: galvanized sheet steel
  • Finish: galvanized
  • Location rating: dry

Technical specifications

Quick reference for SKU and core product attributes.

  • Brand: Orbit
  • Model / SKU: 5SDP-100
  • Product type: 5S Low-Voltage Partition
  • Mounting type: 5S square box partition installation
  • Certifications listed: UL, RoHS

Before You Order

Confirm the model number and that the host box is a 5S family box with the referenced 2-1/8 in depth before ordering.

  • Verify box size and depth and ensure the intended face ring is within the flat to 1 in range
  • Have qualified electrical personnel install the partition and verify compliance with local electrical code

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit 5S Low-Voltage Box Partition Flat to 1 in Rings 5SDP-100. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandOrbit
SKU5SDP-100
Product Type5S Low-Voltage Partition
Box Family5S
Ring CompatibilityFlat to 1 in rings
Box Depth2-1/8 in
MaterialGalvanized sheet steel
FinishGalvanized
Mounting Type5S square box partition installation
Location RatingDry location
CertificationsUL, RoHS
