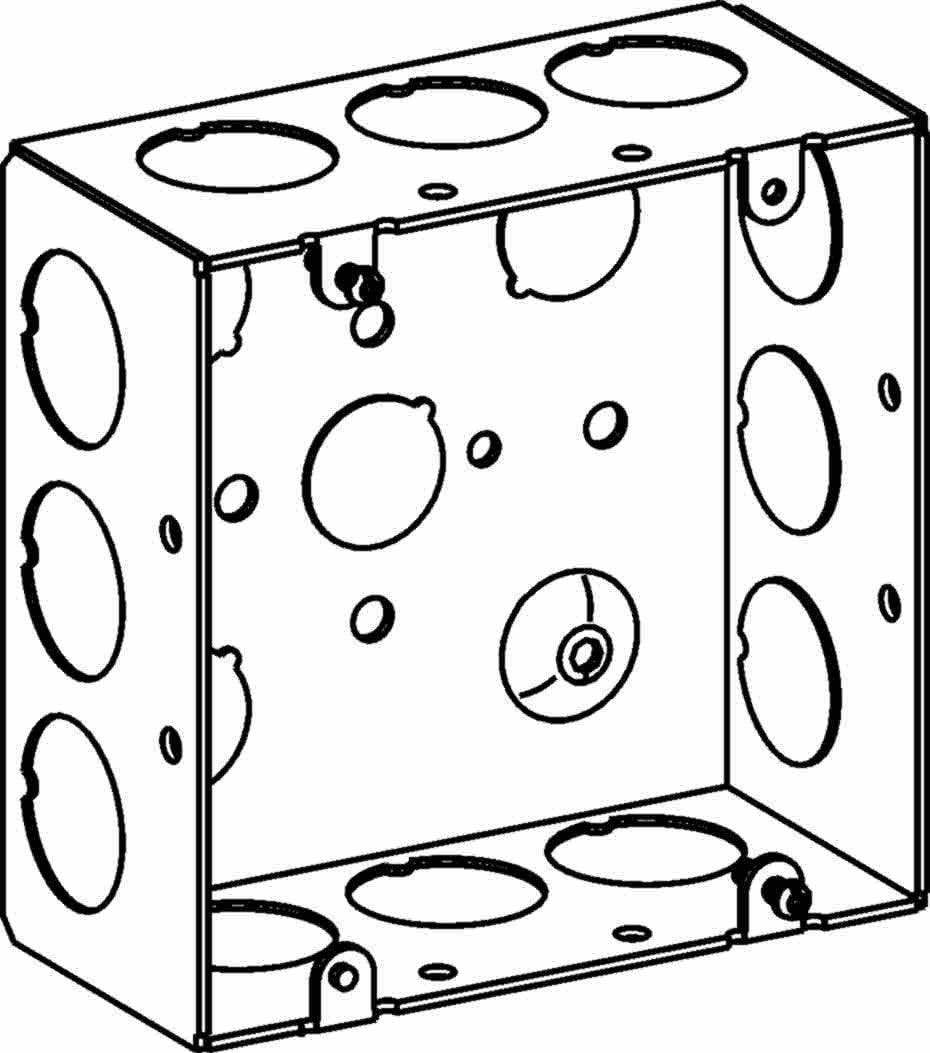

Orbit 4-11/16 in W X 4-11/16 in H 2-1/8 in Deep 5S Square Steel Box 3/4 in Knockouts 5SDB-75
Description
Product Overview
The Orbit 5SDB-75 is a 5S square welded steel electrical box sized 4-11/16 in W x 4-11/16 in H with a 2-1/8 in deep body and 3/4 in knockouts.
Constructed from 16 gauge galvanized sheet steel, the box provides 42.0 cubic inches of capacity and is specified for dry location installations and typical ceiling, wall, stud, or rough-in mounting.
Key Features
- Dimensions: 4-11/16 in W x 4-11/16 in H; depth 2-1/8 in
- Cubic capacity: 42.0 cu in
- Knockouts: 3/4 in
- Material and finish: 16 gauge galvanized sheet steel; welded construction
- Mounting: for ceiling, wall, stud, or rough-in box installation
- Certifications listed: UL and RoHS
What this box is used for
A 5S square steel box sized to match a 4-11/16 in by 4-11/16 in opening for standard device or fixture rough-in and replacement applications.
- Common applications include switch and receptacle installations, lighting fixture mounting, and general wall or ceiling electrical boxes.
- Intended for contractor stock, rough-in, and facility maintenance where this size and configuration are required.
Dimensions and cubic capacity
Answer: the box measures 4-11/16 in wide by 4-11/16 in high with a 2-1/8 in deep body and provides 42.0 cubic inches of internal volume.
- Face dimensions: 4-11/16 in W x 4-11/16 in H
- Depth: 2-1/8 in
- Cubic capacity: 42.0 cu in
Construction and finish
Answer: the 5SDB-75 is fabricated from 16 gauge sheet steel with a galvanized finish and welded box construction.
- Material: 16 gauge sheet steel
- Finish: Galvanized
- Construction: Welded steel box
Mounting, knockouts, and installation notes
Answer: the box includes 3/4 in knockouts and is provided for mounting in ceiling, wall, stud, or other rough-in configurations.
- Knockouts: 3/4 in
- Mounting types: Ceiling, wall, stud, or rough-in box installation
- Installation should be performed in accordance with local electrical code and by qualified personnel
Certifications and ratings
Answer: the product listing provides UL and RoHS designations and specifies a dry location rating.
- Location rating: Dry location (as provided)
- Certifications: UL, RoHS (as provided in product data)
Before You Order
Confirm the model number and quantity required before ordering; verify the box size, depth, knockout pattern, and location rating against job drawings and local electrical code.
- Confirm SKU: 5SDB-75
- Verify 3/4 in knockouts and 42.0 cu in capacity meet your device and wire-fill needs
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Orbit 4-11/16 in W X 4-11/16 in H 2-1/8 in Deep 5S Square Steel Box 3/4 in Knockouts 5SDB-75. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Orbit |
|---|---|
| SKU | 5SDB-75 |
| Product type | 5S Square Steel Box |
| Dimensions (W × H) | 4-11/16 in x 4-11/16 in |
| Depth | 2-1/8 in |
| Box Volume | 42.0 cu in |
| Knockouts | 3/4 in |
| Material | 16 gauge sheet steel |
| Finish | Galvanized |
| Mounting type | Ceiling, wall, stud, or rough-in box installation |
| Location rating | Dry location |
| Certifications | UL, RoHS |
