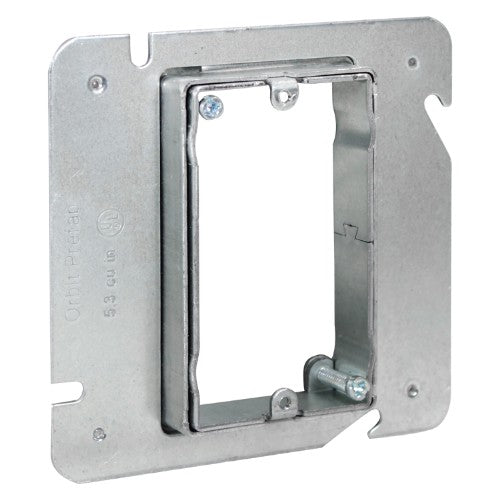

Orbit 1-Gang 5S Adjustable Ring 5/8 in to 1-1/4 in 5AR1G-58

(No Ratings)
SKU: 5AR1G-58
Price: $7.76
Free shipping on orders over $1,500

Description

Product Overview

The Orbit 5AR1G-58 is a 1-gang 5S adjustable device ring that adjusts from 5/8 in to 1-1/4 in to accommodate finished-wall depth differences. It is constructed from 16‑gauge galvanized sheet steel and intended for dry-location installations.

This field-adjustable ring fits 5S square box openings and provides a flush finish adjustment for rough‑in, replacement, remodel, and maintenance applications.

Key Features

  • 1-gang 5S adjustable device ring
  • Adjustable depth range: 5/8 in to 1-1/4 in
  • 16 gauge galvanized steel construction
  • Flush finish adjustment for finished walls
  • Fits 5S square boxes
  • Certifications listed: UL and RoHS

What this ring does

The Orbit 5AR1G-58 provides a field-adjustable device ring for 5S square electrical boxes, allowing the device opening to be set between 5/8 inch and 1-1/4 inch from the box face to achieve a flush mounting surface for switches, receptacles, and cover plates.

  • Intended for 1-gang device openings
  • Adjusts finished-wall setback without replacing the box

Where to use the 5AR1G-58

Suitable for installations where finished-wall thickness requires adjusting the device setback, such as rough-in, remodel, tile work, replacement ring tasks, and general facility maintenance in dry locations.

  • Finished-wall depth correction
  • Remodel and replacement ring work
  • Commercial and residential rough-in where 5S boxes are used

Key specifications and materials

Use these product facts for specification and ordering purposes.

  • Brand: Orbit
  • Model / SKU: 5AR1G-58
  • Product type: 5S adjustable ring
  • Gang count: 1-gang
  • Depth range: 5/8 in to 1-1/4 in
  • Material: 16 gauge sheet steel
  • Finish: Galvanized
  • Mounting: 5S adjustable ring mount
  • Location rating: Dry location
  • Certifications: UL, RoHS

Installation and compatibility notes

Installation should be performed by qualified electrical personnel and verified against local codes and project drawings. Confirm box size, knockout pattern, mounting method, and required finished-wall depth before ordering to ensure compatibility.

  • Fits standard 5S square box openings configured for 1-gang devices
  • Intended for dry-location use
  • Verify model/SKU and site conditions before installation

Before You Order

Confirm model/SKU, box size, and finished-wall thickness to ensure the 5/8 in to 1-1/4 in adjustment range and 5S mounting are appropriate.

  • Verify 5S square box compatibility and 1-gang device requirements
  • Confirm finished-wall thickness falls within the 5/8 in to 1-1/4 in adjustment range
  • Provide SKU 5AR1G-58 when ordering to avoid mis-picks

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit 1-Gang 5S Adjustable Ring 5/8 in to 1-1/4 in 5AR1G-58. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandOrbit
SKU5AR1G-58
Product Type5S Adjustable Ring
Gang1-gang
Depth Range5/8 in to 1-1/4 in
Material16 gauge sheet steel
FinishGalvanized
Mounting Type5S adjustable ring mount
Location RatingDry location
CertificationsUL, RoHS
