Orbit 4 in Square 2-1/8 in Deep 4S Square Steel Box 1/2 in and 3/4 in Mixed Knockouts Back Mounting Plate With Pigtail 4SDB-BP

(No Ratings)
SKU: 4SDB-BP
Price: $8.44
Free shipping on orders over $1,500

Description

Product Overview

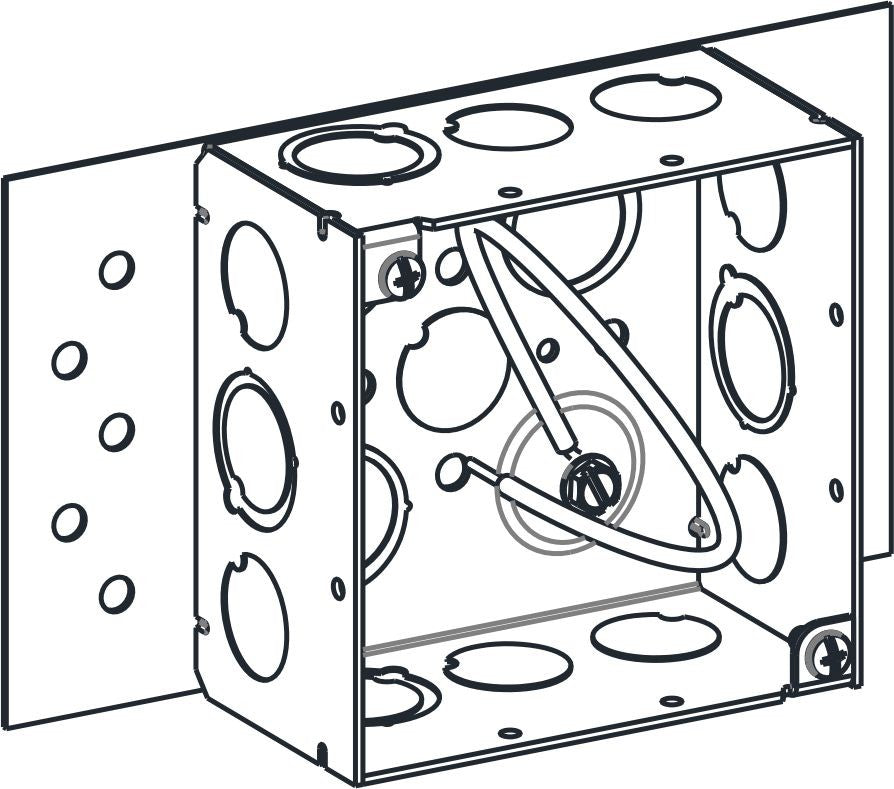

Orbit 4SDB-BP is a welded, galvanized 4 in square deep 4S steel box for commercial switch, receptacle, fixture and junction box rough-in.

The box measures 4 in W x 4 in H x 2-1/8 in deep with 30.3 cu in capacity, 1/2 in and 3/4 in mixed knockouts, a back mounting plate, and an included grounding pigtail.

Key Features

  • 4 in square welded box; 2-1/8 in depth (4 in W x 4 in H x 2-1/8 in)
  • 30.3 cubic inch box volume
  • 1/2 in and 3/4 in mixed knockouts
  • Back mounting plate
  • Grounding pigtail included
  • 16-gauge galvanized sheet steel construction
  • Certifications: UL and RoHS (UL File E227970)
  • Location rating: Dry location

What this box is used for

The Orbit 4SDB-BP is intended for commercial electrical rough-in where a 4 in square 4S box is required. It is suitable for switches, receptacles and general junction or fixture junction use in new construction, service, or maintenance work.

  • Common uses: switch and receptacle rough-in, junctions, commercial wall and ceiling wiring
  • Appropriate for contractor stock and new construction projects

Dimensions and box volume

This SKU measures 4 in wide x 4 in high with a depth of 2-1/8 in and provides 30.3 cubic inches of internal volume.

Use the stated box volume and dimensions to verify box-fill calculations and to confirm device and cable fit before installation.

  • Exterior dimensions: 4 in W x 4 in H x 2-1/8 in D
  • Internal capacity: 30.3 cu in

Knockouts, mounting and grounding

The 4SDB-BP includes mixed 1/2 in and 3/4 in knockouts. It is supplied with a back mounting plate for back-of-box mounting and includes a grounding pigtail.

Confirm the knockout pattern and chosen connector or clamp type for your installation before ordering.

  • Knockouts: 1/2 in and 3/4 in mixed
  • Mounting: back mounting plate (4S square box rough-in mount)
  • Grounding: pigtail included

Materials and certifications

The box is fabricated from 16-gauge galvanized sheet steel and manufactured by welding.

Certifications listed for this SKU include UL and RoHS; the listing references UL File E227970.

  • Material: 16 GA sheet steel
  • Finish: galvanized
  • Manufacturing: welded
  • Certifications: UL, RoHS (UL File E227970)
  • Location rating: dry location

Ordering and installation notes

Select this box when a 4 in square deep 4S box with the listed knockouts and mounting plate meets project needs. Installation should be performed by qualified electrical personnel who verify grounding, box-fill requirements and local electrical code compliance.

  • Confirm model number, depth, knockout pattern, clamp/connector type and mounting plate style before ordering
  • Verify box-fill calculations for devices, conductors and pigtails
  • Installation should be completed by qualified electrical personnel

Before You Order

Confirm the model number and that the depth, knockout pattern, mounting plate style and box volume meet your project and local code requirements.

  • Ensure desired clamp/connector type and knockout sizes match site needs
  • Verify box-fill calculations for devices, conductors and pigtails

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit 4 in Square 2-1/8 in Deep 4S Square Steel Box 1/2 in and 3/4 in Mixed Knockouts Back Mounting Plate With Pigtail 4SDB-BP. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandOrbit
SKU4SDB-BP
Product TypeDeep 4S Square Steel Box
Shape4 in square
Depth2-1/8 in
Box Volume30.3 cu in
Dimensions4 in W x 4 in H x 2-1/8 in
Knockouts1/2 in and 3/4 in mixed knockouts
Bracket TypeBack mounting plate
PigtailIncluded
FinishGalvanized
Material16 GA sheet steel
Manufacturing ProcessWelded
Mounting Type4S square box rough-in mount
Location RatingDry location
CertificationsUL, RoHS; UL File E227970
