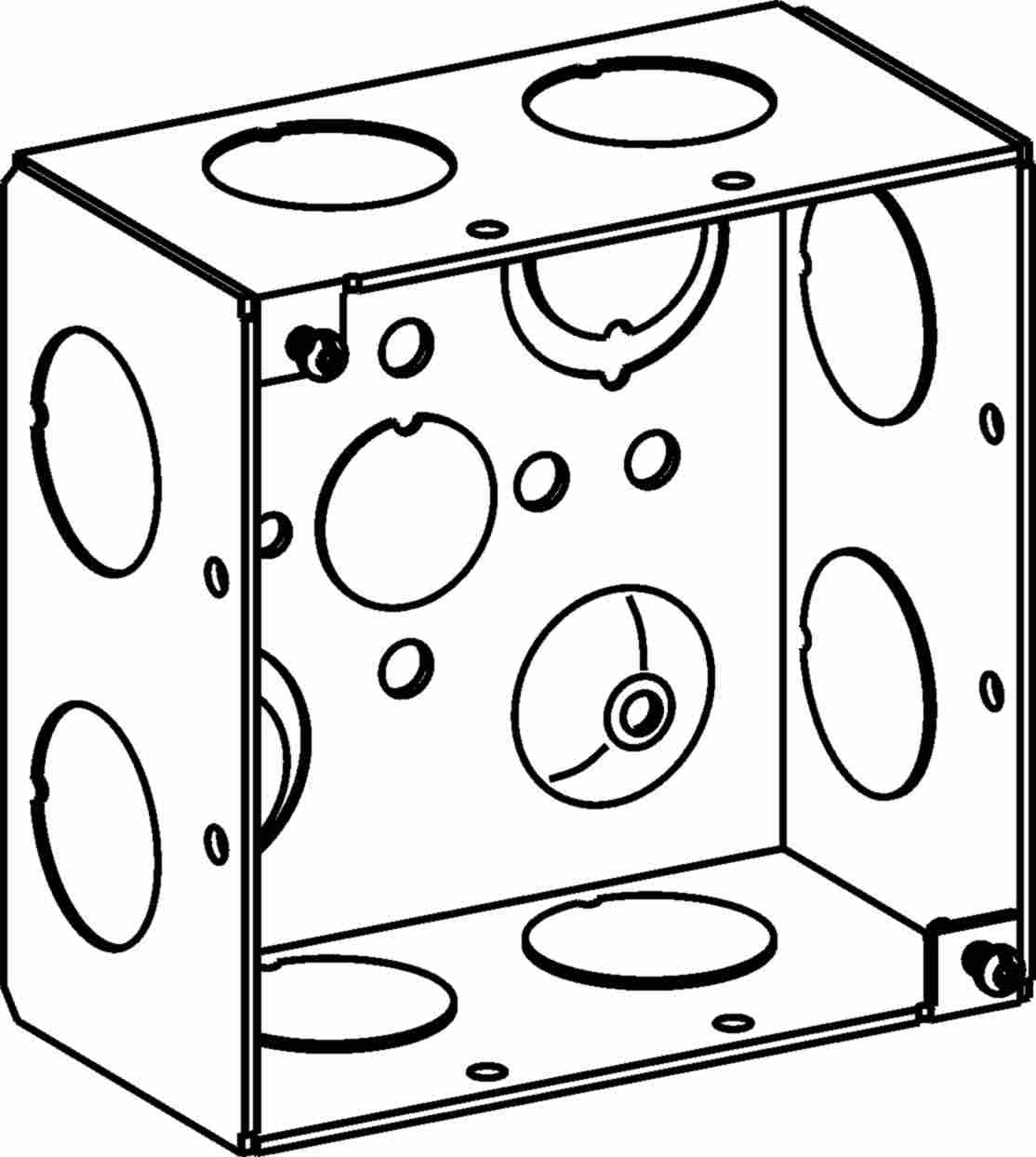

Orbit 4 in Square 2-1/8 in Deep 4S Square Steel Box 3/4 in Knockouts 4SDB-75

(No Ratings)
SKU: 4SDB-75
Price: $3.80
Free shipping on orders over $1,500

Description

Product Overview

The Orbit 4SDB-75 is a welded deep 4S square steel box for commercial switch, receptacle, fixture and junction box rough‑in. It measures 4 in square with a 2-1/8 in depth, has a 30.3 cu in internal volume, and includes 3/4 in knockouts.

Constructed from 16 GA galvanized steel, the 4SDB-75 is described as UL listed (UL File E227970) and RoHS compliant.

Key Features

  • 4 in square welded box, 2-1/8 in depth
  • 30.3 cubic inch internal volume
  • 3/4 in knockouts
  • 16 gauge galvanized steel construction
  • Location rating: dry locations

Function and typical uses

The Orbit 4SDB-75 is intended as a commercial 4S square rough‑in box for switches, receptacles, fixtures and general junction wiring. It is typically used in new construction and contractor stock where a welded steel 4S box is specified.

  • For switch and receptacle rough‑in and junction wiring
  • Used in commercial wall or ceiling wiring applications

Dimensions and box-fill capacity

This model measures 4 in by 4 in with a depth of 2-1/8 in and an internal volume of 30.3 cubic inches. Use the stated cubic inch capacity to verify conductor and device fill according to applicable electrical code.

  • Overall: 4 in W x 4 in H x 2-1/8 in D
  • Internal volume: 30.3 cu in

Materials, finish and certifications

The 4SDB-75 is formed from 16 gauge sheet steel with a galvanized finish and is manufactured as a welded 4S square box. The product listing indicates UL listing (UL File E227970) and RoHS compliance.

  • Material: 16 GA sheet steel
  • Finish: Galvanized
  • Certifications: UL (UL File E227970), RoHS

Knockouts and mounting

The box provides 3/4 in knockouts for conduit or connector entry and is intended for standard 4S square rough‑in mounting.

  • Knockouts: 3/4 in
  • Mounting type: 4S square box rough‑in
  • Manufacturing: welded construction

Ordering and installation guidance

Confirm the model number and that the depth, knockout pattern and box volume meet your project and local code requirements before ordering. Installation should be carried out by qualified electrical personnel following local codes and box‑fill calculations.

  • Verify model number, required quantity, depth and knockout pattern
  • Check box‑fill and grounding requirements for your installation

Before You Order

Confirm the model number, quantity and that the box depth, knockout pattern and cubic inch capacity meet your project and local code requirements.

  • Verify device opening and required box‑fill for your application
  • Ensure installation will be performed by qualified electrical personnel

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit 4 in Square 2-1/8 in Deep 4S Square Steel Box 3/4 in Knockouts 4SDB-75. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandOrbit
SKU4SDB-75
Product typeDeep 4S Square Steel Box
Shape4 in square
Depth2-1/8 in
Box volume30.3 cu in
Dimensions4 in W x 4 in H x 2-1/8 in D
Knockouts3/4 in
Material16 GA sheet steel
FinishGalvanized
Manufacturing processWelded
Mounting type4S square box rough-in mount
Location ratingDry location
CertificationsUL (UL File E227970), RoHS
Manufacturer part number4SDB-75
