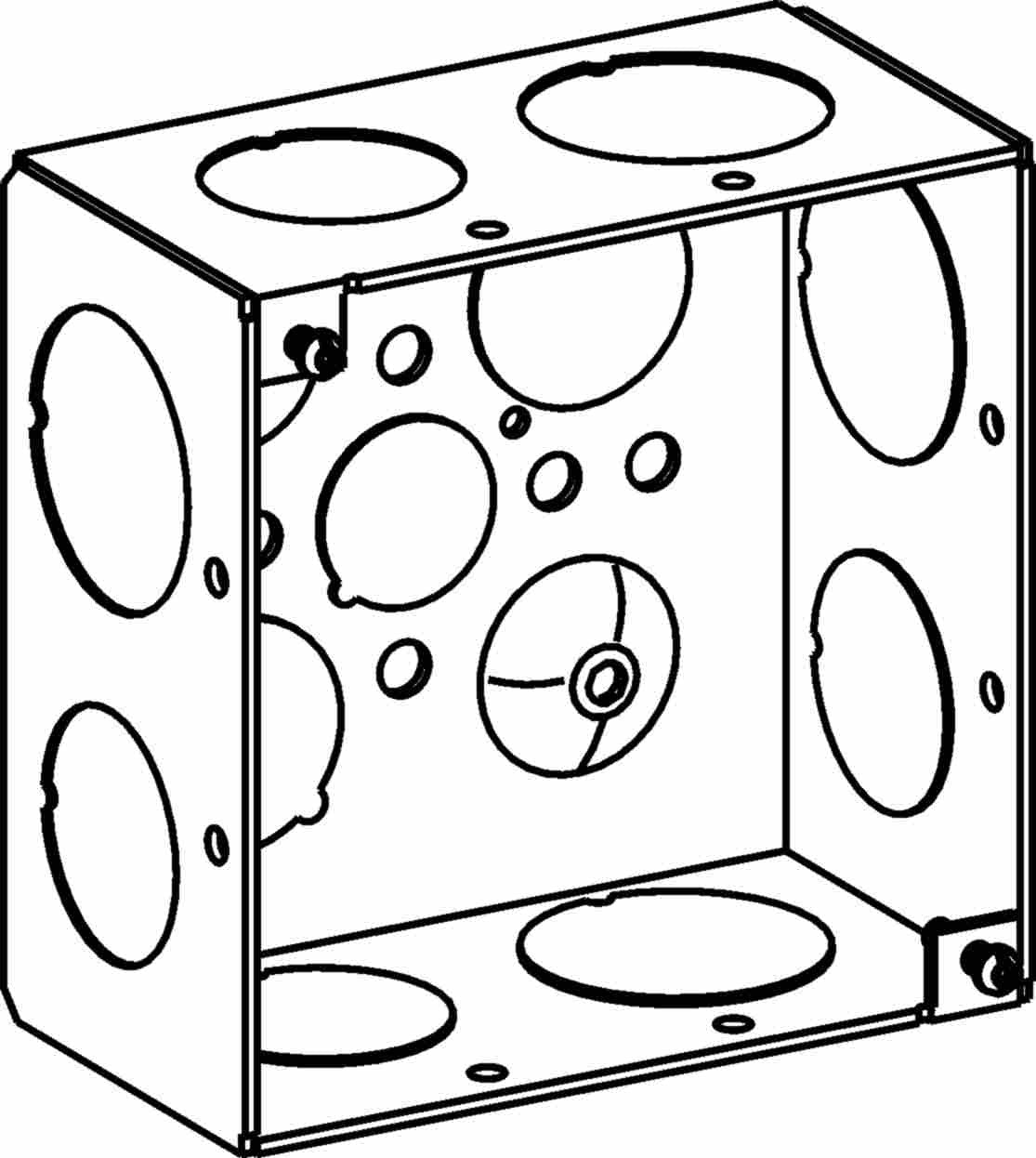

Orbit 4 in Square 2-1/8 in Deep 4S Square Steel Box 3/4 in and 1 in Knockouts 4SDB-75/100

(No Ratings)
SKU: 4SDB-75/100
Price: $4.02
Free shipping on orders over $1,500

Description

Product Overview

The Orbit 4SDB-75/100 is a welded 4 in square deep steel box for commercial switch, receptacle, fixture, and junction rough‑in. It provides 30.3 cu in of internal volume and includes 3/4 in and 1 in knockouts.

Constructed from 16 gauge galvanized sheet steel with a 2-1/8 in depth, this box is intended for 4S square box rough‑in mounting in dry locations and is listed to UL (UL File E227970) and RoHS compliant.

Key Features

  • 4 in square welded steel box, 2-1/8 in depth
  • 30.3 cu in internal volume
  • 3/4 in and 1 in knockout pattern
  • 16 GA galvanized sheet steel construction
  • UL listed (UL File E227970) and RoHS compliant; location rating: dry

What this box is for

The Orbit 4SDB-75/100 is specified for 4S square box rough‑in tasks such as switches, receptacles, luminaires/fixtures, and junctions in commercial settings. It is intended for use in dry locations.

  • Suitable for switch and receptacle rough‑in
  • Used for fixture or luminaire junctions where applicable support and mounting requirements are met
  • Commonly used for new construction and contractor stock

Dimensions and box volume

Use the box dimensions and internal volume to verify box‑fill and mounting compatibility with devices and wiring.

  • Overall dimensions: 4 in W x 4 in H x 2-1/8 in depth
  • Internal volume: 30.3 cu in — use for box‑fill calculations per applicable electrical code

Knockouts and cable/conduit entries

This model includes 3/4 in and 1 in factory knockouts to accommodate common connector and conduit sizes.

  • Factory knockouts: 3/4 in and 1 in
  • Verify connector type, clamp requirements, and compatibility with your connectors before installation

Materials and finish

The box is constructed from 16 gauge sheet steel with a galvanized finish for basic corrosion resistance and mechanical strength suitable for interior dry locations.

  • Material: 16 GA sheet steel
  • Finish: Galvanized
  • Manufacturing: Welded construction

Certifications and location rating

Confirm approvals and environment suitability as part of selection.

  • UL listed — UL File E227970
  • RoHS compliant
  • Location rating: Dry location

Ordering and installation notes

Confirm model specifics and site requirements before ordering. Installation should be performed by qualified electrical personnel.

  • Confirm model number, depth, and knockout pattern before ordering
  • Verify box‑fill calculations, grounding, and device/fixture support during installation
  • Designed for 4S square box rough‑in mounting

Before You Order

Confirm the model number and that the box depth, knockout pattern, and mounting style match your project needs.

  • Confirm model number: 4SDB-75/100
  • Verify knockout sizes (3/4 in and 1 in) match connector needs
  • Check box‑fill and local electrical code requirements
  • Have a qualified electrician perform installation

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit 4 in Square 2-1/8 in Deep 4S Square Steel Box 3/4 in and 1 in Knockouts 4SDB-75/100. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandOrbit
SKU4SDB-75/100
Product TypeDeep 4S Square Steel Box
Shape4 in square
Depth2-1/8 in
Box Volume30.3 cu in
Dimensions4 in W x 4 in H x 2-1/8 in
Knockouts3/4 in and 1 in
FinishGalvanized
Material16 GA sheet steel
Manufacturing ProcessWelded
Mounting Type4S square box rough-in mount
Location RatingDry location
CertificationsUL, RoHS; UL File E227970
