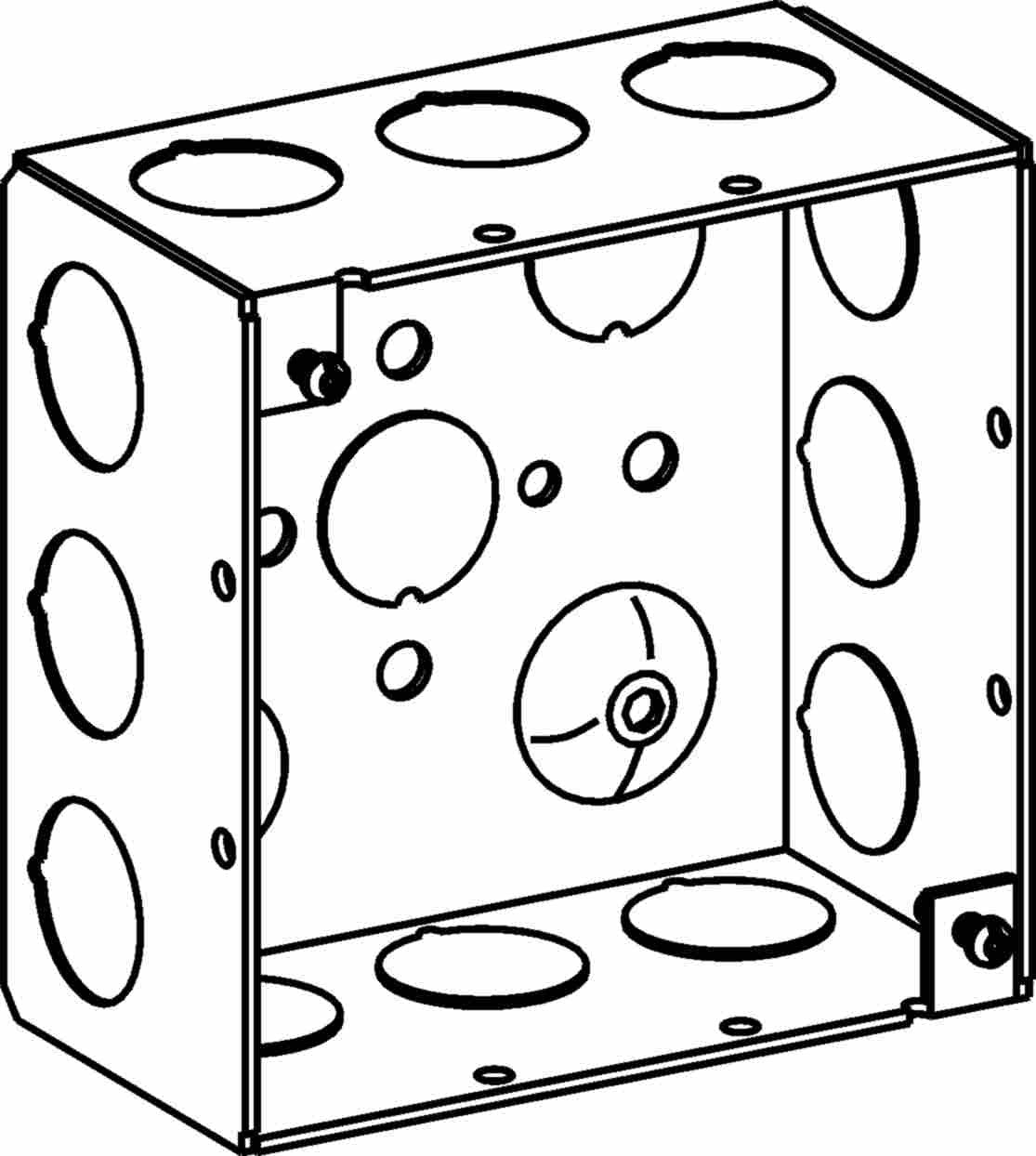

Orbit 4 in Square 2-1/8 in Deep 4S Square Steel Box 1/2 in Knockouts 4SDB-50

(No Ratings)
SKU: 4SDB-50
Price: $3.30
Free shipping on orders over $1,500

Description

Product Overview

Orbit 4SDB-50 is a welded 4 in square deep steel box for commercial switch, receptacle, fixture, and junction rough-in.

Physical details: 4 in W x 4 in H x 2-1/8 in deep, 30.3 cu in internal volume, 16 gauge galvanized steel with 1/2 in knockouts.

Key Features

  • 4 in square welded steel box for 4S rough-in
  • 2-1/8 in depth providing 30.3 cu in of box volume
  • 1/2 in knockouts
  • 16 GA galvanized steel construction
  • Welded construction
  • UL listed (UL File E227970) and RoHS compliant
  • Location rating: Dry location

What this box is for

The Orbit 4SDB-50 is intended for commercial electrical rough-in where a 4 in square deep box is required. It is suitable for switch and receptacle rough-in, junctions, and mounting fixtures or devices within the box's listed characteristics.

  • Common uses: switch and receptacle rough-in, junctions, fixture and device box layouts, commercial wall and ceiling wiring, new construction, and contractor stock.

Dimensions and internal capacity

Exact physical dimensions and internal volume assist with box-fill calculations and installation planning.

  • Overall: 4 in W x 4 in H x 2-1/8 in D
  • Internal volume: 30.3 cu in

Construction and finish

The box is made from 16 gauge sheet steel with a galvanized finish and is produced using a welded manufacturing process.

  • Material: 16 GA sheet steel
  • Finish: Galvanized
  • Manufacturing: Welded

Knockouts and mounting

Knockout size and mounting form factor indicate conduit and device entry options and intended rough-in installation.

  • Knockouts: 1/2 in
  • Mounting type: 4S square box rough-in mount

Certifications and location rating

Review listed approvals and the location rating when selecting this box for a project.

  • Listings: UL (UL File E227970), RoHS
  • Location rating: Dry location

Before You Order

Verify the model, depth, and knockout size match your installation requirements.

  • Confirm the 2-1/8 in depth and 1/2 in knockout size meet your needs.
  • Check box-fill calculations and local electrical code requirements before specifying or installing.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit 4 in Square 2-1/8 in Deep 4S Square Steel Box 1/2 in Knockouts 4SDB-50. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandOrbit
SKU4SDB-50
Product TypeDeep 4S Square Steel Box
Shape4 in square
Depth2-1/8 in
Box Volume30.3 cu in
Dimensions4 in W x 4 in H x 2-1/8 in D
Knockouts1/2 in
Material16 GA sheet steel
FinishGalvanized
Manufacturing ProcessWelded
Mounting Type4S square box rough-in mount
Location RatingDry location
CertificationsUL (UL File E227970), RoHS
