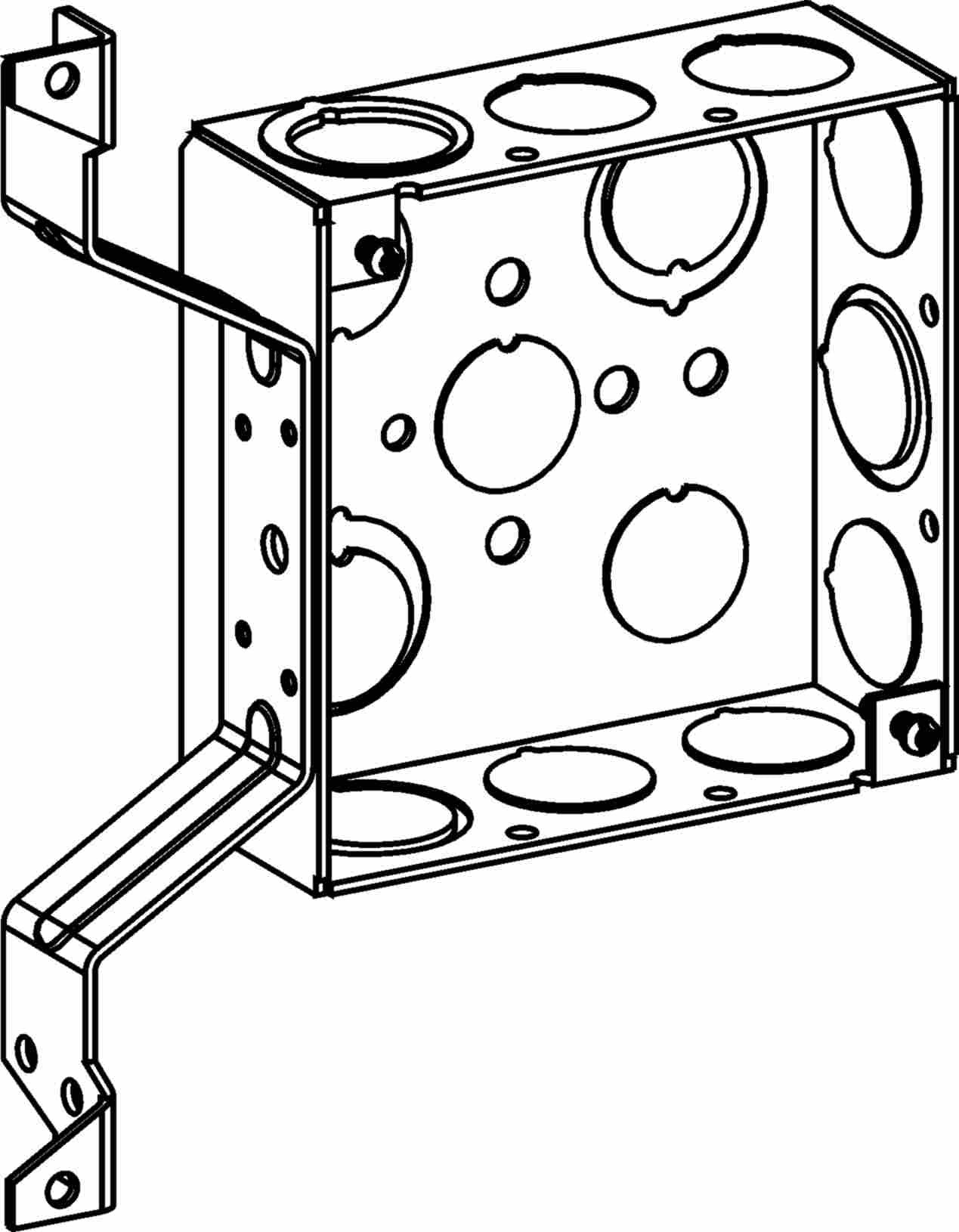

Orbit 4 in Square 1-1/2 in Deep 4S Square Steel Box 1/2 in and 3/4 in Mixed Knockouts Offset Bracket 4SB-MKO-OB

(No Ratings)
SKU: 4SB-MKO-OB
Price: $5.80
Free shipping on orders over $1,500

Description

Product Overview

Orbit 4SB-MKO-OB is a welded 4S square steel box for commercial switch, receptacle, fixture, and junction rough-in. It measures 4 in x 4 in x 1-1/2 in and provides 21 cu in of internal volume.

The box features mixed 1/2 in and 3/4 in knockouts and includes an offset bracket. Constructed from 16 GA galvanized sheet steel, it is UL listed (UL File E227970) and RoHS compliant and is rated for dry-location use.

Key Features

  • 4 in square welded steel box, 1-1/2 in depth
  • 21 cu in internal volume
  • Mixed 1/2 in and 3/4 in knockouts
  • Includes offset bracket
  • 16 GA galvanized sheet steel construction
  • UL listed (UL File E227970) and RoHS compliant; rated for dry locations
  • Welded construction

Intended uses

This 4S square box is intended for rough-in of switches, receptacles, fixtures, and junctions in commercial wiring applications where a 4 in square box is appropriate.

  • Common uses: switch and receptacle rough-in, fixture and device box layouts, general commercial wall and ceiling wiring.

Dimensions and capacity

The box measures 4 in wide by 4 in high with a 1-1/2 in mounting depth and provides 21 cu in of internal volume. Confirm that this volume meets your local box-fill requirements for the intended devices and conductors.

  • Face dimensions: 4 in W x 4 in H
  • Depth: 1-1/2 in
  • Internal volume: 21 cu in

Knockouts and mounting features

The unit is supplied with mixed 1/2 in and 3/4 in knockouts and includes an offset bracket to assist with positioning during rough-in. It is configured for 4S square box rough-in mounting.

  • Knockouts: mixed 1/2 in and 3/4 in
  • Bracket: offset bracket included
  • Mounting: for 4S square box rough-in installations

Construction, finish, and listings

Made from 16 GA sheet steel with a galvanized finish, the welded box carries UL listing information referenced as UL File E227970 and is RoHS compliant. The product is designated for dry-location use.

  • Material: 16 GA sheet steel
  • Finish: galvanized
  • Certifications/listings: UL (UL File E227970), RoHS
  • Location rating: dry location

Ordering and installation reminders

Verify that the model, depth, knockout pattern, bracket style, and box-fill match your project requirements before ordering. Installation should comply with local electrical codes and be performed by qualified personnel.

  • Check device opening, clamp needs, and box-fill calculations for your devices and conductors
  • Follow grounding and installation requirements per code

Before You Order

Confirm model number, quantity, depth, knockout pattern, bracket style, and that 21 cu in meets your box-fill needs before ordering.

  • Ensure devices and clamps you plan to use are compatible with a 4S 4 in square box
  • Installation should comply with local electrical codes and be performed by qualified personnel

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit 4 in Square 1-1/2 in Deep 4S Square Steel Box 1/2 in and 3/4 in Mixed Knockouts Offset Bracket 4SB-MKO-OB. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandOrbit
SKU4SB-MKO-OB
Product Type4S Square Steel Box
Shape4 in square
Depth1-1/2 in
Box Volume21 cu in
Dimensions4 in W x 4 in H x 1-1/2 in D
Knockouts1/2 in and 3/4 in mixed knockouts
Bracket TypeOffset bracket
FinishGalvanized
Material16 GA sheet steel
Manufacturing ProcessWelded
Mounting Type4S square box rough-in mount
Location RatingDry location
CertificationsUL (UL File E227970), RoHS
