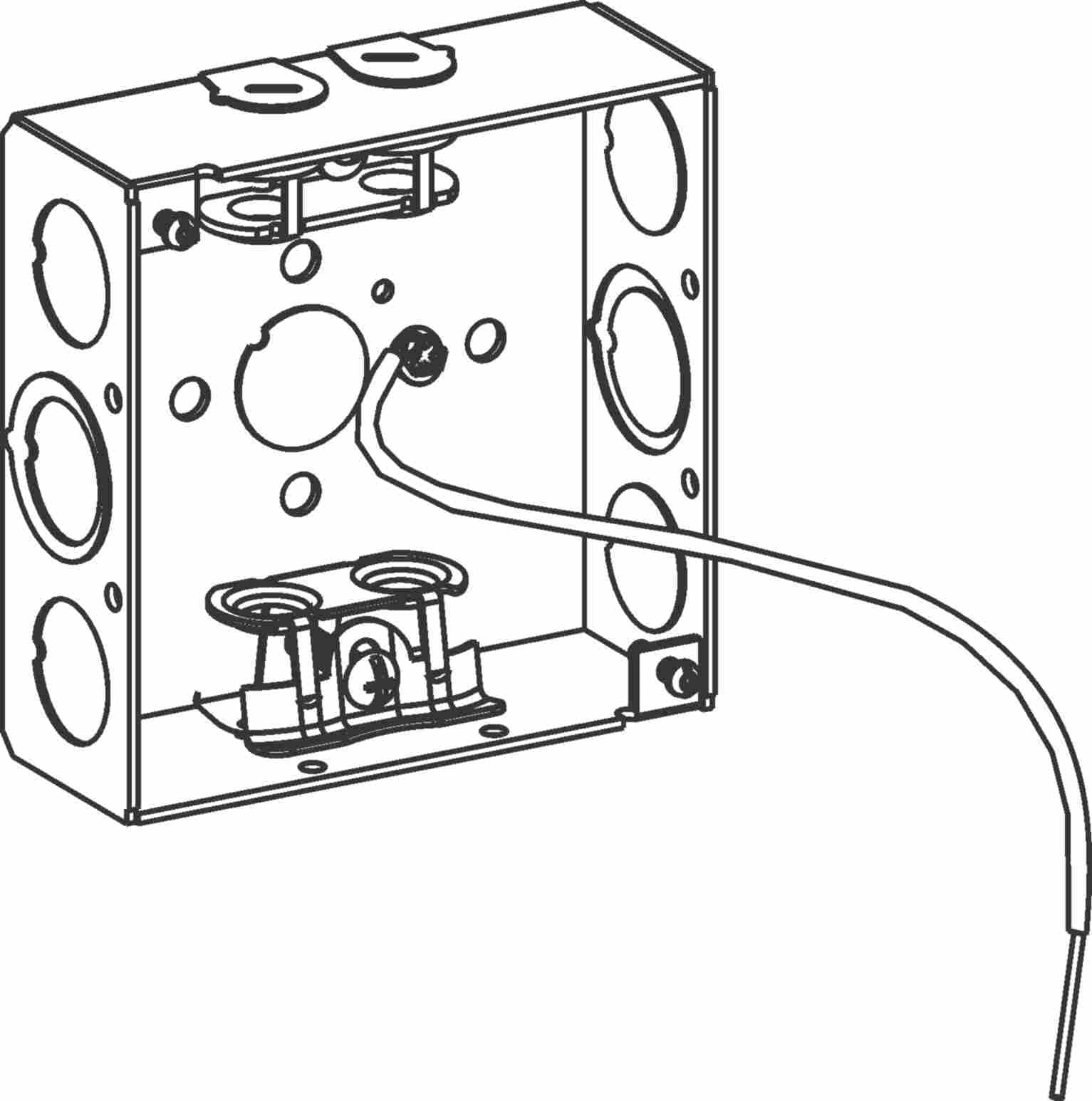

Orbit 4 in Square 1-1/2 in Deep 4S Square Steel Box MC Clamp With Pigtail 4SB-MC-PT
Description
Product Overview
The Orbit 4SB-MC-PT is a welded 4S square steel electrical box sized for commercial switch, receptacle, fixture, and junction box rough-in.
This SKU is a 4 in square, 1-1/2 in deep galvanized steel box that includes an MC cable clamp and a grounding pigtail; internal volume is 21 cu in.
Key Features
- 4 in square welded box, 1-1/2 in depth (4 in W x 4 in H x 1-1/2 in)
- 21 cubic inches internal volume
- Includes MC clamp for securing MC cable
- Grounding pigtail included
- 16 gauge sheet steel construction with galvanized finish
- UL listed and RoHS compliant (UL File E227970)
What this box is used for
The Orbit 4SB-MC-PT is intended for 4S square box installations in commercial wall and ceiling wiring. It is suitable for switch and receptacle rough-in, junction box use, and mounting fixtures or devices where a 4 in square, 1-1/2 in deep box is specified.
This SKU includes a factory-supplied MC clamp and grounding pigtail, which are commonly needed for MC cable terminations and grounding during rough-in.
- Common applications: switch and receptacle rough-in, junction box use, commercial wiring rough-in
Key specifications and construction
This SKU is a welded 4 in square box made from 16 gauge sheet steel with a galvanized finish. Internal volume and physical dimensions are provided to aid selection.
- Shape: 4 in square
- Depth: 1-1/2 in (overall dimensions 4 in W x 4 in H x 1-1/2 in)
- Box volume: 21 cu in
- Clamp type: MC clamp included
- Grounding: pigtail included
- Material/finish: 16 GA sheet steel, galvanized
- Manufacturing: welded
Compatibility and installation notes
Verify that the box features match your project requirements before ordering. Installation must meet local electrical code and should be completed by qualified electrical personnel.
- Check knockout pattern, depth, clamp type, device opening, and box-fill calculations for your application
- Use the included pigtail for equipment grounding connection as required by code
- Intended location rating: dry location
- Certifications: UL, RoHS; UL File E227970
Before You Order
Confirm the model number and quantity required before ordering.
- Verify box depth, knockout pattern, clamp type, and device opening for your project
- Installation should be completed by qualified electrical personnel
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Orbit 4 in Square 1-1/2 in Deep 4S Square Steel Box MC Clamp With Pigtail 4SB-MC-PT. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Orbit |
|---|---|
| SKU | 4SB-MC-PT |
| Product Type | 4S Square Steel Box |
| Shape | 4 in square |
| Depth | 1-1/2 in |
| Box Volume | 21 cu in |
| Dimensions | 4 in W x 4 in H x 1-1/2 in |
| Clamp Type | MC clamp |
| Pigtail | Included |
| Finish | Galvanized |
| Material | 16 GA sheet steel |
| Manufacturing Process | Welded |
| Mounting Type | 4S square box rough-in mount |
| Location Rating | Dry location |
| Certifications | UL, RoHS; UL File E227970 |
