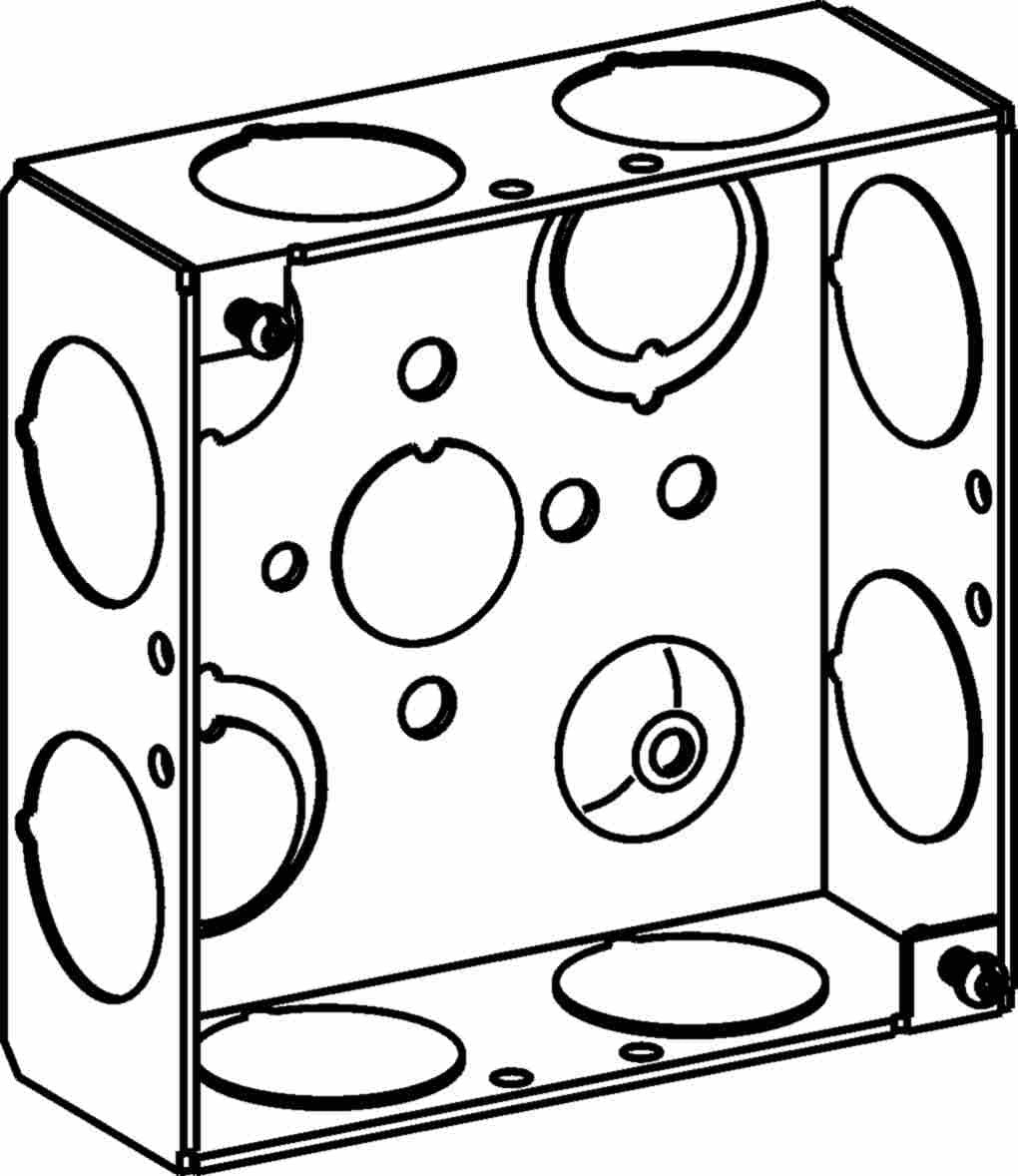

Orbit 4 in Square 1-1/2 in Deep 4S Square Steel Box 3/4 in Knockouts 4SB-75

(No Ratings)
SKU: 4SB-75
Price: $2.60
Free shipping on orders over $1,500

Description

Product Overview

The Orbit 4SB-75 is a welded 4S square steel box for commercial switch, receptacle, fixture and junction box rough-in. It measures 4 in square by 1-1/2 in deep and provides 21 cu in of internal volume.

Constructed from 16 gauge galvanized sheet steel with 3/4 in knockouts, the 4SB-75 is UL listed (UL File E227970) and RoHS compliant for dry-location installations.

Key Features

  • 4 in square welded steel box (4S)
  • 1-1/2 in depth, 21 cu in internal volume
  • 3/4 in knockouts for conduit or cable entries
  • 16 GA galvanized sheet steel construction
  • UL listed and RoHS compliant (UL File E227970)

Function and typical uses

The Orbit 4SB-75 is intended for use as a commercial switch, receptacle, fixture and junction box rough-in. It accommodates device terminations, splices and junctions in wall or ceiling layouts where a 4S square box is required.

  • Suitable for switch and receptacle rough-in
  • Used for fixture and luminaire electrical connections
  • Common in new construction and contractor stock for commercial wiring

Dimensions and box volume

Specify the 4SB-75 when a 4 in square box with shallow depth is required. The box dimensions and internal volume affect permissible conductor fill and device mounting.

  • Outside dimensions: 4 in W x 4 in H x 1-1/2 in deep
  • Internal volume: 21 cu in (use for box-fill calculations)

Materials, finish and certifications

The 4SB-75 is formed from 16 gauge galvanized sheet steel and is welded during manufacture. The unit carries UL listing and is RoHS compliant; UL File E227970 is provided as the listing reference.

  • Material: 16 GA sheet steel
  • Finish: Galvanized
  • Certifications: UL listed; RoHS compliant (UL File E227970)

Knockouts and mounting details

This SKU includes 3/4 in knockouts sized for common conduit or cable entry. It is configured as a 4S square box for rough-in mounting in commercial applications.

  • Knockouts: 3/4 in
  • Mounting type: 4S square box rough-in mount
  • Manufacturing: welded construction

Applications and installation guidance

Use the 4SB-75 in dry locations for commercial wall and ceiling wiring and for device and fixture electrical connections. Verify box-fill and local electrical code requirements prior to installation.

  • Location rating: Dry location
  • Verify device opening, knockout pattern, depth and local electrical code requirements before installation

Before You Order

Confirm the model number, depth, knockout pattern and local electrical code requirements before ordering.

  • Verify box volume (21 cu in) for conductor and device box-fill requirements
  • Confirm 3/4 in knockout locations meet project conduit/cable entry needs

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit 4 in Square 1-1/2 in Deep 4S Square Steel Box 3/4 in Knockouts 4SB-75. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandOrbit
SKU4SB-75
Product Type4S Square Steel Box
Shape4 in square
Depth1-1/2 in
Box Volume21 cu in
Dimensions4 in W x 4 in H x 1-1/2 in
Knockouts3/4 in
FinishGalvanized
Material16 GA sheet steel
Manufacturing ProcessWelded
Mounting Type4S square box rough-in mount
Location RatingDry location
CertificationsUL listed; RoHS compliant (UL File E227970)
