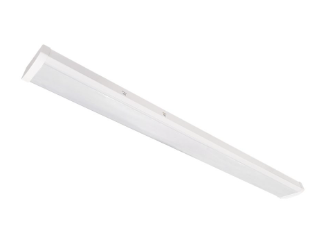

Nora Lighting NLWPSW-4L334W 4' LED Wraparound with Selectable Lumens & CCT, White Finish

Product Overview

The Nora Lighting NLWPSW-4L334W is a 4-foot LED wraparound luminaire with selectable lumen output and color temperature. Its steel body has a white powder-coat finish.

The fixture has selectable 55W, 60W, and 65W settings and offers surface mounting, wall mounting, or suspension with the separately ordered NLWPSWA-PK pendant kit.

Key Features

• 4-foot LED wraparound with white powder-coat finish
• Selectable lumen settings: 55W, 60W, or 65W
• Selectable CCT: 3000K, 3500K, or 4000K; preset to 3000K
• 120–277VAC input and 0–10V dimming
• 100° wide-flood beam spread and 80+ CRI
• Surface, wall, or pendant mounting; pendant kit ordered separately

Selectable Lumens and CCT

The NLWPSW-4L334W has separate switches for lumen output and color temperature. The selectable wattage settings are 55W, 60W, and 65W. The manufacturer lists lumen settings of 7,057 lm, 7,586 lm, and 8,100 lm; delivered lumens vary depending on color temperature. The CCT switch offers 3000K, 3500K, and 4000K, and the fixture is preset to 3000K.

Electrical and Dimming

This wraparound is specified for 120–277VAC input and 0–10V dimming. It has a 100° wide-flood beam spread and a color rendering index of 80+ CRI.

Mounting and Size

The 4-foot fixture can be surface mounted, wall mounted, or suspended using the separately ordered NLWPSWA-PK pendant kit. Its listed length is 47-1/2 inches.

• Pendant kit NLWPSWA-PK includes a canopy, 8-foot aircraft cable, and hooks.

Listings and Operating Conditions

The luminaire is cULus Listed for damp locations and DLC SSL V6.0 Listed for Direct Linear, Stairwell, and Passageway. Its stated operating temperature range is 0°C to 45°C. It is FCC compliant and has a 5-year limited warranty.

Before You Order

The NLWPSWA-PK pendant kit is ordered separately if needed for suspended mounting.
