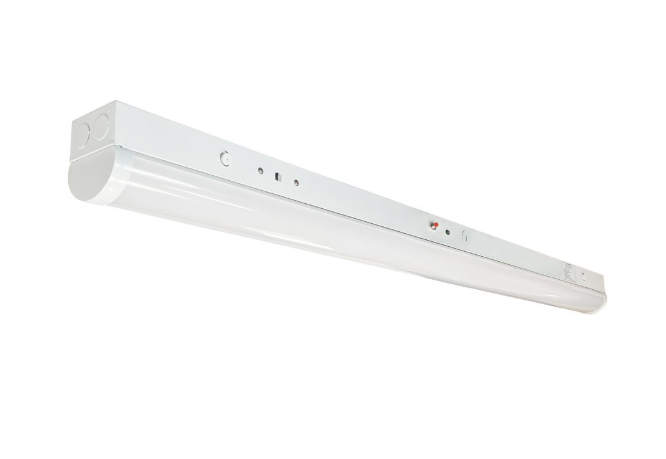

Nora Lighting NLSTR-4L1334W/EMMS 48" LED Tunable Strip Light, 3300lm / 24W, Selectable CCT (30/35/40K), White finish, 120-277V input; 0-10V Dimming w/ Integral Motion Sensor & Emergency

Product Overview

The Nora Lighting NLSTR-4L1334W/EMMS is a 48" LED strip light with a field-selectable CCT switch, an integral emergency battery and an integral microwave motion sensor (EMMS configuration).

Nominal output is 3300 lumens at 24 W. The fixture accepts 120–277V input and supports 0–10V dimming per manufacturer specifications.

Key Features

• 48" LED strip — 3300 lm, 24 W
• Field-selectable CCT: 3000K / 3500K / 4000K via three-position switch
• Integral emergency battery (EM option) and integral microwave motion sensor (MS option) — EMMS denotes both
• 0–10V dimming (manufacturer notes motion sensor is not compatible with 0–10V dimming)
• cETLus listed for damp locations and DLC Listed (V6.0); FCC compliant
• White powder-coated stamped steel body with polycarbonate lens; 124° beam spread
• Rated lifetime 60,000 hours at L70; 5-year limited warranty

What this fixture does

The NLSTR-4L1334W/EMMS is a 48-inch LED strip light configured with both an integral emergency battery and an integral microwave motion sensor (EMMS). It is intended for general lighting and emergency/egress applications where a fixture-level emergency source and occupancy sensing are desired.

• EMMS indicates the fixture includes an emergency battery and a microwave motion sensor as part of the factory configuration.
• Emergency battery provides emergency output as specified by the manufacturer (8 W for 90 minutes when fully charged).
• Motion sensor provides occupancy detection; settings can be adjusted with an optional remote control accessory.

Light output and optical performance

This SKU is rated for 3300 lumens at 24 W and uses a polycarbonate lens to produce a wide beam spread intended to reduce diode image and provide even illumination.

• Nominal output: 3300 lm
• Power: 24 W
• Beam spread: 124° wide flood (manufacturer specification)
• Color rendering: 80+ CRI
• Selectable CCT: 3000K / 3500K / 4000K via three-position sliding switch

Electrical and dimming requirements

The fixture accepts 120–277V input and supports 0–10V dimming. The manufacturer specifies that the motion sensor is not compatible with 0–10V dimming.

• Input voltage: 120–277V
• Dimming: 0–10V (motion sensor not compatible with 0–10V dimming)
• Emergency battery operation: 8 W for 90 minutes on a fully charged battery (per manufacturer)

Mounting, construction and accessories

Construction is stamped steel with a white powder coat finish, and the fixture includes top, end and side knockouts. Mounting options include ceiling, wall, or suspension using the optional pendant kit.

• Finish: White powder coat
• Body: Stamped steel
• Lens: Polycarbonate
• Mounting: ceiling, wall, or suspended (pendant kit NLSTRA-PK ordered separately)
• Optional accessories: NLSTRA-JBCW junction box cover plate, NLSTRA-PK pendant kit, NLSTRA-MSCONT2 remote control for motion sensor

Listings, environment and warranty

The product is cETLus listed for damp locations, DLC Listed (V6.0) and FCC compliant. Rated operating temperature range and warranty are provided by the manufacturer.

• Listings: cETLus (damp locations), DLC Listed (V6.0), FCC compliant
• Operating temperature: 0°C to 40°C
• Lifetime: 60,000 hours @ L70
• Warranty: 5-year limited warranty

Before You Order

Confirm the exact model NLSTR-4L1334W/EMMS and required quantity before ordering.

• Pendant suspension requires NLSTRA-PK (sold separately).
• Motion sensor functionality is not compatible with 0–10V dimming per the manufacturer—choose sensor or dimming based on control needs.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Nora Lighting NLSTR-4L1334W/EMMS 48" LED Tunable Strip Light, 3300lm / 24W, Selectable CCT (30/35/40K), White finish, 120-277V input; 0-10V Dimming w/ Integral Motion Sensor & Emergency. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
