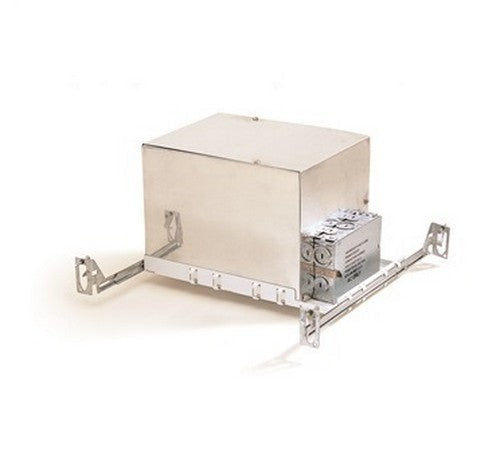

Nora Lighting NLIC-401AT/1EL 4" IC AT Low Voltage Housing, 120V/12V Elect. Transformer, Max 50W
Description
Product Overview
The Nora Lighting NLIC-401AT/1EL is a 4-inch recessed new-construction housing designed for IC-rated ceilings. It includes a 120V to 12V electronic transformer and supports a maximum lamp load of 50 watts.
This housing is intended for installation in residential and commercial new-construction ceilings where the housing will be in direct contact with insulation; match with compatible 4" Nora trims for finished appearance.
Key Features
- 4 in aperture recessed new-construction housing
- IC-rated for direct contact with ceiling insulation
- Built-in 120V/12V electronic transformer
- Maximum lamp load: 50 W
- Designed for use with compatible Nora 4" trims
What this housing does
The NLIC-401AT/1EL is a 4" new-construction recessed housing that provides a rated enclosure for low-voltage MR16-style lighting using a built-in electronic transformer. It is IC-rated, so it may be installed in ceilings that have insulation in direct contact with the housing.
- Provides mechanical support and electrical enclosure for a 4" light assembly
- Includes an integral 120V to 12V electronic transformer
- Accepts compatible 4" trims (trim sold separately)
Typical applications
This housing is suitable for general and accent recessed lighting in new-construction residential and commercial ceilings where an IC-rated product is required.
- New-construction installations
- Residential and commercial ceilings
- IC-rated ceilings where the housing contacts insulation
Electrical and transformer details
Use this housing where a 120V supply is available and a 12V lamp source is required. The built-in electronic transformer converts line voltage to low voltage for compatible lamps.
- Line voltage input: 120 V
- Transformer output: 12 V (electronic)
- Maximum permitted lamp wattage: 50 W
Compatibility and installation notes
Match the correct Nora 4" trim to this housing — trims are not included. The IC rating permits direct contact with ceiling insulation, but installers should follow local electrical and building codes and the trim manufacturer's instructions for final assembly and clearance requirements.
- Trims sold separately; select compatible Nora 4" trims
- Intended for new-construction mounting
- Confirm trim and lamp compatibility before installation
Before You Order
Confirm the model number and quantity required before ordering. Ensure selected trim and lamp types are compatible with a 12V electronic transformer and the 50W maximum load.
- Verify you need a new-construction, IC-rated 4" housing
- Select a compatible Nora 4" trim (not included)
- Check local codes for installation and insulation contact requirements
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Nora Lighting NLIC-401AT/1EL 4" IC AT Low Voltage Housing, 120V/12V Elect. Transformer, Max 50W. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Nora Lighting |
|---|---|
| SKU | NLIC-401AT/1EL |
| Product Type | Recessed Housing (new-construction) |
| Series | NLIC-401 |
| Aperture Size | 4 in |
| Maximum Wattage | 50 W |
| Voltage | 120 V (input) / 12 V (transformer output) |
| Housing Rating | IC-rated |
| Trim | Sold separately — use compatible 4" Nora trims |
