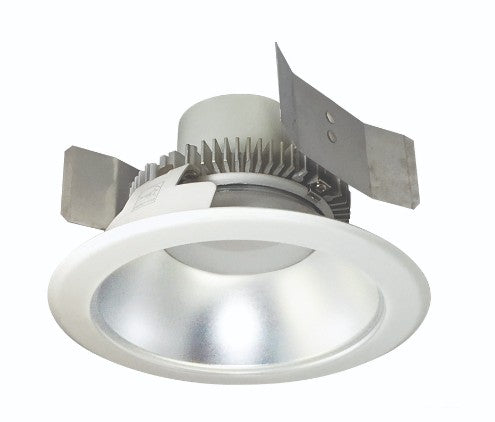

Nora Lighting NLCBC2-55140DW/ALE4 5" Cobalt Click Round Retrofit Reflector, 750lm / 10W, 4000K, Diffused Clear Reflector / White Flange, 120-277V input; Phase or 0-10V dimming

Product Overview

The Nora Lighting NLCBC2-55140DW/ALE4 is a 5-inch round LED retrofit reflector that produces 750 lumens at 10 watts and accepts 120–277V input.

It features a white flange with a diffused clear reflector and supports both phase and 0–10V dimming control when used with compatible dimming equipment.

Key Features

• 5 in round aperture
• 750 lm output at 10 W
• 120–277V multi-volt input
• Supports 0–10V dimming; phase dimming is also supported
• White flange with diffused clear reflector

What this fixture does

The NLCBC2-55140DW/ALE4 is a 5-inch round LED retrofit reflector intended to replace or upgrade existing recessed fixtures. It delivers 750 lumens using 10 watts for general and accent lighting.

• Light output: 750 lm
• Power: 10 W
• Color temperature: 4000 K

Electrical and dimming compatibility

This reflector accepts 120–277V input. It supports 0–10V dimming and phase dimming as indicated by the product information; use compatible dimming controls rated for the fixture load.

• Input voltage: 120–277 V
• Dimming: 0–10V and phase dimming (requires compatible controller/dimmer)

Applications and installation notes

Suitable for retrofit projects and new installations where a 5-inch round aperture is required. Confirm the existing recessed housing and mounting method will accept this retrofit reflector before installation.

• Typical uses: retrofit into existing housings, general and accent recessed lighting
• Verify housing compatibility prior to ordering

Size and finish

The reflector fits a 5-inch aperture and includes a white flange with a diffused clear reflector to provide a clean ceiling appearance.

• Aperture size: 5 in
• Trim shape: Round
• Finish: White flange with diffused clear reflector

Technical specifications

Key product specifications for the NLCBC2-55140DW/ALE4.

• Brand: Nora Lighting
• Model / SKU: NLCBC2-55140DW/ALE4
• Product type: LED Retrofit Reflector
• Series: NLCBC2-551
• Lumens: 750 lm
• Wattage: 10 W
• Color temperature: 4000 K
• Voltage: 120–277 V
• Dimming: 0–10V and phase dimming
• Trim shape: Round
• Aperture: 5 in
• Finish: White

Before You Order

Verify that the existing recessed housing accepts a 5-inch retrofit reflector and confirm dimmer/controller compatibility with the fixture load.

• Confirm housing compatibility before ordering.
• If using 0–10V dimming, use a 0–10V controller rated for the fixture load.
