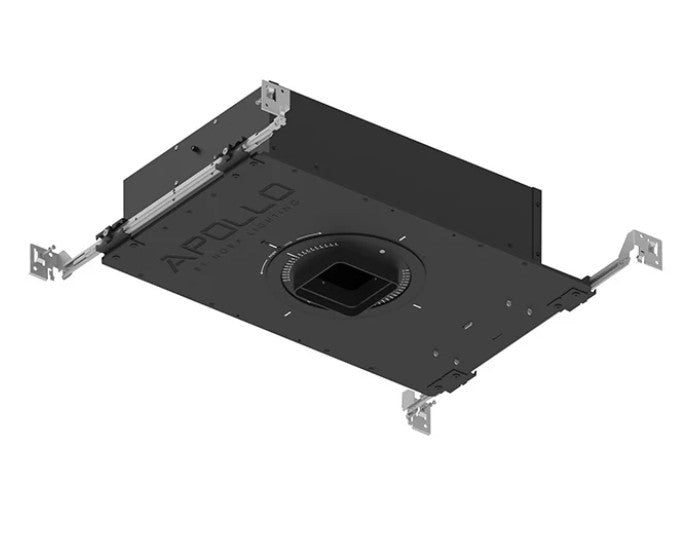

Nora Lighting NHAPIC-3S20L22725DP 3" Apollo Square IC Airtight New Construction Housing w/ 1.625" to 2" Ceiling Collar, 1500lm / 15W, 2700K, Spot Optic, 120V; Phase Dimming
Description
Product Overview
The Nora Lighting NHAPIC-3S20L22725DP is a 3" square new-construction recessed housing rated IC Airtight. It is specified to deliver 1500 lumens at 15 W on 120 V and uses a spot optic for focused lighting.
Designed for new-construction installs, the housing is rated for direct contact with ceiling insulation and is intended to be used with phase-control dimmers where dimming is required.
Key Features
- 3" square aperture
- 1500 lm output at 15 W (120 V)
- 2700 K color temperature
- Spot optic for a focused beam
- IC-rated and airtight for direct contact with insulation
- New-construction housing (installed before ceiling finish)
- Compatible with phase dimming controls
What this housing does
The NHAPIC-3S20L22725DP is a new-construction recessed housing for 3" square apertures. It is specified at 1500 lumens and 15 W on 120 V and uses a spot optic for focused accent or targeted general lighting.
Recommended applications
Suitable for new-construction residential and commercial ceilings where a compact square aperture and a focused beam are desired.
- Accent lighting and targeted illumination
- General recessed lighting in compact layouts
- Installations where an IC-rated housing is required due to insulation contact
Electrical requirements and dimming
This model is specified for 120 V operation and is described as working with phase-control dimmers.
- Operating voltage: 120 V
- Dimming: Phase dimming — use a phase-control dimmer rated for the circuit and connected load
Mounting and installation context
Intended for new-construction installation (mounted before the finished ceiling). The housing is IC-rated and airtight, which allows direct contact with ceiling insulation per the IC rating.
- Construction type: New construction (not a remodel housing)
- Housing rating: IC Airtight
Light output and beam control
Specified with a spot optic and 2700 K color temperature to provide a concentrated warm-white beam at 1500 lumens through a 3" square aperture.
- Lumens: 1500 lm
- Wattage: 15 W
- Color temperature: 2700 K
- Optic: Spot (focused beam)
Before You Order
Verify the model and that new-construction housing is appropriate for your installation.
- Confirm NHAPIC-3S20L22725DP matches required aperture, lumen output, and color temperature
- Ensure a phase-control dimmer rated for the load will be used
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Nora Lighting NHAPIC-3S20L22725DP 3" Apollo Square IC Airtight New Construction Housing w/ 1.625" to 2" Ceiling Collar, 1500lm / 15W, 2700K, Spot Optic, 120V; Phase Dimming. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Nora Lighting |
|---|---|
| SKU | NHAPIC-3S20L22725DP |
| Product Type | Recessed Housing |
| Series | NHAPIC-3S2 |
| Aperture Size | 3 in |
| Trim Shape | Square |
| Lumens | 1500 lm |
| Wattage | 15 W |
| Voltage | 120 V |
| Color Temperature | 2700 K |
| Dimming Type | Phase dimming |
| Optic | Spot |
| Housing Rating | IC Airtight |
| Construction Type | New Construction |
