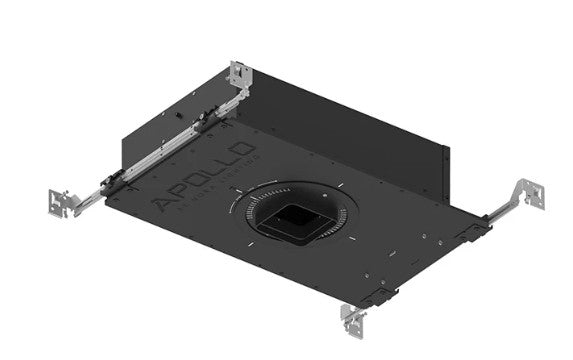

Nora Lighting NHAPIC-3S20L13525DC 3" Apollo Square IC Airtight New Construction Housing w/ 1.625" to 2" Ceiling Collar, 1000lm / 10W, 3500K, Spot Optic, 120-277V; 0-10V Dimming

Product Overview

The Nora Lighting NHAPIC-3S20L13525DC is a 3" square new‑construction recessed housing engineered for IC‑rated ceilings. It delivers 1000 lumens at 10 W and accepts 120–277V input.

Designed for spot lighting and tight‑spacing layouts, the housing is airtight and supports 0–10V dimming control when paired with a compatible control device.

Key Features

• 3 in square aperture for compact, tight‑spacing installations
• 1000 lm output at 10 W (spot optic)
• Multi‑volt input: 120–277 V
• IC‑rated and airtight — can be in direct contact with ceiling insulation
• New‑construction housing for installation prior to finished ceilings
• Compatible with 0–10V dimmers

What this housing does

The NHAPIC-3S20L13525DC is a new‑construction recessed housing designed to accept a 3" square trim and associated LED module or assembly. It provides a spot distribution and is specified at 1000 lumens output with a 10 W power rating.

• Spot optic shapes a focused beam for accent or task illumination.
• IC‑airtight housing is intended for installations where contact with ceiling insulation is allowable by the product rating.

Recommended applications

Appropriate for new‑construction residential or commercial ceiling installations where a compact, square recessed housing is required.

• New‑construction ceilings
• Accent and focused downlighting
• Installations requiring an IC‑rated, airtight housing

Electrical requirements and dimming

The housing accepts 120–277 V input and is compatible with 0–10V dimming control. Use a 0–10V dimmer or control device that is appropriate for the circuit and load.

• Input voltage: 120–277 V
• Dimming: 0–10V control (dimmer must be compatible with the fixture load)

Installation type and compatibility notes

This product is intended for new‑construction installation prior to ceiling finish. Verify trim and LED module compatibility with the 3" square aperture before ordering.

• Mount during new‑construction rough‑in before ceiling finish
• IC‑rated — suitable for contact with insulation as allowed by the rating
• Confirm chosen trim/LED assembly and control devices are compatible

Key technical specifications

Use these verified attributes when specifying or documenting the housing.

• Model / SKU: NHAPIC-3S20L13525DC
• Aperture size: 3 in (square)
• Light output: 1000 lm
• Power: 10 W
• Color temperature: 3500 K
• Optic: Spot
• Voltage: 120–277 V
• Dimming: 0–10V
• Housing rating: IC Airtight
• Construction type: New Construction

Before You Order

Confirm model number, quantity, and that the selected trim or LED assembly is compatible with this 3" square new‑construction housing.

• Confirm compatibility of trim/LED module with NHAPIC-3S20L13525DC
• Verify site circuits match 120–277 V

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Nora Lighting NHAPIC-3S20L13525DC 3" Apollo Square IC Airtight New Construction Housing w/ 1.625" to 2" Ceiling Collar, 1000lm / 10W, 3500K, Spot Optic, 120-277V; 0-10V Dimming. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
