Nora Lighting NHAPIC-3S20L13025DC 3" Apollo Square IC Airtight New Construction Housing w/ 1.625" to 2" Ceiling Collar, 1000lm / 10W, 3000K, Spot Optic, 120-277V; 0-10V Dimming

Product Overview

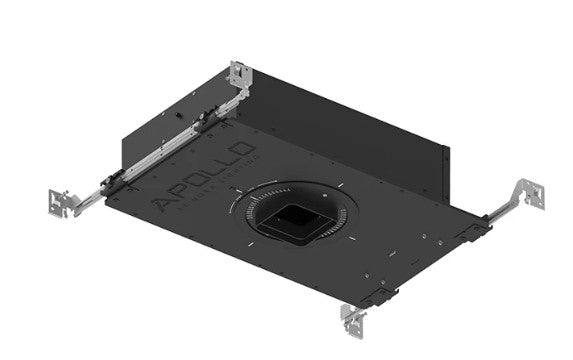

The Nora Lighting NHAPIC-3S20L13025DC is a 3-inch square new-construction recessed housing designed for IC-contact installations. It delivers 1000 lumens at 10 watts with a spot optic and supports 120–277V input and 0–10V dimming.

IC-rated and airtight, the housing is installed before the ceiling is finished and provides a compact aperture option for accent or general recessed lighting in residential and commercial new-construction projects.

Key Features

• 3 in square aperture
• 1000 lm output at 10 W (spot optic)
• Multi-volt input: 120–277 V
• 0–10V dimming compatible
• IC-rated and airtight
• Designed for new-construction installation

What this housing does

The NHAPIC-3S20L13025DC is a new-construction recessed housing that accepts a 3" square trim and is intended to be installed before the ceiling is finished. It provides a compact aperture option for focused accent or general recessed lighting.

Light output and optic

This SKU is specified to produce 1000 lumens while consuming 10 watts. The listed spot optic shapes the beam for focused accent lighting.

• Lumen output: 1000 lm
• Wattage: 10 W
• Optic: Spot

Voltage and dimming compatibility

The housing accepts multi-volt input rated at 120–277 V and is specified as compatible with 0–10V dimming control.

• Input voltage: 120–277 V
• Dimming: 0–10V compatible

Installation type and IC rating

The unit is IC-rated for contact with ceiling insulation and designated as airtight. It is built for new-construction installation.

• Construction: New-construction housing
• Housing rating: IC-rated and airtight
• Ceiling collar: 1.625" to 2"

Recommended applications

The housing is suitable for new-construction residential and commercial ceilings where a compact square aperture and a spot optic are desired.

• New-construction residential and commercial ceilings
• Accent and general recessed lighting
• Installations where the housing will contact insulation

Before You Order

Confirm the model number and quantity required, and verify the project has 120–277V supply and any 0–10V control compatibility needed.

• Verify the ceiling collar range (1.625" to 2") fits your ceiling thickness.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Nora Lighting NHAPIC-3S20L13025DC 3" Apollo Square IC Airtight New Construction Housing w/ 1.625" to 2" Ceiling Collar, 1000lm / 10W, 3000K, Spot Optic, 120-277V; 0-10V Dimming. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
