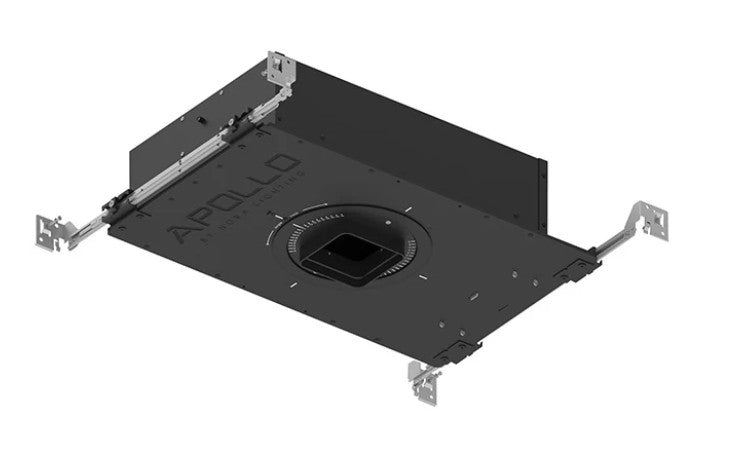

Nora Lighting NHAPIC-3S15L13025DP 3" Apollo Square IC Airtight New Construction Housing w/ 1.25" to 1.625" Ceiling Collar, 1000lm / 10W, 3000K, Spot Optic, 120V; Phase Dimming

Product Overview

The Nora Lighting NHAPIC-3S15L13025DP is a 3" square new-construction recessed housing that delivers 1000 lumens at 10 W on 120 V. It is IC-rated and airtight for installations where the housing contacts insulation.

This model includes a spot optic, phase-dimming compatibility, and an adjustable 1.25" to 1.625" ceiling collar to accommodate finished ceiling thicknesses.

Key Features

• IC-rated, airtight housing
• New-construction design
• 1000 lm output at 10 W on 120 V
• 3000 K color temperature with spot optic
• Phase dimming compatible
• Adjustable 1.25"–1.625" ceiling collar
• 3" square aperture

What this housing does

Answer: The NHAPIC-3S15L13025DP is a compact 3" square new-construction recessed housing that provides 1000 lumens at 10 W and uses a spot optic for focused illumination.

It is IC-rated and airtight, which indicates it can be installed where the housing contacts ceiling insulation and is intended to limit air transfer through the ceiling assembly.

• Output: 1000 lm at 10 W
• Aperture: 3" square
• Optic: Spot

Applications

Answer: Intended for new-construction ceiling installations for general or accent recessed lighting where a 3" square aperture and spot optic are desired.

Its IC-rated airtight construction makes it suitable for installations that call for housings that contact insulation and where reduced air leakage is required.

• New-construction residential or commercial ceilings
• Accent or focused recessed lighting
• IC-rated ceilings where contact with insulation is expected

Electrical and dimming

Answer: This SKU is rated for 120 V operation, consumes 10 W, and provides 1000 lm. The product is specified as compatible with phase dimming.

Ensure the selected phase-control dimmer is appropriate for the LED load and control characteristics when planning dimming on a project.

• Voltage: 120 V
• Wattage: 10 W
• Lumen output: 1000 lm
• Dimming: Phase dimming (requires a compatible phase-control dimmer)

Installation and mounting

Answer: This is a new-construction housing designed to be mounted before the ceiling is finished and includes an adjustable ceiling collar to match finished-ceiling thicknesses within the specified range.

Verify finished ceiling thickness and that the trim selected matches a 3" square aperture for proper fit.

• Construction type: New construction
• Ceiling collar adjustment range: 1.25 in to 1.625 in
• Trim shape: Square — for 3" square aperture trims

Key specifications

Answer: Core technical data for this exact SKU is listed below for specification and comparison.

• Model / SKU: NHAPIC-3S15L13025DP
• Brand: Nora Lighting
• Product series: NHAPIC-3S1
• Aperture size: 3 in (square)
• Lumens: 1000 lm
• Wattage: 10 W
• Color temperature: 3000 K
• Voltage: 120 V
• Optic: Spot
• Housing rating: IC Airtight

Before You Order

Verify finished ceiling thickness falls within the 1.25 in to 1.625 in collar range.

• Confirm finished ceiling thickness is within 1.25"–1.625"
• Verify trim selection matches a 3" square aperture
