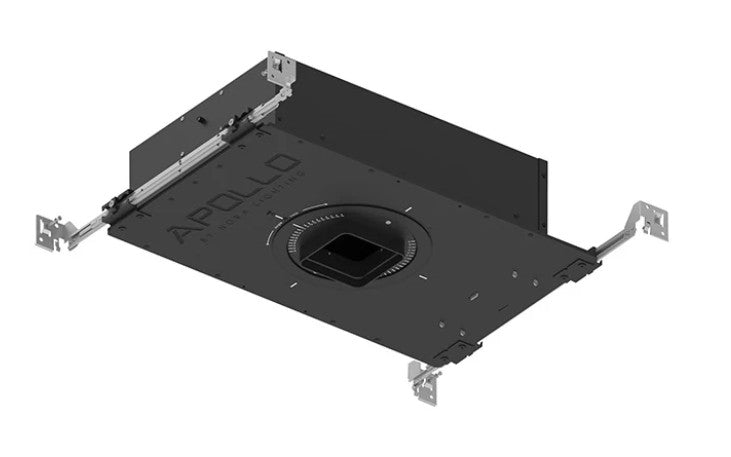

Nora Lighting NHAPIC-3S15L12740DP 3" Apollo Square IC Airtight New Construction Housing w/ 1.25" to 1.625" Ceiling Collar, 1000lm / 10W, 2700K, Narrow Flood Optic, 120V; Phase Dimming

Product Overview

The Nora Lighting NHAPIC-3S15L12740DP is a 3" square new-construction recessed housing specified to deliver 1000 lumens at 10 watts on 120 V. It is IC-rated and airtight and includes a 1.25"–1.625" adjustable ceiling collar.

The housing uses a Narrow Flood optic for a more focused distribution than a typical flood and is compatible with phase-control dimmers.

Key Features

• 1000 lm output at 10 W on 120 V
• 3 in square aperture
• IC-rated airtight housing
• Adjustable ceiling collar fits 1.25" to 1.625" finished-ceiling thickness
• Narrow Flood optic
• New-construction installation
• Phase dimming compatible

What this housing does

The NHAPIC-3S15L12740DP is a new-construction recessed housing for 3" square apertures that provides an enclosure for controlled downlighting in residential or commercial ceilings.

Light output and optic

Specified lumen and power values for this housing are 1000 lm and 10 W on a 120 V supply. The Narrow Flood optic narrows the beam compared with a typical flood distribution, useful where a more focused spread is desired.

• Lumen output: 1000 lm
• Power: 10 W
• Color temperature: 2700 K
• Optic: Narrow Flood

New-construction fit and ceiling collar

This housing is intended for new-construction installations where the unit is mounted before the ceiling is finished. It includes an adjustable ceiling collar to accommodate a range of finished-ceiling thicknesses.

• Aperture size: 3 in (square)
• Ceiling collar adjustable range: 1.25 in to 1.625 in

Electrical and dimming compatibility

The unit is specified for 120 V operation and is compatible with phase-control dimmers. Use a phase-control dimmer that is rated for the connected load.

• Voltage: 120 V
• Dimming: Phase dimming compatibility

IC Airtight rating

The housing is IC-rated and airtight, allowing installation where the housing may contact insulation and helping reduce air transfer through the ceiling assembly.

• Housing rating: IC Airtight

Before You Order

Confirm finished-ceiling thickness and model number before ordering.

• Confirm finished-ceiling thickness is within 1.25"–1.625" for the included ceiling collar.
• Verify the dimmer is a phase-control type rated for the connected load.
• For new-construction use: mount prior to ceiling finish.
