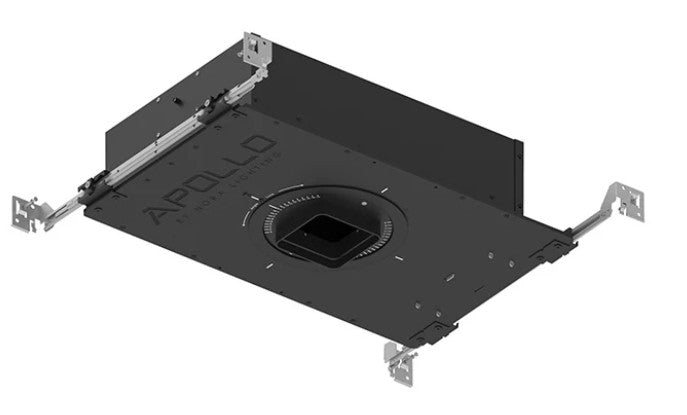

Nora Lighting NHAPIC-3S10L24025DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.875" to 1.25" Ceiling Collar, 1500lm / 15W, 4000K, Spot Optic, 120-277V; 0-10V Dimming

Product Overview

The Nora Lighting NHAPIC-3S10L24025DC is a 3" square new-construction recessed housing rated IC‑airtight. It is specified at 1500 lumens and 15 W, accepts 120–277V input, and is compatible with 0–10V dimming.

Includes a spot optic for focused output and an adjustable ceiling collar that accommodates finished ceiling thicknesses from 0.875 in to 1.25 in.

Key Features

• 1500 lm output at 15 W
• Multi‑volt driver: 120–277 V
• 0–10V dimming compatible
• IC‑rated airtight housing
• Designed for new‑construction installation
• Adjustable ceiling collar: 0.875 in to 1.25 in
• 3 in square aperture

What this housing does

The NHAPIC-3S10L24025DC is a new-construction recessed housing designed to accept a compatible 3" square trim and provide focused or general recessed illumination when installed in ceilings.

• Intended for new‑construction installation (installed before the ceiling finish).
• Designed to be used with 3" square trims and spot optics for concentrated output.

Light output and optic

This model is specified at 1500 lumens and 15 watts and uses a spot optic to concentrate the beam.

• Lumen output: 1500 lm
• Power: 15 W
• Optic: Spot

Voltage and dimming

The housing accepts 120–277 V input and is compatible with 0–10V dimming control.

• Input voltage: 120–277 V
• Dimming: 0–10V compatible (use a 0–10V dimmer rated for the load and wiring in your installation)

Mounting, ceiling collar and sizing

Built for new‑construction applications, the housing has a 3" square aperture and an adjustable ceiling collar to accommodate a range of finished ceiling thicknesses.

• Aperture size: 3 in (square)
• Ceiling collar adjustment: 0.875 in to 1.25 in finished ceiling thickness
• Trim shape: Square — use with matching 3" square trims

IC‑rated and airtight construction

The housing is IC‑rated and described as airtight, which indicates it is intended for installations where the housing may contact insulation and where air-sealing is desired.

• Housing rating: IC Airtight
• Intended for installations where the housing contacts insulation

Before You Order

Verify finished ceiling thickness is within the 0.875 in to 1.25 in collar range and confirm the model and quantity required.

• Match this housing to a compatible 3" square trim.
• Use a 0–10V dimmer rated for the circuit load and voltage.
