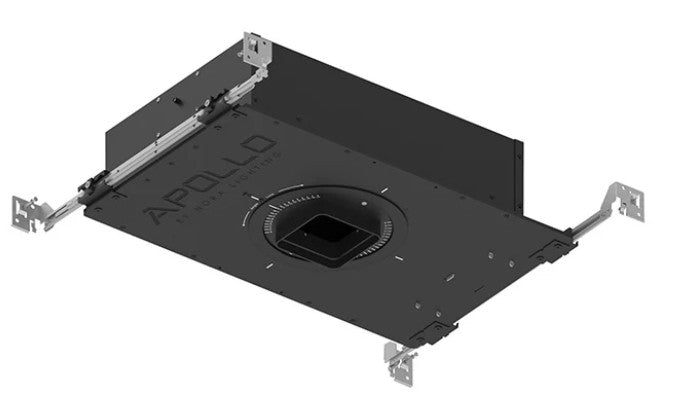

Nora Lighting NHAPIC-3S10L23555DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.875" to 1.25" Ceiling Collar, 1500lm / 15W, 3500K, Flood Optic, 120-277V; 0-10V Dimming

Product Overview

The Nora Lighting NHAPIC-3S10L23555DC is a 3" square new-construction recessed housing rated IC Airtight. It provides 1500 lumens at 15 W, accepts 120–277 V input, and supports 0–10V dimming.

It includes an adjustable 0.875"–1.25" ceiling collar and a flood optic, and is designed for installation before the finished ceiling is in place.

Key Features

• IC-rated airtight housing for contact with ceiling insulation
• New-construction design for installation before the finished ceiling
• 1500 lm output at 15 W (3500 K)
• Multi-volt input: 120–277 V; compatible with 0–10V dimming controls
• Flood optic
• Adjustable ceiling collar: 0.875" to 1.25" finished-ceiling thickness
• 3" square aperture

What this housing does

The NHAPIC-3S10L23555DC is a 3" square recessed housing for new-construction installation. It delivers 1500 lumens at 15 W and uses a flood optic to provide general-area illumination.

The housing is IC-rated and airtight, which indicates it can be installed in locations where it may contact ceiling insulation and where reduced air leakage is desired.

• Aperture: 3" square
• Light output: 1500 lm at 15 W
• Optic: Flood

Applications and typical installations

This housing is intended for new-construction ceilings. Its 3" square aperture and flood optic are suitable for general recessed lighting in residential or commercial ceilings where a compact footprint is required.

The IC Airtight designation applies to installations where the housing is in contact with insulation.

• New-construction ceilings
• General recessed lighting where a 3" square aperture is desired
• Installations requiring IC-rated housings

Electrical and dimming compatibility

The unit accepts 120–277 V supply and is described as compatible with 0–10V dimming controls. Use a 0–10V dimmer rated for the connected load and follow the dimmer manufacturer's wiring instructions.

Verify site wiring meets the required voltage range prior to installation.

• Input voltage: 120–277 V
• Dimming: 0–10V control compatible

Mounting, ceiling collar, and aperture information

Built for new-construction mounting, the housing includes an adjustable ceiling collar to match finished-ceiling thicknesses. The collar adjusts from 0.875" to 1.25".

Plan layout to accommodate the 3" square aperture and confirm finished-ceiling thickness during installation preparation.

• Construction type: New construction
• Ceiling collar adjustment: 0.875" to 1.25"
• Aperture size: 3" square

Before You Order

Verify finished ceiling thickness falls within the 0.875"–1.25" collar range and confirm 0–10V dimmer compatibility with your control system.

• Verify finished ceiling thickness (0.875"–1.25")
• Confirm 0–10V dimmer is rated for the connected load
