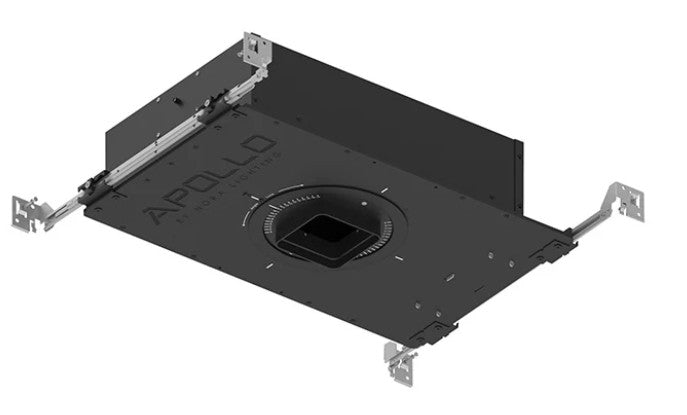

Nora Lighting NHAPIC-3S10L23540DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.875" to 1.25" Ceiling Collar, 1500lm / 15W, 3500K, Narrow Flood Optic, 120-277V; 0-10V Dimming

Product Overview

The Nora Lighting NHAPIC-3S10L23540DC is a 3" square new-construction recessed housing rated IC airtight. It provides 1500 lumens at 15 watts, accepts 120–277V input, and supports 0–10V dimming.

It includes an adjustable 0.875"–1.25" ceiling collar and a Narrow Flood optic intended for focused accent lighting in compact layouts.

Key Features

• 3" square aperture with Narrow Flood optic
• 1500 lm at 15 W, 3500 K color temperature
• Multi-volt 120–277 V input
• 0–10V dimming
• IC-rated airtight housing
• New-construction design
• Adjustable ceiling collar fits 0.875" to 1.25" finished ceiling thickness

What this housing does

The NHAPIC-3S10L23540DC is a new-construction recessed housing with a 3" square aperture. It provides a nominal output of 1500 lumens at 15 watts and uses a Narrow Flood optic to concentrate the light distribution.

• Provides 1500 lm while drawing 15 W
• Narrow Flood optic for more focused distribution

Where to use it

This IC-rated airtight housing is intended for new-construction residential and commercial ceilings and can be installed where the housing may come into contact with insulation.

• New-construction residential and commercial ceilings
• Situations where an IC-rated airtight housing is required
• Applications needing a smaller 3" square aperture

Electrical and dimming compatibility

The unit accepts 120–277 V input. It supports 0–10V dimming; pair with a compatible 0–10V control device rated for the connected load.

• Voltage: 120–277 V (multi-volt)
• Dimming: 0–10V (requires compatible control device)

Mounting and ceiling fit

The NHAPIC-3S10L23540DC is designed for installation before the ceiling is finished. The adjustable ceiling collar accommodates finished-ceiling thicknesses from 0.875" to 1.25" to help align the trim.

• Construction type: New construction (install before ceiling finish)
• Ceiling collar adjustment range: 0.875" to 1.25"

Key specifications

Reference the following specifications for ordering and comparison.

• Model / SKU: NHAPIC-3S10L23540DC
• Brand: Nora Lighting
• Product Type: Recessed Housing
• Product Series: NHAPIC-3S1
• Aperture Size: 3 in (square)
• Lumens: 1500 lm
• Wattage: 15 W
• Color Temperature: 3500 K
• Optic: Narrow Flood
• Housing Rating: IC Airtight
• Voltage: 120–277 V
• Dimming: 0–10V
• Construction Type: New construction
• Ceiling Collar Range: 0.875" to 1.25"

Before You Order

Verify finished-ceiling thickness is within the 0.875"–1.25" collar range and confirm the project requires a new-construction IC-rated airtight housing.

• Check finished ceiling thickness (0.875"–1.25")
• If dimming is required, select a compatible 0–10V control device rated for the fixture load

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Nora Lighting NHAPIC-3S10L23540DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.875" to 1.25" Ceiling Collar, 1500lm / 15W, 3500K, Narrow Flood Optic, 120-277V; 0-10V Dimming. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
