Nora Lighting NHAPIC-3S10L23525DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.875" to 1.25" Ceiling Collar, 1500lm / 15W, 3500K, Spot Optic, 120-277V; 0-10V Dimming

Product Overview

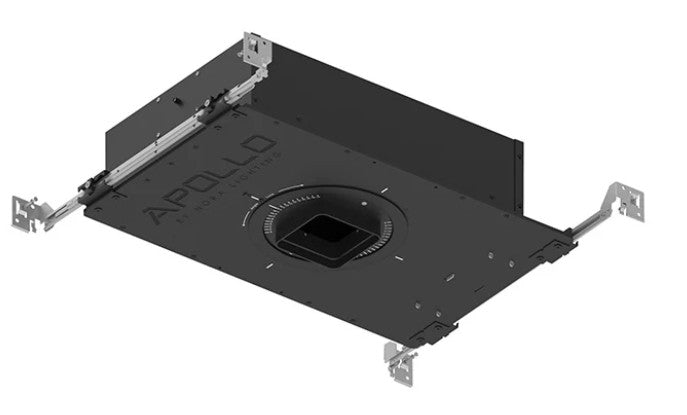

The Nora Lighting NHAPIC-3S10L23525DC is a 3-inch square new-construction recessed housing for IC-rated ceiling installations. It provides 1500 lumens at 15 W, accepts 120–277 V input, and supports 0–10V dimming.

The housing includes a spot optic for directed light and an adjustable ceiling collar that fits finished ceiling thicknesses from 0.875 in to 1.25 in.

Key Features

• 3 in square aperture
• 1500 lm at 15 W with spot optic
• Multi-volt 120–277 V input
• 0–10V dimming compatibility
• IC-rated airtight housing
• New-construction design
• Adjustable 0.875 in to 1.25 in ceiling collar

What this housing does

The NHAPIC-3S10L23525DC is a compact, IC-rated recessed housing for 3-inch square downlight installations in new-construction ceilings. It is designed to be used with a spot optic to provide focused recessed illumination.

• Designed for new-construction installation (installed before ceiling finish).
• Square 3 in aperture for compact layouts.
• Spot optic provides a narrow beam distribution.

Electrical and dimming

This model accepts 120–277 V input and is listed with 15 W power and 1500 lm output. It supports standard 0–10V dimming control.

• Input voltage: 120–277 V.
• Power: 15 W; lumen output: 1500 lm.
• Dimming: 0–10V control — use a 0–10V dimmer rated for the circuit load.

Installation and ceiling fit

The housing is IC-rated and airtight for contact with ceiling insulation and includes an adjustable ceiling collar to match finished ceiling thickness.

• IC-rated airtight housing (suitable for contact with insulation).
• Ceiling collar adjusts from 0.875 in to 1.25 in.
• Intended for new-construction mounting before ceiling finishes are installed.

Recommended applications

Use this housing in new-construction residential or commercial ceilings where a compact square aperture and directed recessed lighting are needed.

• Accent and general recessed lighting.
• Installations where housings contact insulation (IC-rated).
• Layouts requiring a 3 in square aperture.

Before You Order

Verify finished-ceiling thickness is within the 0.875 in to 1.25 in collar range and choose a 0–10V dimmer rated for the circuit load.

• Confirm finished ceiling thickness fits the adjustable collar (0.875 in–1.25 in).
• Pair with a 0–10V dimmer rated for the fixture load and line voltage.
