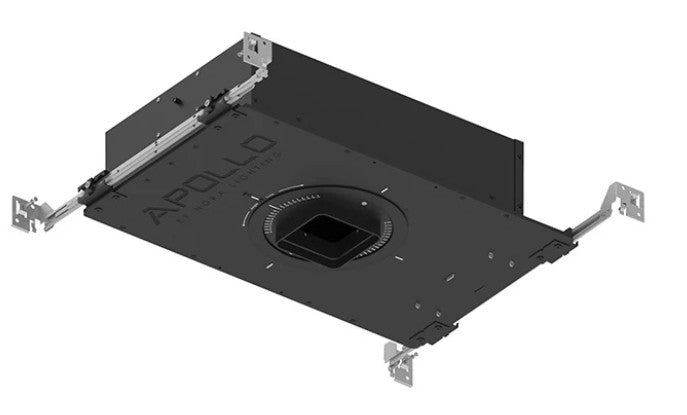

Nora Lighting NHAPIC-3S10L23055DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.875" to 1.25" Ceiling Collar, 1500lm / 15W, 3000K, Flood Optic, 120-277V; 0-10V Dimming

Product Overview

The Nora Lighting NHAPIC-3S10L23055DC is a 3 in square new-construction recessed housing designed for IC-rated ceilings. It provides 1500 lumens at 15 watts, includes a flood optic, supports 120–277 V input, and is compatible with 0–10V dimming.

The housing features an adjustable 0.875"–1.25" ceiling collar and a square 3" aperture intended for compact layouts and general or accent recessed lighting.

Key Features

• IC-rated, airtight housing for contact with ceiling insulation
• New-construction mounting
• 1500 lm at 15 W (3000 K) with flood optic
• Multi-volt 120–277 V input
• 0–10V dimming compatible
• Adjustable ceiling collar: 0.875" to 1.25"
• 3" square aperture

What this housing does

The NHAPIC-3S10L23055DC is a new-construction recessed housing with a 3" square aperture. It is IC-rated and airtight, allowing installation where the housing may contact ceiling insulation.

Electrical and dimming compatibility

The housing is specified for 120–277 V input and is compatible with 0–10V dimming control. Use a 0–10V dimmer rated for the connected load.

• Voltage: 120–277 V
• Dimming: 0–10V (requires compatible dimmer)

Mounting and ceiling fit

Designed for new-construction installation, the housing installs before the ceiling finish. The adjustable ceiling collar accommodates a range of finished-ceiling thicknesses so the trim aligns with the ceiling plane.

• Construction type: New-construction
• Ceiling collar range: 0.875" to 1.25" finished thickness

Light output and optic

The integrated LED specification lists 1500 lumens at 15 watts with a 3000 K color temperature. The flood optic shapes the beam for general-area illumination within the 3" square aperture.

• Lumen output: 1500 lm
• Power: 15 W
• Color temperature: 3000 K
• Optic: Flood

Key product specifications

Refer to the specifications section for model, electrical, and physical details.

Before You Order

Confirm the finished ceiling thickness matches the 0.875"–1.25" collar range and that you will use a compatible 0–10V dimmer rated for the installed load.

• Confirm finished ceiling thickness is between 0.875" and 1.25".
• Confirm use of a 0–10V dimmer compatible with the fixture load.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Nora Lighting NHAPIC-3S10L23055DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.875" to 1.25" Ceiling Collar, 1500lm / 15W, 3000K, Flood Optic, 120-277V; 0-10V Dimming. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
