Nora Lighting NHAPIC-3S10L23040DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.875" to 1.25" Ceiling Collar, 1500lm / 15W, 3000K, Narrow Flood Optic, 120-277V; 0-10V Dimming

(No Ratings)
SKU: NHAPIC-3S10L23040DC
Price: $510.00
Free shipping on orders over $1,500

Description

Product Overview

The Nora Lighting NHAPIC-3S10L23040DC is a 3-inch square recessed housing for new-construction ceilings. It is IC Airtight and delivers 1500 lumens at 15 watts, with a 3000K color temperature and Narrow Flood optic.

This model operates on 120–277V and supports 0-10V dimming. Its adjustable ceiling collar accommodates finished ceiling thicknesses from 0.875 to 1.25 inches.

Key Features

  • 3-inch square aperture with Narrow Flood optic
  • IC Airtight housing for contact with ceiling insulation
  • New-construction configuration
  • 1500 lm output at 15 W; 3000K color temperature
  • 120–277V input and 0-10V dimming
  • Adjustable collar for 0.875–1.25-inch finished ceilings

Output and Narrow Flood Optic

The NHAPIC-3S10L23040DC produces 1500 lumens at 15 watts, with a 3000K color temperature. Its Narrow Flood optic shapes the beam for focused accent lighting.

New-Construction and Ceiling Fit

This 3-inch square housing is built for new-construction installation before the ceiling is finished. Its IC Airtight rating allows the housing to contact ceiling insulation.

  • Adjustable ceiling collar range: 0.875 to 1.25 inches
  • Square trim shape with a 3-inch aperture

Voltage and Dimming

The housing operates on 120–277V and supports 0-10V dimming. Pair it with a 0-10V-control dimmer rated for the load.

Before You Order

Confirm that the finished ceiling thickness is within the 0.875–1.25-inch collar range and that the planned dimmer is a 0-10V model rated for the load.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Nora Lighting NHAPIC-3S10L23040DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.875" to 1.25" Ceiling Collar, 1500lm / 15W, 3000K, Narrow Flood Optic, 120-277V; 0-10V Dimming. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandNora Lighting
Model / SKUNHAPIC-3S10L23040DC
Product TypeRecessed housing
SeriesNHAPIC-3S1
Aperture Size3 in
Trim ShapeSquare
Lumens1500 lm
Wattage15 W
Voltage120–277 V
Color Temperature3000 K
OpticNarrow Flood
Dimming0-10V
Housing RatingIC Airtight
Construction TypeNew construction
Ceiling Collar Range0.875 in to 1.25 in

Comments

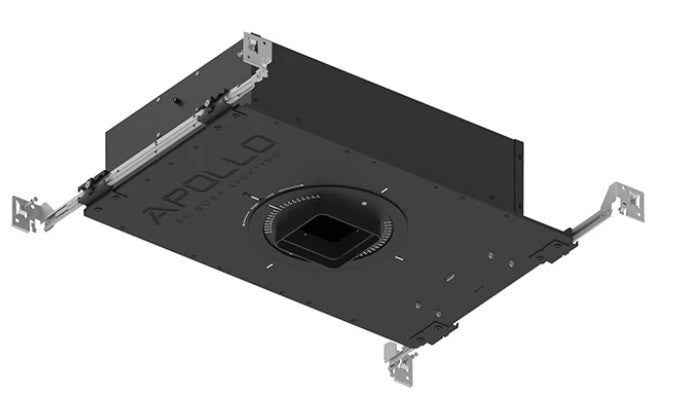

Nora Lighting NHAPIC-3S10L23040DC Recessed Housing
