Nora Lighting NHAPIC-3S10L23025DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.875" to 1.25" Ceiling Collar, 1500lm / 15W, 3000K, Spot Optic, 120-277V; 0-10V Dimming

Product Overview

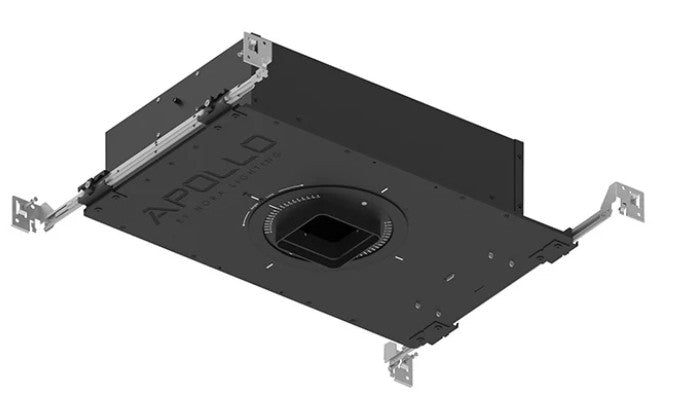

The Nora Lighting NHAPIC-3S10L23025DC is a 3-inch square new-construction recessed housing for IC-rated ceilings. It is specified at 1500 lumens and 15 W, uses a spot optic, accepts 120–277 V input, and supports 0–10V dimming.

Includes an adjustable 0.875 in to 1.25 in ceiling collar to match finished-ceiling thicknesses for which it is intended to be installed prior to the finished ceiling.

Key Features

• 3 in square aperture
• 1500 lm output at 15 W
• Multi-volt 120–277 V input
• Compatible with 0–10V dimming
• IC-rated and airtight
• Adjustable 0.875" to 1.25" ceiling collar
• New-construction housing

Function and intended use

This is a new-construction recessed housing with a 3" square aperture. It is intended to be installed before the ceiling finish and used with compatible 3" square trims or LED modules to provide recessed lighting.

• For new-construction residential or commercial ceilings
• Suitable for general or accent recessed lighting when paired with an appropriate trim or module
• Compact square aperture for tighter spacing layouts

Light output and optic

The housing is specified at 1500 lumens and 15 watts and is described with a spot optic to produce a focused beam when used with the matching trim or module.

• Lumens: 1500 lm
• Wattage: 15 W
• Optic: Spot

Voltage and dimming

Accepts 120–277 V input and is compatible with 0–10V dimming controls. Use a 0–10V dimmer that is compatible with the system and rated for the connected load.

• Input voltage: 120–277 V
• Dimming: 0–10V

Mounting, ceiling collar and construction type

Designed for new-construction installation. An adjustable ceiling collar accommodates finished-ceiling thicknesses within the specified range.

• Construction type: New construction
• Ceiling collar range: 0.875 in to 1.25 in (finished-ceiling thickness)

IC and airtight rating

The housing is IC-rated and described as airtight, which indicates it is intended for installation where it may be in contact with ceiling insulation and to limit airflow between interior and attic/plenum spaces.

• Rating: IC Airtight

Before You Order

Confirm finished ceiling thickness fits the 0.875"–1.25" collar range and that you will pair this housing with a compatible 3" square trim or module and a 0–10V dimmer rated for the circuit load.

• Verify finished ceiling thickness is within 0.875" to 1.25"
• Trim or LED module sold separately
• Use a 0–10V dimmer rated for the connected load and voltage
