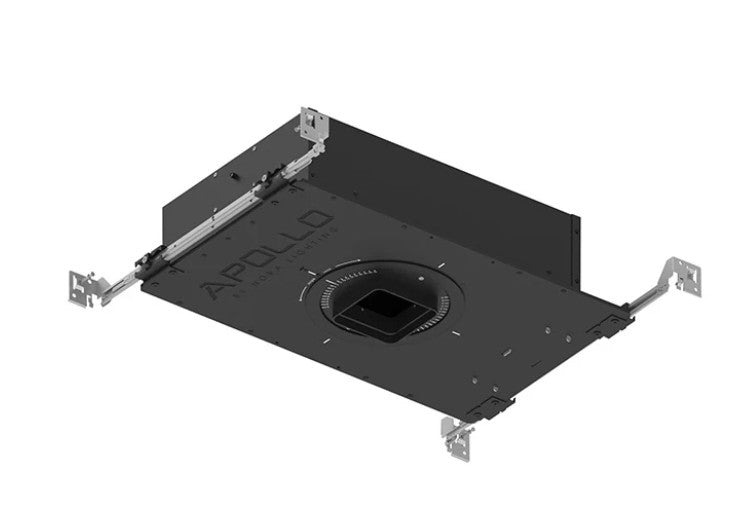

Nora Lighting NHAPIC-3S05L24055DP 3" Apollo Square IC Airtight New Construction Housing w/ 0.5" to 0.875" Ceiling Collar, 1500lm / 15W, 4000K, Flood Optic, 120V; Phase Dimming

Product Overview

The Nora Lighting NHAPIC-3S05L24055DP is a 3" square new-construction recessed housing that delivers 1500 lumens at 15 W on 120 V. It is IC-rated for contact with ceiling insulation and features a flood optic and phase dimming compatibility.

The adjustable ceiling collar fits finished-ceiling thicknesses from 0.5" to 0.875", and the compact square aperture suits tight-spacing layouts for general and accent recessed lighting.

Key Features

• 3 in square aperture
• 1500 lm output at 15 W (120 V)
• 4000 K color temperature
• IC-rated airtight housing (approved for contact with insulation)
• Phase dimming compatible
• Flood optic for general-area illumination
• Adjustable ceiling collar: 0.5 in to 0.875 in
• New-construction mounting

What this housing does

The NHAPIC-3S05L24055DP is a new-construction recessed housing with a 3 in square aperture that installs before the ceiling is finished and houses the light engine and optic for recessed lighting.

• Square aperture suited to compact and tight-spacing layouts
• Flood optic provides a wider distribution for general illumination
• IC Airtight rating allows contact with ceiling insulation

Light output and electrical

Specified output is 1500 lumens at 15 W on a 120 V supply, with a 4000 K color temperature.

• Lumen output: 1500 lm
• Power: 15 W
• Voltage: 120 V
• Color temperature: 4000 K

New-construction installation and ceiling fit

This housing is intended for new-construction installations where it is mounted before the ceiling is finished. The adjustable ceiling collar accommodates finished-ceiling thicknesses within the specified range.

• Mounting: New construction
• Adjustable ceiling collar range: 0.5 in to 0.875 in
• IC-rated for contact with insulation

Dimming and controls compatibility

The housing is compatible with phase-control dimming. Use a phase dimmer that is rated for the installed load.

• Dimming type: Phase dimming
• Confirm dimmer compatibility with the fixture load

Recommended applications

Suitable for new-construction residential and commercial ceilings where a compact 3 in square aperture, flood distribution, and IC contact rating are required.

• New-construction residential ceilings
• Commercial ceilings and corridors
• General and accent recessed lighting

Before You Order

Verify finished-ceiling thickness is within the 0.5 in to 0.875 in collar range and select a phase-control dimmer rated for the fixture load.

• Confirm finished ceiling thickness is between 0.5" and 0.875"
• Pair with a phase-control dimmer rated for the installed load
