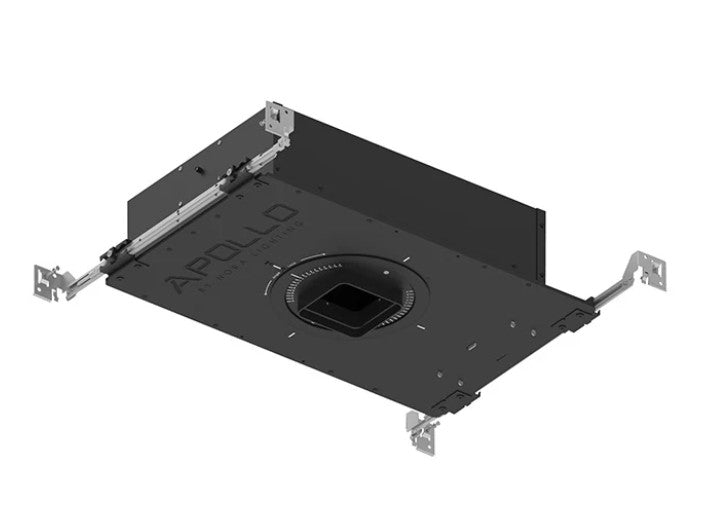

Nora Lighting NHAPIC-3S05L23540DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.5" to 0.875" Ceiling Collar, 1500lm / 15W, 3500K, Narrow Flood Optic, 120-277V; 0-10V Dimming

Product Overview

The Nora Lighting NHAPIC-3S05L23540DC is a 3" square new-construction recessed housing designed for IC-rated installations. It delivers 1500 lumens from 15 watts and accepts 120–277V input with 0–10V dimming control.

Features include a Narrow Flood optic for a focused beam, an adjustable 0.5"–0.875" ceiling collar to fit common finished-ceiling thicknesses, and airtight construction.

Key Features

• 3" square aperture
• 1500 lm output at 15 W (Narrow Flood optic)
• 120–277V input
• 0–10V dimming compatible
• IC-rated, airtight housing
• Adjustable ceiling collar fits 0.5" to 0.875" finished-ceiling thickness
• Designed for new-construction installation

What this housing does

The NHAPIC-3S05L23540DC is a 3" square new-construction recessed housing that provides a compact aperture for applications needing a narrower beam. It is specified at 1500 lumens and 15 watts with a Narrow Flood optic.

Recommended applications

Intended for new-construction residential or commercial ceilings where an IC-rated, airtight housing is required. The 3" square opening is suitable for tighter spacing and accent lighting.

• New-construction residential and commercial ceilings
• Accent lighting and locations requiring a smaller aperture
• Installations where an IC-rated housing is specified

Electrical and dimming

The housing accepts 120–277V input. Dimming is via 0–10V control; use a compatible 0–10V dimmer or control system rated for the connected load.

• Input voltage: 120–277V
• Dimming: 0–10V (requires compatible controller/dimmer)

Installation and mounting

Designed for new-construction installation. The unit is IC-rated and described as airtight. The adjustable ceiling collar fits finished-ceiling thicknesses between 0.5" and 0.875".

• Construction type: New construction
• IC-rated and airtight
• Ceiling collar range: 0.5" to 0.875" finished thickness

Key specifications

Quick technical facts for specifying the NHAPIC-3S05L23540DC.

• Brand: Nora Lighting
• Model / SKU: NHAPIC-3S05L23540DC
• Product Type: Recessed Housing
• Product Series: NHAPIC-3S0
• Aperture size: 3" (square)
• Lumens: 1500 lm
• Wattage: 15 W
• Color temperature: 3500 K
• Optic: Narrow Flood
• Voltage: 120–277 V
• Dimming type: 0–10V
• Housing rating: IC Airtight
• Construction: New construction
• Ceiling collar range: 0.5" to 0.875"

Before You Order

Verify finished-ceiling thickness falls within the 0.5" to 0.875" collar range and confirm your dimming system is 0–10V compatible.

• Confirm finished-ceiling thickness: 0.5"–0.875"
• Ensure 0–10V dimmer/controller compatibility
