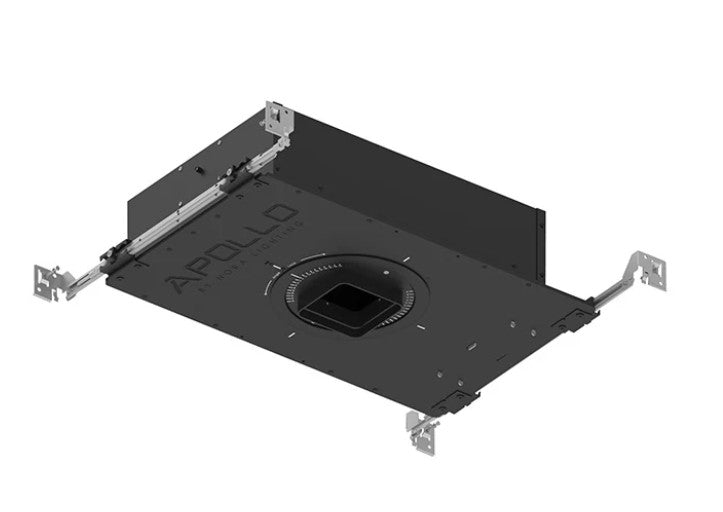

Nora Lighting NHAPIC-3S05L23055DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.5" to 0.875" Ceiling Collar, 1500lm / 15W, 3000K, Flood Optic, 120-277V; 0-10V Dimming

Product Overview

The Nora Lighting NHAPIC-3S05L23055DC is a 3" square new-construction recessed housing rated IC Airtight. It provides 1500 lumens at 15 W with a 3000 K color temperature and a flood optic for general illumination.

The housing accepts 120–277 V input and is compatible with 0–10V dimming controls.

Key Features

• 3 in square aperture with flood optic for broad general illumination
• 1500 lm output at 15 W (3000 K)
• IC-rated airtight housing
• Designed for new-construction installation
• Adjustable ceiling collar fits 0.5" to 0.875" finished-ceiling thickness
• Multi-volt 120–277 V input; compatible with 0–10V dimming

What this housing does

The NHAPIC-3S05L23055DC is a compact 3" square recessed housing for new-construction installs. The flood optic provides a wider beam distribution intended for general illumination.

• Aperture: 3 in square
• Optic: Flood — wider beam distribution
• Output: 1500 lumens at 15 W (3000 K)

Electrical and dimming compatibility

The housing accepts 120–277 V input and is listed as compatible with 0–10V dimming controls. Use a 0–10V control rated for the circuit load.

• Voltage: 120–277 V
• Dimming: 0–10V dimming compatible

New-construction installation and ceiling fit

Built for new-construction mounting, the housing includes an adjustable ceiling collar to accommodate a range of finished-ceiling thicknesses.

• Construction type: New construction — install before ceiling finish
• Ceiling collar range: 0.5 in to 0.875 in finished thickness
• Housing rating: IC Airtight

Recommended applications

Suitable for new-construction residential and commercial ceilings where an IC-rated, compact square recessed housing is required.

• New-construction residential ceilings
• New-construction commercial ceilings
• General recessed lighting and accent illumination

Technical specifications

Key technical details for planning and specification.

• Model / SKU: NHAPIC-3S05L23055DC
• Brand: Nora Lighting
• Product series: NHAPIC-3S0
• Aperture size: 3 in
• Trim shape: Square
• Lumens: 1500 lm
• Wattage: 15 W
• Color temperature: 3000 K
• Voltage: 120–277 V
• Dimming type: 0–10V dimming
• Optic: Flood
• Housing rating: IC Airtight
• Construction type: New Construction
• Ceiling collar range: 0.5 in to 0.875 in

Before You Order

Confirm the model number and that finished ceiling thickness fits the 0.5" to 0.875" collar range.

• Confirm finished ceiling thickness is within 0.5" to 0.875"
• Verify selected 0–10V control is rated for the circuit load

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Nora Lighting NHAPIC-3S05L23055DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.5" to 0.875" Ceiling Collar, 1500lm / 15W, 3000K, Flood Optic, 120-277V; 0-10V Dimming. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
