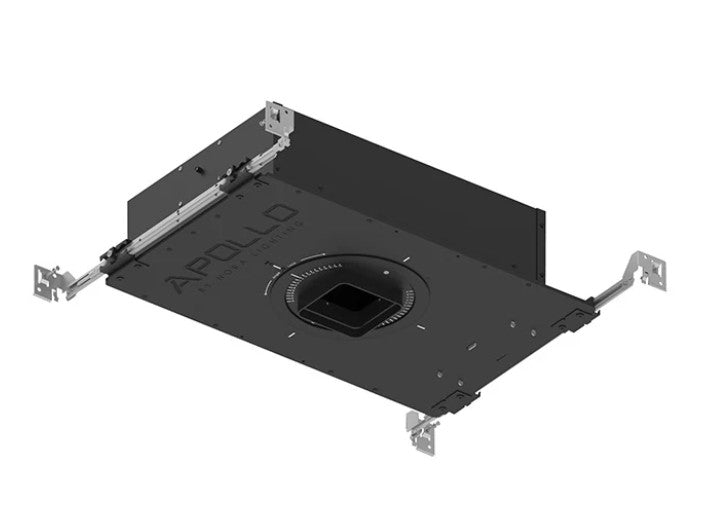

Nora Lighting NHAPIC-3S05L23040DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.5" to 0.875" Ceiling Collar, 1500lm / 15W, 3000K, Narrow Flood Optic, 120-277V; 0-10V Dimming

Product Overview

The Nora Lighting NHAPIC-3S05L23040DC is a 3" square new-construction recessed housing rated IC Airtight for direct contact with ceiling insulation. It provides 1500 lumens at 15 W, operates on 120–277 V, and supports 0–10V dimming.

It includes a Narrow Flood optic and an adjustable 0.5"–0.875" ceiling collar to accommodate a range of finished-ceiling thicknesses.

Key Features

• 3" square aperture new-construction recessed housing
• 1500 lm output at 15 W
• 120–277 V input
• 0–10V dimming compatibility
• IC Airtight housing
• Narrow Flood optic
• Adjustable ceiling collar: 0.50" to 0.875" finished-ceiling thickness

What this housing does

The NHAPIC-3S05L23040DC is a new-construction recessed housing with a 3" square aperture. It is IC Airtight and intended for installation before the ceiling finish is applied.

• Provides a compact housing for 3" square recessed lighting
• Designed for new-construction installations

Electrical and dimming requirements

The housing accepts 120–277 V input and supports 0–10V dimming. Use a 0–10V dimmer or control device that is rated for the installed load and the building voltage.

• Input voltage: 120–277 V
• Dimming: 0–10V (requires compatible controller)

Mounting and ceiling compatibility

This product is for new-construction mounting. It is IC Airtight, which allows contact with ceiling insulation. The ceiling collar is adjustable to fit specified finished-ceiling thicknesses.

• Mounting type: New construction
• IC Airtight: suitable for contact with insulation
• Ceiling collar range: 0.50" to 0.875"

Optic characteristics and typical uses

The Narrow Flood optic provides a more focused beam compared with wider flood optics. This is commonly used for accent or targeted illumination where a tighter beam is preferred.

• Optic: Narrow Flood
• Typical uses: accent or targeted recessed lighting in new-construction ceilings

Technical specifications

Reference the specifications below to confirm compatibility with trim, ceiling thickness, and control systems.

Before You Order

Verify finished ceiling thickness falls within the 0.50"–0.875" collar range and confirm you will use a 0–10V dimmer/controller rated for the load and voltage.

• Confirm trim selection fits a 3" square aperture
• Verify circuit voltage is 120–277 V and dimmer is 0–10V compatible
• For new-construction installs, plan mounting prior to finishing the ceiling

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Nora Lighting NHAPIC-3S05L23040DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.5" to 0.875" Ceiling Collar, 1500lm / 15W, 3000K, Narrow Flood Optic, 120-277V; 0-10V Dimming. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
