Nora Lighting NHAPIC-3S05L23025DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.5" to 0.875" Ceiling Collar, 1500lm / 15W, 3000K, Spot Optic, 120-277V; 0-10V Dimming
Description
Product Overview

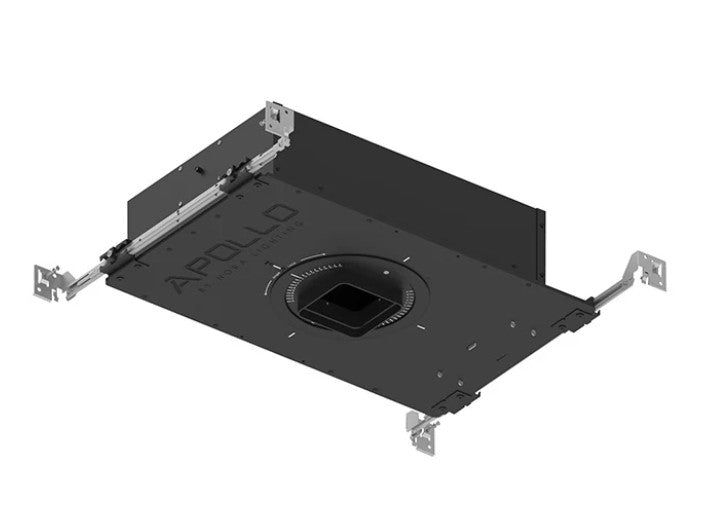

The Nora Lighting NHAPIC-3S05L23025DC is a 3-inch square recessed housing for new-construction ceilings. It is IC airtight and has a spot optic.
The model is specified at 1500 lm and 15 W, with 3000 K color temperature, 120–277 V input and 0-10V dimming. Its ceiling collar range is 0.5 to 0.875 in.
Key Features
- 3-inch square recessed configuration for new construction
- IC airtight housing rated for direct contact with ceiling insulation
- 1500 lm at 15 W, with 3000 K color temperature and spot optic
- 120–277 V input and 0-10V dimming
- Ceiling collar range of 0.5 to 0.875 in
New-construction 3-inch square housing
The NHAPIC-3S05L23025DC is a new-construction housing intended to be mounted before the ceiling is finished. Its listed configuration has a 3-inch aperture and square trim shape.
Light output and spot optic
This model is specified at 1500 lm and 15 W, with a 3000 K color temperature. Its spot optic shapes the beam for focused accent lighting.
Voltage and dimming
The housing is specified for 120–277 V input and 0-10V dimming. Pair it with a 0-10V-control dimmer rated for the load.
Ceiling collar range and IC airtight rating
The ceiling collar range is 0.5 to 0.875 in for finished-ceiling thickness. The housing is IC-rated for direct contact with ceiling insulation.
Before You Order
Confirm the finished ceiling thickness is within the 0.5 to 0.875 in collar range, and use a 0-10V-control dimmer rated for the load.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Nora Lighting NHAPIC-3S05L23025DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.5" to 0.875" Ceiling Collar, 1500lm / 15W, 3000K, Spot Optic, 120-277V; 0-10V Dimming. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Nora Lighting |
|---|---|
| Model / SKU | NHAPIC-3S05L23025DC |
| Product Type | Recessed housing |
| Series | NHAPIC-3S0 |
| Aperture Size | 3 in |
| Trim Shape | Square |
| Lumens | 1500 lm |
| Wattage | 15 W |
| Voltage | 120–277 V |
| Color Temperature | 3000 K |
| Dimming Control Method | 0-10V dimming |
| Optic | Spot |
| Housing Rating | IC Airtight |
| Construction Type | New Construction |
| Ceiling Collar Range | 0.5 in to 0.875 in |
