Nora Lighting NHAPIC-3S05L22755DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.5" to 0.875" Ceiling Collar, 1500lm / 15W, 2700K, Flood Optic, 120-277V; 0-10V Dimming

Product Overview

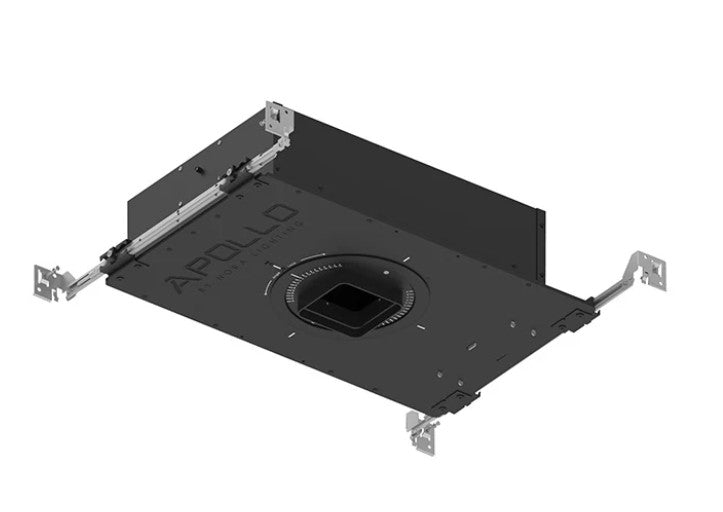

The Nora Lighting NHAPIC-3S05L22755DC is a 3" square new-construction recessed housing rated IC Airtight. It provides 1500 lumens at 15 W on 120–277 V and uses a Flood optic for general lighting.

The adjustable ceiling collar fits finished thicknesses from 0.5" to 0.875". The housing supports 0–10V dimming.

Key Features

• IC-rated, airtight housing
• New-construction design
• 1500 lm output at 15 W on 120–277 V
• 2700K color temperature with Flood optic
• Supports 0–10V dimming
• Adjustable ceiling collar: 0.5"–0.875" finished thickness
• 3" square aperture

What this housing does

The NHAPIC-3S05L22755DC is a 3" square new-construction recessed housing that delivers 1500 lumens at 15 watts. Its Flood optic provides a broader beam distribution appropriate for general recessed lighting.

• Aperture: 3" square
• Output: 1500 lm at 15 W
• Optic: Flood

Installation and ceiling requirements

Built for new-construction installations, the housing is installed before the ceiling finish. It is IC-rated and airtight, which allows the housing to be in contact with ceiling insulation according to the IC Airtight designation.

• Construction type: New construction
• IC Airtight: housing is rated for contact with insulation
• Ceiling collar range: 0.5" to 0.875" finished thickness — confirm your finished thickness fits within this range

Electrical and dimming compatibility

The housing accepts 120–277 V input and supports 0–10V dimming control. Use a compatible 0–10V control/dimmer that is rated for the connected load.

• Voltage: 120–277 V
• Dimming: 0–10V

Optics and typical applications

Equipped with a Flood optic and specified at 2700K, the housing is suitable for general and accent recessed lighting in residential and commercial ceilings where a warm light and broader beam are desired.

• Color temperature: 2700K
• Typical applications: new-construction residential and commercial ceilings, general and accent recessed lighting

Key specifications

Quick technical facts to confirm fit and function for this exact SKU.

• Brand / Model: Nora Lighting NHAPIC-3S05L22755DC
• Aperture size: 3 in (square)
• Lumens / Wattage: 1500 lm / 15 W
• Optic: Flood
• Housing rating: IC Airtight
• Construction: New construction
• Ceiling collar range: 0.5" to 0.875"
• Voltage: 120–277 V
• Dimming: 0–10V

Before You Order

Confirm the model number and finished ceiling thickness before ordering.

• Verify finished ceiling thickness is between 0.5" and 0.875".
• Ensure a compatible 0–10V control/dimmer will be used.
• Confirm the site supply matches 120–277 V.
