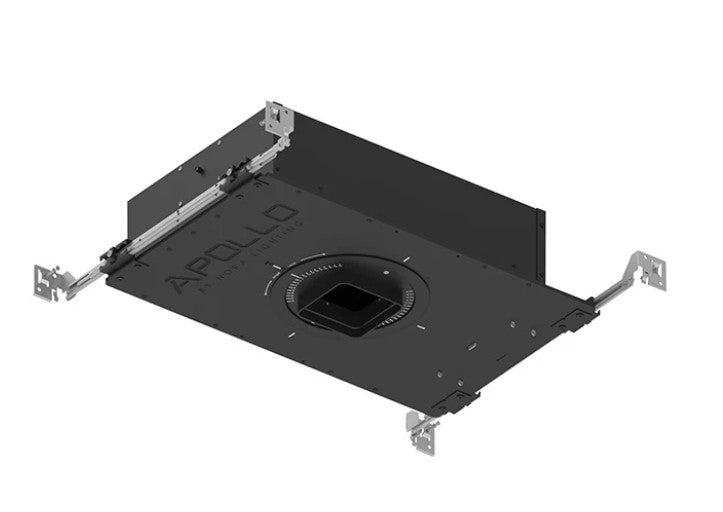

Nora Lighting NHAPIC-3S05L22725DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.5" to 0.875" Ceiling Collar, 1500lm / 15W, 2700K, Spot Optic, 120-277V; 0-10V Dimming

Product Overview

The Nora Lighting NHAPIC-3S05L22725DC is a 3-inch square IC airtight recessed housing for new construction. It is specified at 1500 lm and 15 W, with a 2700 K color temperature and spot optic.

The housing operates on 120–277 V and supports 0-10V dimming. Its ceiling collar range is 0.5 to 0.875 inches.

Key Features

• IC airtight housing can sit in direct contact with ceiling insulation
• New-construction configuration for installation before the ceiling is finished
• Spot optic shapes the beam for focused accent lighting
• 120–277 V input and 0-10V dimming
• Ceiling collar range of 0.5 to 0.875 inches

Housing Type and Construction

This Nora Lighting model is a square recessed housing for new construction, mounted before the ceiling is finished. Its IC airtight rating allows the housing to sit in direct contact with ceiling insulation.

Light Output and Spot Optic

The housing is specified at 1500 lm and 15 W, with a 2700 K color temperature. Its spot optic shapes the beam for focused accent lighting.

Voltage and Dimming

The NHAPIC-3S05L22725DC is specified for 120–277 V input and 0-10V dimming.

Ceiling Collar Fit

The ceiling collar range is 0.5 to 0.875 inches. Check that the finished ceiling thickness falls within this range.

Before You Order

Confirm that the finished ceiling thickness is within the 0.5 to 0.875-inch collar range and use a 0-10V-control dimmer rated for the load.
