Nora Lighting NHAPIC-3S05L14055DP 3" Apollo Square IC Airtight New Construction Housing w/ 0.5" to 0.875" Ceiling Collar, 1000lm / 10W, 4000K, Flood Optic, 120V; Phase Dimming
Description
Product Overview

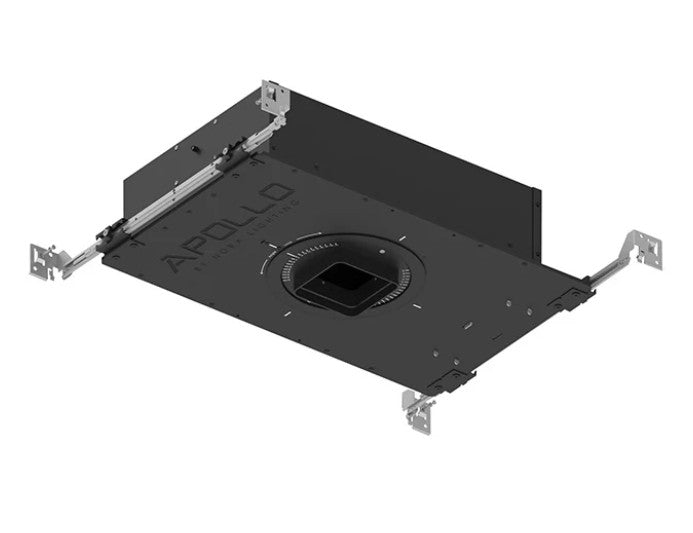

The Nora Lighting NHAPIC-3S05L14055DP is a 3-inch square recessed housing for new-construction installations. It is specified at 1000 lumens and 10 watts on 120 volts, with a 4000K color temperature and flood optic.
This IC airtight model can sit in direct contact with ceiling insulation. Its adjustable ceiling collar accommodates finished ceiling thicknesses from 0.5 to 0.875 inches.
Key Features
- 3-inch square aperture and flood optic
- 1000 lm output at 10 W, 4000K, 120 V
- IC airtight housing for direct contact with ceiling insulation
- New-construction installation configuration
- Phase dimming
- Ceiling collar range: 0.5 to 0.875 in
Light Output and Flood Optic
The NHAPIC-3S05L14055DP is specified to produce 1000 lumens at 10 watts. It has a 4000K color temperature and a flood optic for general lighting.
IC Airtight Housing
This housing is rated IC airtight and can sit in direct contact with ceiling insulation.
New-Construction Fit
The housing is designed for new-construction installation before the ceiling is finished. Its adjustable collar range is 0.5 to 0.875 inches; confirm the finished ceiling thickness falls within that range.
- Aperture: 3 inches
- Trim shape: square
Phase Dimming
The housing is specified for phase dimming. Pair it with a phase-control dimmer rated for the load.
Before You Order
Confirm the finished ceiling thickness is within the 0.5 to 0.875-inch collar range and use a phase-control dimmer rated for the load.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Nora Lighting NHAPIC-3S05L14055DP 3" Apollo Square IC Airtight New Construction Housing w/ 0.5" to 0.875" Ceiling Collar, 1000lm / 10W, 4000K, Flood Optic, 120V; Phase Dimming. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Nora Lighting |
|---|---|
| Model / SKU | NHAPIC-3S05L14055DP |
| Product Type | Recessed housing |
| Series | NHAPIC-3S0 |
| Aperture Size | 3 in |
| Trim Shape | Square |
| Lumens | 1000 lm |
| Wattage | 10 W |
| Voltage | 120 V |
| Color Temperature | 4000 K |
| Optic | Flood |
| Dimming | Phase dimming |
| Housing Rating | IC airtight |
| Construction Type | New construction |
| Ceiling Collar Range | 0.5 to 0.875 in |
