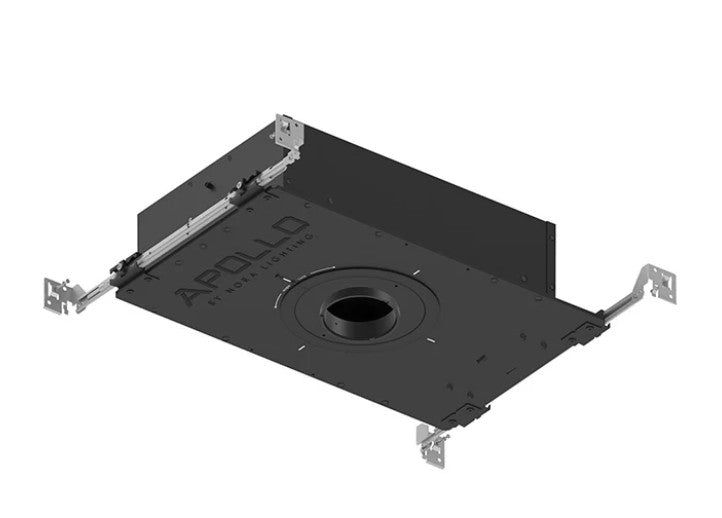

Nora Lighting NHAPIC-3S05L14055DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.5" to 0.875" Ceiling Collar, 1000lm / 10W, 4000K, Flood Optic, 120-277V; 0-10V Dimming

Product Overview

The Nora Lighting NHAPIC-3S05L14055DC is a 3-inch square new-construction recessed housing that is IC-rated and airtight. It provides 1000 lumens at 10 W, uses a flood optic, accepts 120–277 V input, and supports 0–10V dimming.

The housing includes an adjustable ceiling collar for finished ceiling thicknesses from 0.5 in to 0.875 in and is sized for tight-spacing 3" square installations.

Key Features

• 3" square aperture
• 1000 lm output at 10 W (4000 K)
• IC-rated and airtight housing
• 120–277 V multi-volt operation
• 0–10V dimming compatibility
• Flood optic
• New-construction housing with 0.5"–0.875" adjustable ceiling collar

What this housing is for

The NHAPIC-3S05L14055DC is a new-construction recessed housing intended for 3" square downlight installations where an IC-rated, airtight enclosure is required. It is suitable for general and accent recessed lighting in residential and commercial ceilings.

• New-construction installation (mount before the finished ceiling)
• IC-rated for direct contact with insulation
• Airtight housing to reduce air leakage through ceilings

Light output and optical intent

This model provides 1000 lumens at 10 W with a 4000 K color temperature. The flood optic produces a wider beam distribution intended for general area illumination or soft accenting.

• Lumen output: 1000 lm
• Power: 10 W
• Color temperature: 4000 K
• Optic: Flood

Electrical requirements and controls

The housing accepts 120–277 V input. It is designed to work with 0–10V dimming control; use a compatible 0–10V dimmer rated for the circuit load and voltage.

• Input voltage: 120–277 V
• Dimming: 0–10V control (requires compatible dimmer)

Mounting and ceiling fit

Designed for new-construction mounting, the housing installs prior to finishing the ceiling. The adjustable collar accommodates finished ceiling thicknesses within the specified range so trims can sit flush.

• Aperture: 3 in square
• Ceiling collar range: 0.5 in to 0.875 in
• Construction type: New construction

Applications and pairing guidance

Suitable for new-construction residential and commercial ceilings where IC contact with insulation and airtight performance are required. Pair the housing with compatible 3" square trims designed for the NHAPIC-3S0 series and confirm the trim selection matches the 4000 K source and flood optic as needed.

Confirm controls and dimmers are rated for 120–277 V and the fixture load.

• Typical uses: general recessed lighting, accent lighting, new-construction ceilings
• Confirm finished ceiling thickness is within the 0.5"–0.875" collar range
• Pair with 3" square trims compatible with the NHAPIC-3S0 series

Before You Order

Verify finished ceiling thickness is within the 0.5"–0.875" collar range and that you will use a compatible 3" square trim and a 0–10V dimmer rated for the circuit.

• Confirm finished ceiling thickness is 0.5"–0.875"
• Select a compatible 3" square trim for the NHAPIC-3S0 series
• Ensure any 0–10V dimmer is rated for 120–277 V and the fixture load
