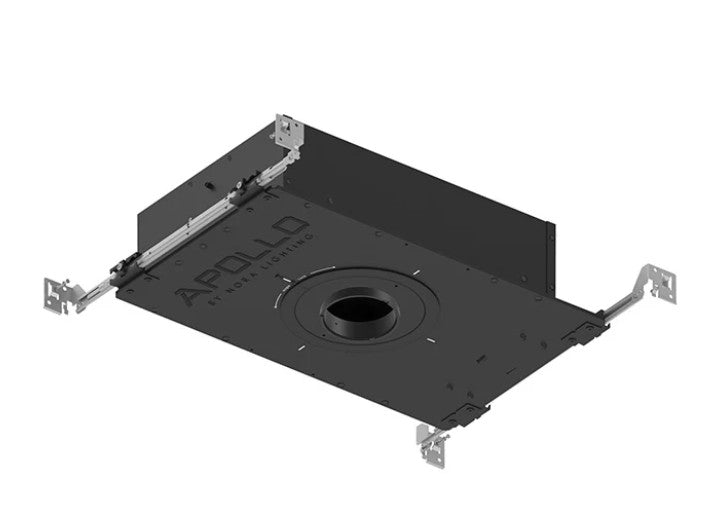

Nora Lighting NHAPIC-3S05L14025DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.5" to 0.875" Ceiling Collar, 1000lm / 10W, 4000K, Spot Optic, 120-277V; 0-10V Dimming

Product Overview

The Nora NHAPIC-3S05L14025DC is a 3-inch square new-construction recessed housing with an IC-rated airtight enclosure. It is specified to deliver 1000 lumens at 10 watts, accepts 120–277V input, and is compatible with 0–10V dimming.

The housing includes a spot optic and an adjustable ceiling collar that fits finished-ceiling thicknesses from 0.5" to 0.875".

Key Features

• 3 in square aperture
• 1000 lm output at 10 W
• Multi-voltage input: 120–277 V
• 0–10V dimming compatible
• IC-rated airtight housing
• New-construction design with 0.5"–0.875" adjustable ceiling collar
• Spot optic for a narrower beam

What this housing does

The NHAPIC-3S05L14025DC is a new-construction recessed housing intended to be installed before the ceiling finish. It provides an IC-rated, airtight enclosure for use where the housing may contact insulation.

Light output and optic

This model is specified to provide 1000 lumens while consuming 10 watts and ships with a spot optic for a focused beam suitable for accent or task lighting.

• Lumen output: 1000 lm
• Wattage: 10 W
• Optic: Spot

Voltage and dimming

The housing accepts 120–277V line voltage and is compatible with 0–10V dimming controls when paired with an appropriate 0–10V control device.

• Input voltage: 120–277 V
• Dimming: 0–10V compatible

Mounting and ceiling compatibility

Built for new-construction installations, the product includes an adjustable ceiling collar to fit finished-ceiling thicknesses between 0.5" and 0.875". Its IC airtight rating indicates suitability for installations where the housing may contact ceiling insulation.

• Construction type: New construction
• Housing rating: IC Airtight
• Ceiling collar range: 0.5 in to 0.875 in
• Trim shape: Square, 3 in aperture

Before You Order

Verify finished ceiling thickness fits the 0.5"–0.875" collar range and confirm the project uses a 0–10V control solution if dimming is required.

• Measure finished ceiling thickness to confirm collar compatibility.
• Confirm use of a 0–10V control device if dimming is needed.
