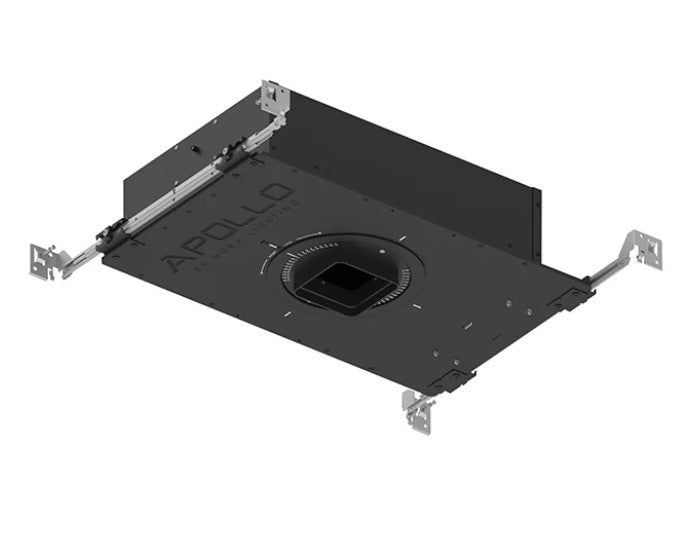

Nora Lighting NHAPIC-3S05L13555DP 3" Apollo Square IC Airtight New Construction Housing w/ 0.5" to 0.875" Ceiling Collar, 1000lm / 10W, 3500K, Flood Optic, 120V; Phase Dimming

Product Overview

The Nora Lighting NHAPIC-3S05L13555DP is a 3-inch square new-construction recessed housing with an IC Airtight rating. It produces 1000 lumens at 10 W on 120 V and uses a flood optic.

The housing includes an adjustable ceiling collar for finished-ceiling thicknesses from 0.5 in to 0.875 in and is specified for phase-control dimming compatibility.

Key Features

• IC-rated, airtight housing
• New-construction design
• 1000 lm at 10 W (120 V)
• Flood optic
• Adjustable ceiling collar: 0.5 in to 0.875 in
• Phase dimming compatibility

What this housing provides

The NHAPIC-3S05L13555DP is a 3 in square recessed housing intended for new-construction ceilings. It is specified to deliver 1000 lumens while drawing 10 W from a 120 V supply and includes a flood optic.

The product is described with an IC Airtight rating.

• Output: 1000 lm
• Power: 10 W
• Voltage: 120 V
• Optic: Flood
• Housing: IC Airtight

Recommended applications

This housing is intended for new-construction residential and commercial ceilings where a 3 in square aperture is required.

The IC rating is indicated for installations where the housing may contact insulation.

• New-construction residential ceilings
• Commercial new-construction ceilings
• Where a compact 3 in square aperture is needed

Dimming and electrical

The model is specified for 120 V operation and phase-control dimming compatibility. Use a phase-control dimmer rated for the connected load.

Confirm the circuit and dimmer ratings against the total load of fixtures on the circuit.

• Dimming type: Phase dimming
• Supply voltage: 120 V

Mounting and installation details

The housing is designed for new-construction installation (installed before the ceiling finish). The ceiling collar is adjustable to accommodate finished-ceiling thicknesses within the specified 0.5 in to 0.875 in range.

Verify finished-ceiling thickness during planning to ensure the collar range is suitable.

• Construction type: New construction
• Ceiling collar range: 0.5 in to 0.875 in
• Aperture: 3 in square

Technical specifications

Key specifications for ordering and planning are listed below.

• Model / SKU: NHAPIC-3S05L13555DP
• Brand: Nora Lighting
• Product series: NHAPIC-3S0
• Trim shape: Square
• Lumens: 1000 lm
• Wattage: 10 W
• Color temperature: 3500 K
• Optic: Flood
• Housing rating: IC Airtight
• Construction type: New Construction
• Ceiling collar range: 0.5 in to 0.875 in

Before You Order

Verify finished-ceiling thickness is within the 0.5 in to 0.875 in collar range and that your dimmer is a phase-control type rated for the load.

• Verify finished-ceiling thickness (0.5 in–0.875 in)
• Confirm phase dimmer compatibility and circuit load capacity
