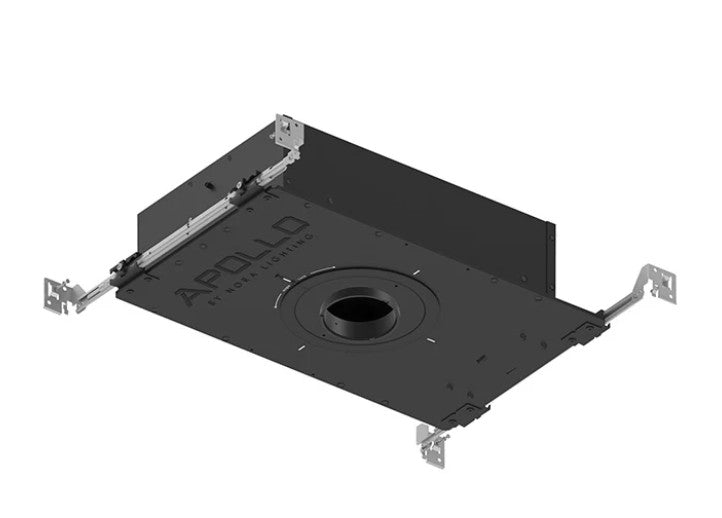

Nora Lighting NHAPIC-3S05L13555DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.5" to 0.875" Ceiling Collar, 1000lm / 10W, 3500K, Flood Optic, 120-277V; 0-10V Dimming

Product Overview

The Nora Lighting NHAPIC-3S05L13555DC is a 3-inch square recessed housing for new-construction ceiling installations. It is IC airtight and has a flood optic.

This model is specified for 1000 lm at 10 W, with 3500 K color temperature and 120-277 V input. It supports 0-10V dimming.

Key Features

• 3-inch square aperture with flood optic
• IC airtight housing
• New-construction configuration
• Ceiling collar range of 0.5 to 0.875 inches
• 120-277 V input and 0-10V dimming

New-Construction Recessed Housing

The NHAPIC-3S05L13555DC is a 3-inch square housing for new-construction installation before the ceiling is finished.

Output, Color Temperature and Flood Optic

This model is specified at 1000 lm and 10 W, with a 3500 K color temperature and a flood optic.

Voltage and 0-10V Dimming

The housing has a 120-277 V input and supports 0-10V dimming. Use a 0-10V control dimmer rated for the load.

IC Airtight Rating and Ceiling Collar Range

The housing is IC airtight and can sit in direct contact with ceiling insulation. Its adjustable collar range is 0.5 to 0.875 inches for finished-ceiling thickness.

Before You Order

Confirm that the finished ceiling thickness is within the 0.5 in to 0.875 in collar range.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Nora Lighting NHAPIC-3S05L13555DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.5" to 0.875" Ceiling Collar, 1000lm / 10W, 3500K, Flood Optic, 120-277V; 0-10V Dimming. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
