Nora Lighting NHAPIC-3S05L13540DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.5" to 0.875" Ceiling Collar, 1000lm / 10W, 3500K, Narrow Flood Optic, 120-277V; 0-10V Dimming

Product Overview

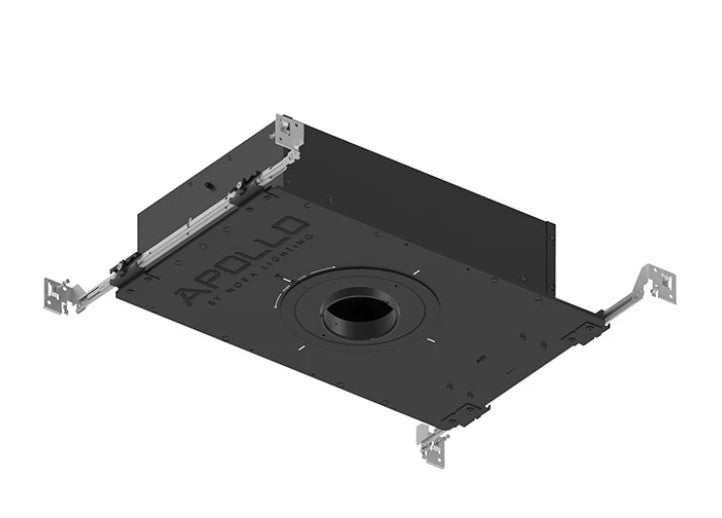

Nora Lighting NHAPIC-3S05L13540DC is a 3" square new‑construction recessed housing rated IC and airtight. It is specified at 1000 lumens and 10 W, with a nominal 3500 K color temperature, multi‑volt (120–277 V) input, and 0–10V dimming compatibility.

Includes a Narrow Flood optic and an adjustable ceiling collar that accommodates finished ceiling thicknesses from 0.5" to 0.875".

Key Features

• 3 in square aperture
• 1000 lm at 10 W, 3500 K
• 120–277 V input
• 0–10V dimming compatibility
• IC‑rated and airtight
• Adjustable ceiling collar: 0.5"–0.875"
• Narrow Flood optic

Function & Intended Use

The NHAPIC-3S05L13540DC is a new‑construction recessed housing designed to be installed before the ceiling is finished. It accepts a 3" square aperture trim and is intended for recessed lighting in residential and commercial ceilings.

• New‑construction housing for installation prior to finishing the ceiling
• IC‑rated for contact with ceiling insulation
• Airtight housing to limit airflow through the ceiling assembly

Light Output & Performance

Specified output is 1000 lumens at 10 watts with a nominal color temperature of 3500 K. The included Narrow Flood optic provides a concentrated beam distribution suitable for accenting or focused illumination.

• Rated output: 1000 lm
• Power: 10 W
• Color temperature: 3500 K
• Optic: Narrow Flood

Electrical Compatibility & Dimming

The housing supports multi‑volt operation (120–277 V) and is compatible with 0–10V control systems for continuous dimming when used with a compatible 0–10V dimmer.

• Input voltage: 120–277 V
• Dimming: 0–10V control (requires compatible 0–10V dimmer)

Mounting & Installation Details

Designed for new‑construction mounting, the housing includes an adjustable ceiling collar to match finished ceiling thicknesses. It is IC‑rated and described as airtight.

• Construction type: New Construction
• Ceiling collar adjustment range: 0.5 in to 0.875 in
• Housing rating: IC Airtight

Applications & Typical Uses

Common uses include new‑construction residential and commercial ceilings, general recessed illumination, and accent lighting where a compact 3" square aperture is required.

• New‑construction residential ceilings
• Commercial ceilings supplied by 120–277 V circuits
• Accent lighting and tight‑spacing layouts

Before You Order

Verify finished ceiling thickness falls within the 0.5" to 0.875" collar range.

• Check finished ceiling thickness (0.5"–0.875")

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Nora Lighting NHAPIC-3S05L13540DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.5" to 0.875" Ceiling Collar, 1000lm / 10W, 3500K, Narrow Flood Optic, 120-277V; 0-10V Dimming. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
