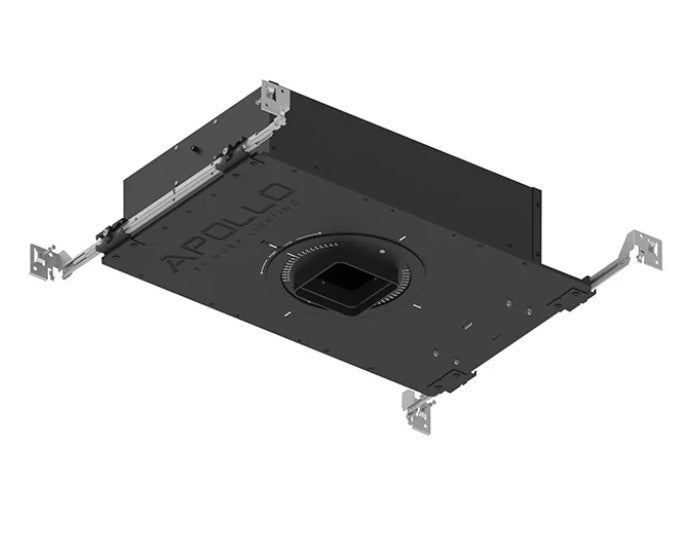

Nora Lighting NHAPIC-3S05L13055DP 3" Apollo Square IC Airtight New Construction Housing w/ 0.5" to 0.875" Ceiling Collar, 1000lm / 10W, 3000K, Flood Optic, 120V; Phase Dimming

Product Overview

The Nora Lighting NHAPIC-3S05L13055DP is a 3-inch square recessed housing for new-construction ceilings. It is IC airtight and specified for 1000 lm at 10 W on 120 V, with a 3000 K color temperature and flood optic.

The housing supports phase dimming and has an adjustable ceiling collar for finished ceiling thicknesses from 0.5 to 0.875 in.

Key Features

• 3-inch square aperture with flood optic
• IC airtight housing for direct contact with ceiling insulation
• New-construction configuration
• 1000 lm output at 10 W on 120 V
• 3000 K color temperature and phase dimming
• Ceiling collar range: 0.5 to 0.875 in

Output, Color and Optic

The NHAPIC-3S05L13055DP is specified for 1000 lm at 10 W on 120 V. Its 3000 K color temperature and flood optic define the listed light configuration.

IC Airtight New-Construction Housing

This housing is designed for new-construction installation, with mounting before the ceiling is finished. Its IC rating allows direct contact with ceiling insulation.

• The adjustable collar accommodates finished ceiling thicknesses from 0.5 to 0.875 in.
• The aperture is 3 in and square.

Phase Dimming

The housing is specified for phase dimming. Pair it with a phase-control dimmer rated for the load.

Before You Order

Confirm that the finished ceiling thickness is within the 0.5 to 0.875 in collar range and that the selected phase-control dimmer is rated for the load.
