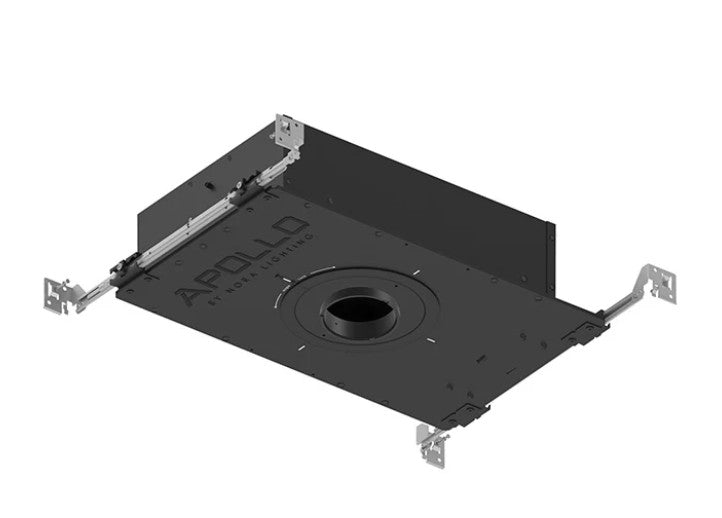

Nora Lighting NHAPIC-3S05L13055DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.5" to 0.875" Ceiling Collar, 1000lm / 10W, 3000K, Flood Optic, 120-277V; 0-10V Dimming

Product Overview

The Nora Lighting NHAPIC-3S05L13055DC is a 3-inch square new-construction recessed housing designed for IC-rated ceilings. It is specified to deliver 1000 lumens at 10 W and accepts 120–277V input with 0–10V dimming control.

The housing includes an adjustable 0.5"–0.875" ceiling collar and a flood optic for general lighting. It is intended for installation before the ceiling finish and is rated IC airtight.

Key Features

• 3 in square aperture
• 1000 lm output at 10 W (3000 K)
• 120–277 V input
• 0–10V dimming
• IC-rated airtight housing
• Adjustable ceiling collar: 0.5" to 0.875"
• Flood optic

Function & Intended Use

The NHAPIC-3S05L13055DC is a new-construction recessed housing with a 3" square aperture. It is designed to be installed prior to the finished ceiling and to accept compatible 3" square trims and light modules intended for the NHAPIC-3S0 series.

Light Output & Performance

This housing is specified with a 1000 lm output while drawing 10 W, at a nominal 3000 K color temperature. The flood optic is provided to shape the beam for general illumination.

• Rated output: 1000 lm at 10 W
• Color temperature: 3000 K
• Optic: Flood

Voltage & Dimming Compatibility

The product accepts 120–277 V input and is compatible with 0–10V dimming control. Use a 0–10V-rated control device sized appropriately for the total connected load.

• Input voltage: 120–277 V
• Dimming: 0–10V

Mounting & Ceiling Compatibility

The housing is IC-rated and described as airtight. It is intended for new-construction installations and includes an adjustable ceiling collar to accommodate finished-ceiling thickness between 0.5" and 0.875".

• Construction type: New construction
• Housing rating: IC Airtight
• Ceiling collar range: 0.5" to 0.875"

Typical Applications

Common uses include new-construction residential and commercial ceilings for general recessed lighting and downlighting where a compact square aperture is required.

• New-construction residential and commercial ceilings
• General and accent recessed lighting

Before You Order

Verify finished ceiling thickness falls within the 0.5" to 0.875" collar range.

• Confirm model number and quantity
• Confirm finished ceiling thickness (0.5"–0.875")
• Ensure wiring supports 120–277 V input
• Select compatible 3" square trim and light module for the NHAPIC-3S0 series
