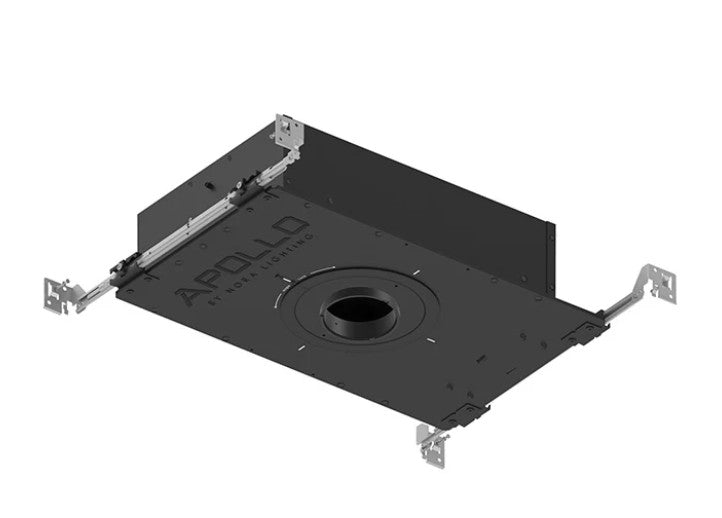

Nora Lighting NHAPIC-3S05L13040DC 3" Apollo Square IC Airtight New Construction Housing w/ 0.5" to 0.875" Ceiling Collar, 1000lm / 10W, 3000K, Narrow Flood Optic, 120-277V; 0-10V Dimming

Product Overview

The Nora Lighting NHAPIC-3S05L13040DC is a 3" square new-construction recessed housing rated IC airtight for contact with ceiling insulation. It delivers 1000 lumens at 10 W, has a Narrow Flood optic, and accepts 120–277 V input with 0–10V dimming compatibility.

Includes an adjustable ceiling collar that accommodates finished ceiling thicknesses from 0.5 in to 0.875 in.

Key Features

• 3 in square aperture
• 1000 lm output at 10 W (3000 K)
• IC-rated airtight housing
• 120–277 V input
• 0–10V dimming compatibility
• Narrow Flood optic
• Adjustable ceiling collar: 0.5" to 0.875" finished thickness
• Designed for new-construction installation

What this housing does

The NHAPIC-3S05L13040DC is a 3" square new-construction recessed housing that provides 1000 lumens while consuming 10 W. The Narrow Flood optic narrows the beam for more focused accent or task illumination.

• Aperture: 3 in square
• Light output: 1000 lm at 10 W
• Optic: Narrow Flood

Recommended applications

Suitable for new-construction residential and commercial ceilings where a compact square recessed housing with a focused beam is needed.

• New-construction ceilings
• Accent and task recessed lighting

Electrical and dimming

Accepts 120–277 V input. The housing is compatible with 0–10V dimming controls; use a dimmer rated for the fixture load and wired per local electrical code and dimmer manufacturer guidance.

• Input voltage: 120–277 V
• Dimming: 0–10V compatible (requires compatible dimmer)

Mounting and ceiling compatibility

Intended for new-construction installation and rated IC airtight for contact with insulation. Verify finished ceiling thickness is within the adjustable collar range before installation.

• Installation: new construction (installed before ceiling finish)
• Housing rating: IC Airtight
• Ceiling collar adjustment: 0.5 in to 0.875 in finished thickness

Key technical specifications

Summary of the measurable specifications for this SKU.

• Model / SKU: NHAPIC-3S05L13040DC
• Brand: Nora Lighting
• Lumens: 1000 lm
• Wattage: 10 W
• Color temperature: 3000 K
• Aperture: 3 in
• Optic: Narrow Flood
• Voltage: 120–277 V
• Dimming: 0–10V
• Housing rating: IC Airtight
• Trim shape: Square

Before You Order

Verify finished ceiling thickness is within the 0.5 in to 0.875 in collar range and that you have a compatible 0–10V dimmer and the correct supply voltage for your circuit.

• Confirm finished ceiling thickness: 0.5"–0.875"
• Verify 0–10V dimmer compatibility and rating
• Check supply voltage: 120–277 V
