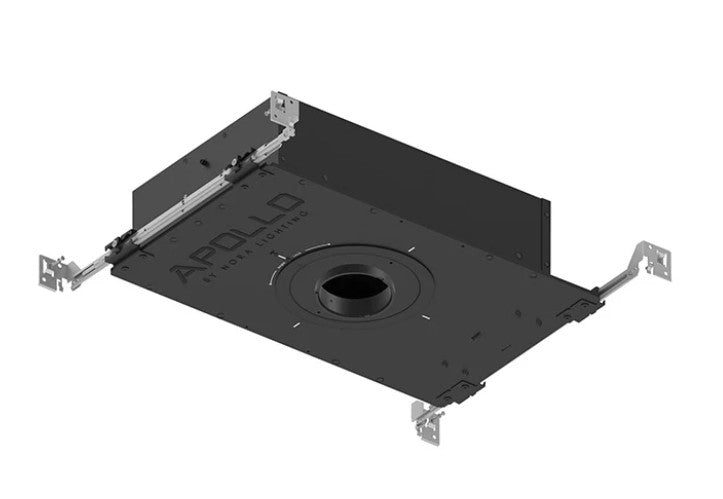

Nora Lighting NHAPIC-3R10L14040DP 3" Apollo Round IC Airtight New Construction Housing w/ 0.875" to 1.25" Ceiling Collar, 1000lm / 10W, 4000K, Narrow Flood Optic, 120V; Phase Dimming

Product Overview

The Nora Lighting NHAPIC-3R10L14040DP is a 3" round new-construction recessed housing designed for IC‑rated installations. It delivers 1000 lumens at 10 W (120 V) with a 4000 K color temperature and a narrow flood optic for focused accent or general lighting.

This housing is airtight for contact with ceiling insulation, accepts a 0.875"–1.25" finished-ceiling collar, and is built for use with phase-control dimmers for smooth light-level adjustment.

Key Features

• IC-rated, airtight housing suitable for direct contact with insulation
• New-construction design for installation before ceiling finishes
• 3" round aperture for tight-spacing layouts and compact installations
• 1000 lm output at 10 W (120 V) with 4000 K color temperature
• Narrow Flood optic for focused beam shaping
• Adjustable ceiling collar fits 0.875" to 1.25" finished-thickness
• Compatible with phase dimming controls

Function and Intended Use

The NHAPIC-3R10L14040DP is a purpose-built new-construction recessed housing for 3" round apertures. It is intended for residential and commercial ceilings where an IC‑rated, airtight housing is required and where compact fixture spacing or small aperture aesthetics are desired.

• Designed for new-construction installations (installed before ceiling finish)
• Suitable for general and accent recessed lighting applications

Light Output and Optical Performance

This housing provides an integrated light source specification of 1000 lumens at 10 watts on 120 V, with a nominal color temperature of 4000 K. The supplied optic is a Narrow Flood to concentrate output for focused illumination or accenting.

• Lumen output: 1000 lm
• Power: 10 W (120 V)
• Color temperature: 4000 K
• Optic: Narrow Flood for a tighter beam

Installation and Compatibility Notes

Installers should confirm finished-ceiling thickness is compatible with the adjustable collar and pair the housing with a compatible phase-control dimmer rated for the circuit load.

• Ceiling collar adjustment range: 0.875 in to 1.25 in
• Dimming: Phase dimming—use a phase-control dimmer rated for the load

Mechanical and Mounting Details

The housing has a 3" round aperture and is IC‑rated and airtight, permitting direct contact with ceiling insulation. Its compact form factor supports installations where smaller trim sizes and tighter spacing are needed.

• Aperture size: 3 in (round)
• Housing rating: IC Airtight
• Construction type: New Construction

Before You Order

Confirm the model number and required quantity before ordering. Verify finished-ceiling thickness falls within the 0.875 in to 1.25 in collar range and ensure you will use a phase-control dimmer rated for the fixture load.

• Model: NHAPIC-3R10L14040DP
• Confirm ceiling thickness: 0.875 in–1.25 in
• Specify compatible phase dimmer for 120 V circuit
