MW Lighting MTFS24-30/40/50W-3CCT 30/40/50W Selectable Troffer 3-CCT Selectable

Product Overview

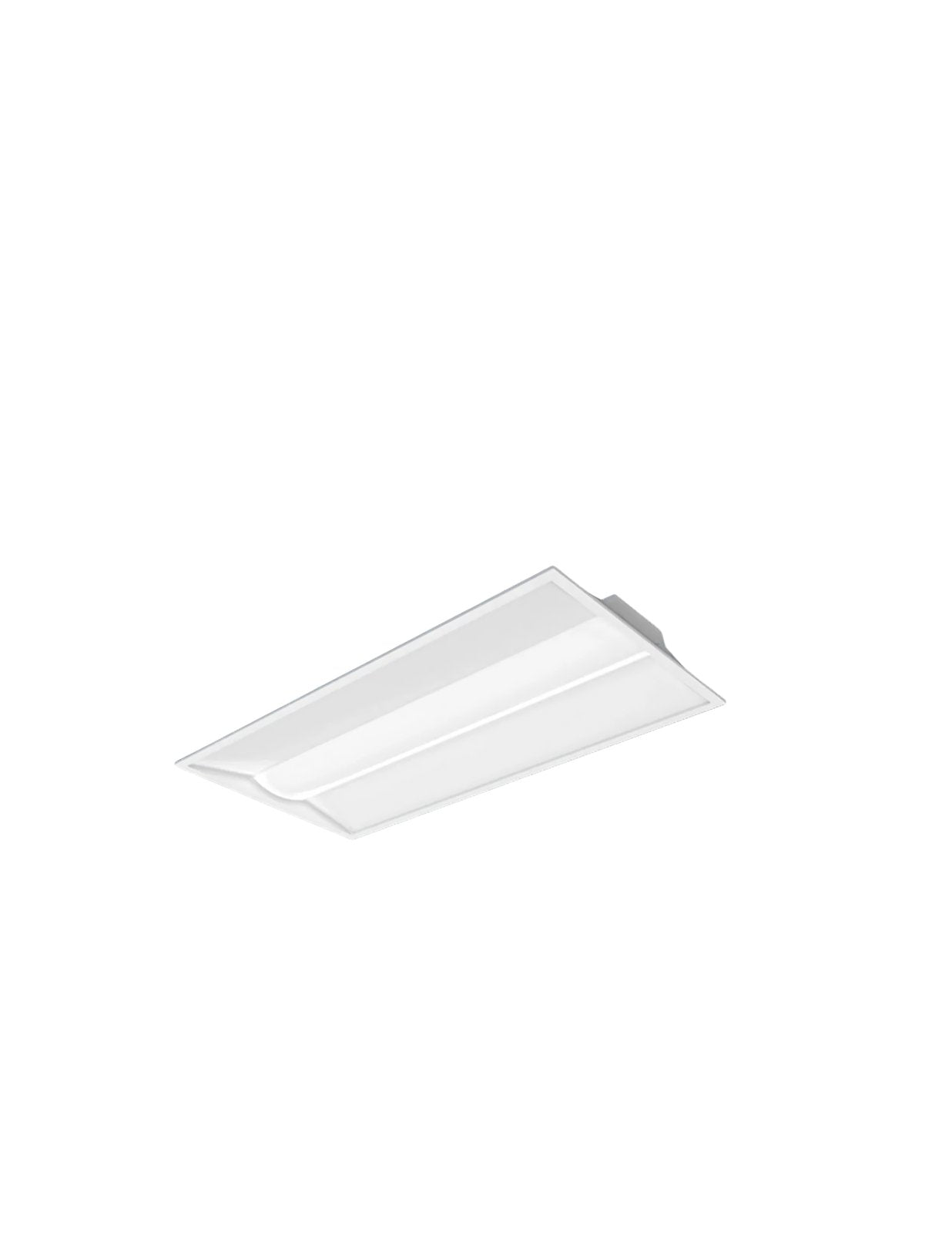

The MW Lighting MTFS24-30/40/50W-3CCT is a 2x4 LED troffer with field-selectable wattage (30/40/50W) and color temperature (3500K, 4000K, 5000K). It delivers 3,750 / 5,000 / 6,250 lumens respectively and is designed for drop-ceiling retrofit or new construction in commercial interiors.

The fixture operates on universal 120–277V, supports 0-10V dimming, and carries ETL and DLC listings for code and rebate eligibility.

Key Features

• Field-selectable wattage: 30W, 40W, 50W (one SKU covers three outputs)
• Field-selectable color temperature: 3500K, 4000K, 5000K
• Lumen outputs: 3,750 lm (30W) | 5,000 lm (40W) | 6,250 lm (50W)
• Universal input voltage: 120–277V
• Dimming: 0-10V control compatible
• Color rendering: 80+ CRI
• Listings: ETL listed and DLC qualified
• Fits standard 2x2 and 2x4 ceiling grids as a fluorescent troffer replacement

Function and use case

The MTFS24-30/40/50W-3CCT is a 2x4 LED troffer designed for general ambient lighting in commercial interiors. It replaces fluorescent troffers in drop-ceiling (lay-in) 2x2 and 2x4 grids and is suitable for offices, schools, healthcare spaces, and other institutional environments.

Performance — lumen output and color options

This SKU provides three selectable lumen and wattage settings so a single fixture can be adjusted on site to match target light levels and energy budgets.

• Wattage settings: 30W | 40W | 50W
• Delivered lumens: 3,750 lm (30W), 5,000 lm (40W), 6,250 lm (50W)
• Selectable color temperatures: 3500K, 4000K, 5000K
• Color rendering: 80+ CRI

Electrical requirements and controls

The fixture accepts universal line voltage and integrates with common commercial dimming controls.

• Input voltage: 120–277V
• Dimming: 0-10V control compatible — use a compatible 0-10V control or lighting-control system for dimming

Mounting and installation considerations

The troffer is intended for lay-in installation in standard ceiling grids or as a direct fluorescent replacement. Verify the ceiling grid footprint prior to installation.

• Size: 2x4 troffer designed to drop into 2x2 and 2x4 grids
• Field selection: Wattage and CCT are set in the field — select desired settings during installation

Certifications and eligibility

This product carries third-party listings that support code compliance and utility rebate programs.

• ETL listed
• DLC qualified

Before You Order

Confirm the model number and quantity required before ordering. Verify your ceiling grid type and the required lumen/CCT settings for each space so fixtures can be set appropriately at installation.

• Confirm footprint compatibility with your 2x2 or 2x4 ceiling grid.
• Decide which wattage and CCT settings you require (30/40/50W and 3500K/4000K/5000K are field-selectable).
• Plan for 0-10V dimming control wiring if dimming is required.
