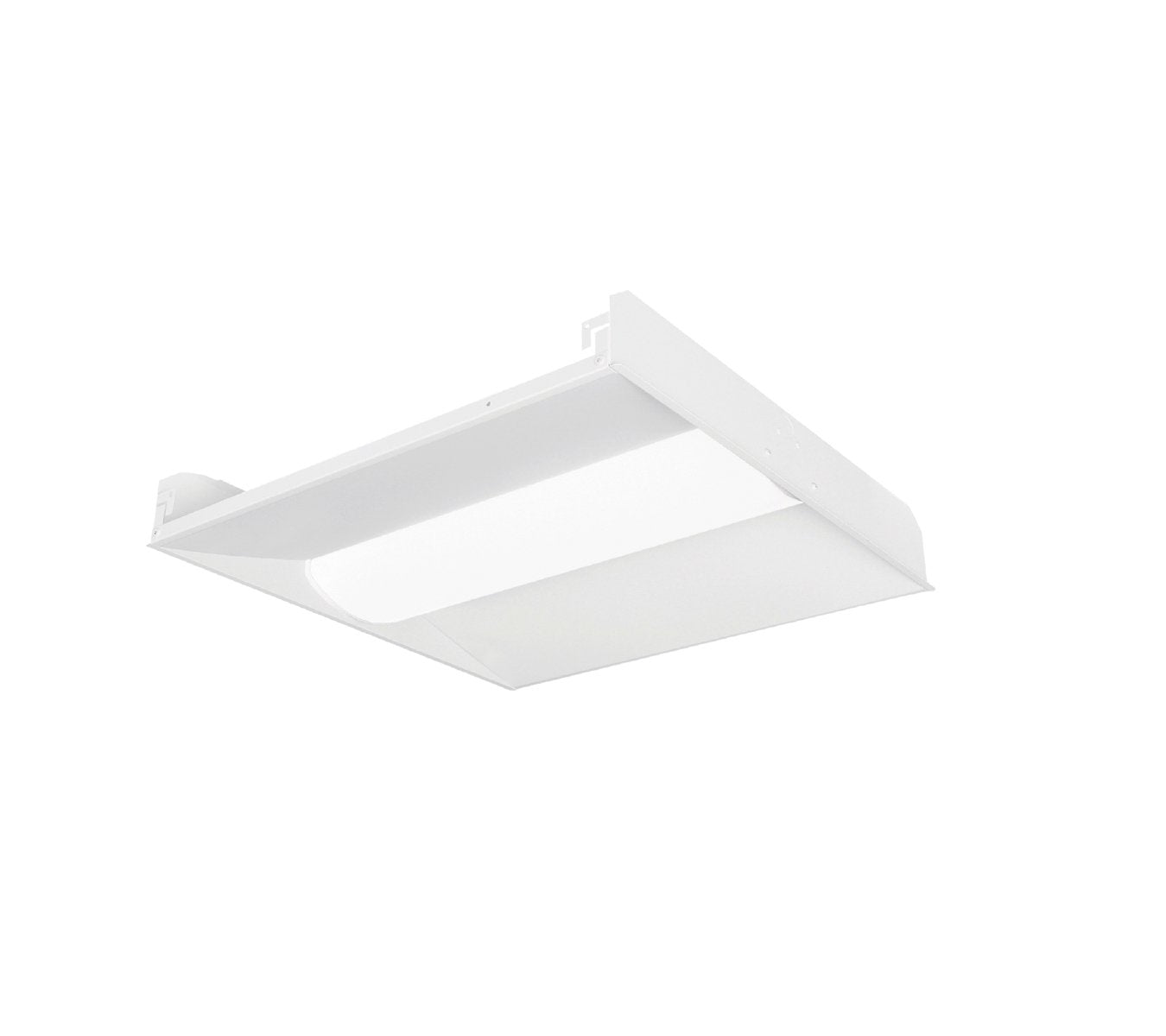

MW Lighting MTF22-30/35/40W-3CCT 30/35/40W Selectable Troffer 3-CCT Selectable

Product Overview

The MW Lighting MTF22-30/35/40W-3CCT is a 2x2 LED troffer designed for drop-ceiling fluorescent replacement in commercial interiors. One field‑configurable unit provides selectable wattage (30/35/40W) and selectable color temperature (3500K, 4000K, 5000K).

Performance ranges: 3,750 lm at 30W, 4,375 lm at 35W, and 5,000 lm at 40W. The fixture operates on universal 120–277V input, supports 0–10V dimming, and carries ETL and DLC listings.

Key Features

• Field-selectable wattage: 30W / 35W / 40W to tune output on site
• Field-selectable CCT: 3500K / 4000K / 5000K
• Lumen output: 3,750 / 4,375 / 5,000 lm depending on wattage setting
• Universal 120–277V input for broad electrical compatibility
• 0–10V dimming for integration with commercial controls
• 80+ CRI for accurate color rendering
• ETL and DLC listings for code compliance and rebate eligibility
• Designed for 2x2 and 2x4 ceiling grids as a fluorescent replacement

What this troffer does

Direct-answer: The MTF22-30/35/40W-3CCT is a commercial 2x2 LED troffer intended as a drop-ceiling fluorescent replacement to provide general ambient lighting in offices, schools, healthcare spaces, and similar interiors.

The fixture’s selectable wattage and color temperature let one SKU cover multiple output and CCT requirements on site, reducing inventory variations.

• Form factor: 2x2 troffer suitable for standard suspended ceiling grids
• Use case: General ambient and task illumination where even ceiling lighting is required

Light output and selectable performance

Direct-answer: Lumen and wattage are field-selectable to match target light levels and energy use.

Use the selectable settings to choose the desired balance of output and power draw at installation.

• Wattage options: 30W / 35W / 40W
• Lumen output by setting: 3,750 lm (30W), 4,375 lm (35W), 5,000 lm (40W)
• Color temperature: 3500K, 4000K, or 5000K selectable (single unit configurable)

Voltage, dimming and controls

Direct-answer: The fixture accepts universal 120–277V AC input and supports 0–10V analog dimming for integration with standard commercial lighting controls.

Confirm use of a compatible 0–10V control or ballast replacement method when planning dimming or occupancy/ daylighting control integration.

• Voltage: 120–277V
• Dimming: 0–10V analog control

Typical applications and installation notes

Direct-answer: This troffer is intended for drop-ceiling installations and as a direct fluorescent troffer replacement in 2x2 and 2x4 grids.

Verify ceiling grid dimensions, mounting method, and access to 0–10V control wiring before ordering and installation.

• Common installations: offices, classrooms, healthcare corridors and general commercial interiors
• Mounting: drop-in for standard 2x2 ceiling grid openings; confirm footprint before installation

Certifications and compliance

Direct-answer: The MTF22-30/35/40W-3CCT is listed with ETL and qualified by DLC, supporting code compliance and typical rebate programs.

Use the ETL and DLC listings as part of project documentation when applying for incentives or verifying code acceptance.

• Listings: ETL, DLC
• CRI: 80+

Before You Order

Confirm the exact model number and quantity required before ordering. Verify ceiling-grid compatibility and whether 0–10V control wiring is available for your project.

• Confirm ceiling opening and troffer footprint (designed for 2x2 grid)
• Determine which wattage and CCT settings you will program at installation
• If dimming is required, ensure a compatible 0–10V control system is specified
