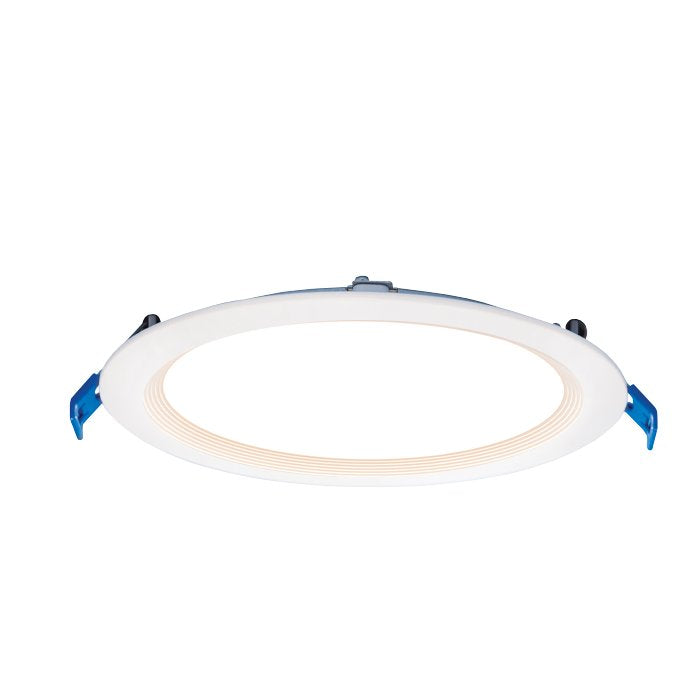

MW Lighting MRSD818WBA-5CCT-347V 18W Canless Downlight 5-CCT Selectable

Product Overview

The MW Lighting MRSD818WBA-5CCT-347V is an 8-inch canless LED downlight that delivers 1,500 lumens at 18W with a field-selectable color temperature range of 2700K–5000K.

Designed for recessed ceiling installations in residential and light-commercial spaces, this model supports 120–347V input and 0–10V dimming. It carries ETL, ENERGY STAR, and Title 24 (JA8) listings.

Key Features

• 18W LED output producing 1,500 lumens
• Field-selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
• High color fidelity with 90+ CRI
• Wide input voltage: 120–347V
• 0–10V dimming for integration with commercial controls
• Canless recessed design for a flush ceiling aperture
• Certifications: ETL, ENERGY STAR, Title 24 (JA8)

What this fixture does

The MRSD818WBA-5CCT-347V is a canless recessed downlight intended for general and task downlighting in residential and light-commercial ceilings. Its recessed form factor produces a clean, flush aperture without a separate housing.

Light output and color

This model produces 1,500 lumens while consuming 18 watts. It offers a field-selectable color temperature switch with five settings to match different spaces and design preferences.

• Lumen output: 1,500 lm at 18W
• Selectable CCT options: 2700K, 3000K, 3500K, 4000K, 5000K
• Color rendering: 90+ CRI

Voltage and dimming compatibility

The downlight accepts a wide input voltage range and integrates with common commercial dimming controls.

• Input voltage: 120–347V
• Dimming: 0–10V control (requires a 0–10V dimmer or control system rated for LED loads)

Form factor and installation notes

The unit is an 8-inch canless downlight designed to seat into the ceiling without a separate can. Confirm the ceiling aperture and rough-in opening match the fixture's intended 8-inch size before installation.

• Size: 8 in (aperture/trim intended for 8-inch openings)
• Canless recessed design for remodel or new-construction applications

Listings and compliance

This model is listed for common energy and electrical programs used in commercial and residential specifications.

• Certifications: ETL, ENERGY STAR, Title 24 (JA8)

Before You Order

Confirm the model number and the ceiling aperture/rough-in opening match the 8-inch canless downlight before ordering. Verify your dimming control is a 0–10V device rated for LED loads.

• Confirm MRSD818WBA-5CCT-347V is the required SKU.
• Confirm ceiling opening and trim size compatibility for an 8-inch canless fixture.
• Pair with a 0–10V dimmer or control system rated for LED.
