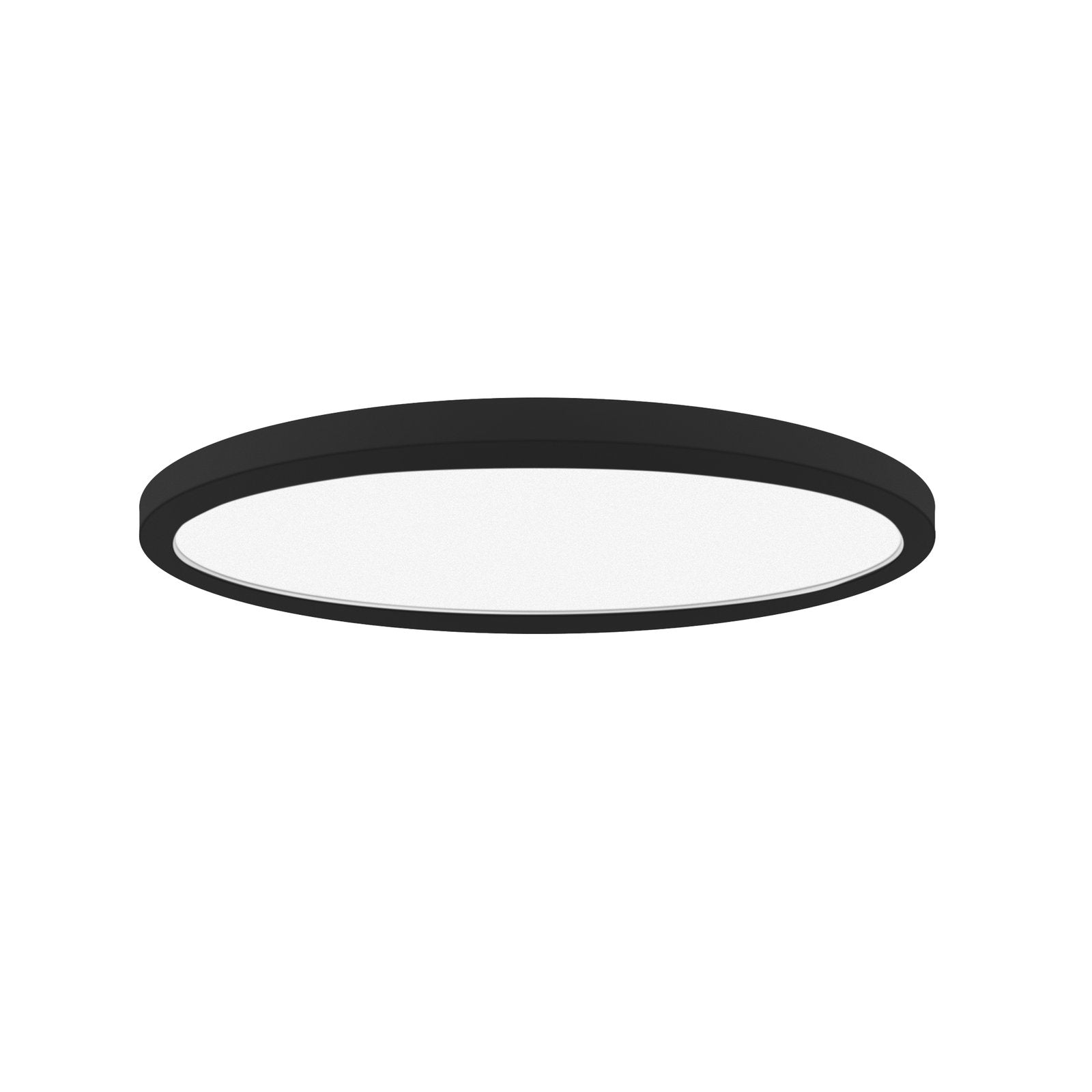

MW Lighting MRFM714-5CCT-BK 14W Surface Mount Light 5-CCT Selectable Black

Product Overview

The MW Lighting MRFM714-5CCT-BK is a low-profile 14W LED surface mount ceiling fixture that delivers 840 lumens and field-selectable color temperatures (2700K / 3000K / 3500K / 4000K / 5000K).

Designed for applications with limited plenum depth, it offers 90+ CRI, TRIAC forward-phase dimming compatibility with standard residential dimmers, and an ETL listing for code-compliant installations.

Key Features

• 14W power consumption producing 840 lm (nominal)
• Field-selectable 5-CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• High color rendering: 90+ CRI
• TRIAC forward-phase dimming compatible
• Low-profile housing for limited plenum depth
• Black finish; ETL listed
• 120V operation

Function and intended use

The MRFM714-5CCT-BK is a general-purpose surface-mounted ceiling light intended for offices, corridors, residential rooms, and other spaces that require low-profile ambient illumination. Its compact housing is suited to ceilings where plenum depth is limited and a surface-mounted solution is preferred over recessed fixtures.

• Typical applications: offices, corridors, residential rooms, retrofit of older fluorescent fixtures
• Finish: Black — suited to modern and accent ceiling designs

Light output and color performance

This fixture produces 840 lumens from a 14W LED source and offers a high color-rendering index to preserve material and skin tones.

• Lumen output: 840 lm at 14W
• Color temperature: Field-selectable 2700K / 3000K / 3500K / 4000K / 5000K
• CRI: 90+ for accurate color rendering

Dimming and controls

The MRFM714-5CCT-BK supports TRIAC forward-phase dimming and is compatible with standard residential wall dimmers that use forward-phase control. Use a TRIAC control for dimming functionality.

• Dimming type: TRIAC (forward-phase)
• Recommended: standard residential TRIAC wall dimmers

Mounting and installation considerations

This product is a surface-mount ceiling fixture with a low-profile housing. Confirm the fixture footprint and available ceiling area before installation. The fixture is intended for 120V line-voltage connections.

• Mounting: Surface ceiling mount (low-profile housing)
• Voltage: 120V
• ETL listed — suitable for code-compliant installations

Before You Order

Confirm the model number and the quantity required before ordering. Verify the ceiling location has sufficient surface area and that a 120V supply and a compatible TRIAC dimmer (if dimming is desired) are available.

• Confirm MRFM714-5CCT-BK matches the required finish and lumen output for your project.
• Measure ceiling clearance to ensure the low-profile housing fits the intended mounting location.
• If dimming is required, use a TRIAC forward-phase wall dimmer; compatibility with specific dimmer models is not provided.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for MW Lighting MRFM714-5CCT-BK 14W Surface Mount Light 5-CCT Selectable Black. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
